Honeywell NetAXS User Manual

Configuring via the Web Server
Maintaining Cards
NetAXS™ Access Control Unit User’s Guide, Document 800-00233, Revision A 2-39
2.6.2 Displaying and Modifying Cards
Use this function to display specified cards and modify them.
Click
Cards > Card Data to display the search screen with which you can find and
display specified cards.

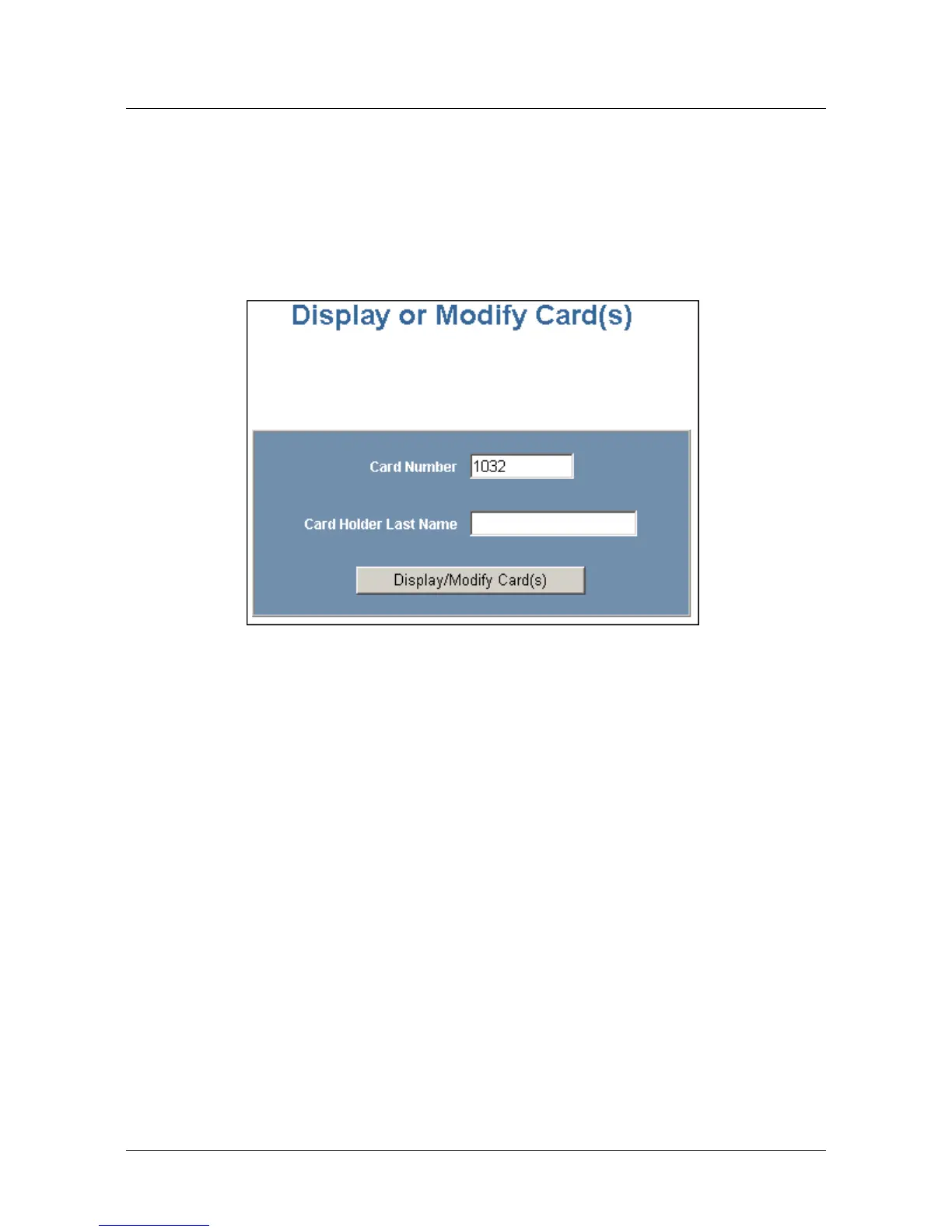

Figure 2-15: Cards > Card Data
The Display or Modify Card(s) screen enables you to:
• Display cards by searching on any of the following keys:
– Card number
– Card holder’s last name
• Modify the displayed card(s)
Steps:
1. Enter a value for either of the search keys (card number or cardholder last
name).
2. Click the Display/Modify Card(s) button. The cards specified in step 1 appear.
3. Use the field descriptions given in the table in “Adding New Cards“ on page
36 to complete the card fields and click
Submit Modification(s):

Honeywell NetAXS Specifications

General

Category	Control Unit
Max. Number of Doors	4
Max. Number of Readers	8
Inputs	8
Outputs	4
Users	10, 000
Transaction Buffer	50, 000
Operating Voltage	12-24 VDC
Network Interface	10/100 Mbps Ethernet
Reader Technology	Magnetic Stripe, Barcode, Proximity, Smart Card
Communication	TCP/IP, RS-485
Humidity	5% to 85% RH, non-condensing
Weight	3.5 lbs
Certifications	UL294, CE, FCC
Dimensions	165 mm x 140 mm x 40 mm (6.5" x 5.5" x 1.6")
