30 NFS2-3030 Programming Manual — P/N 52545:A 11/29/2005
Program Panel Program

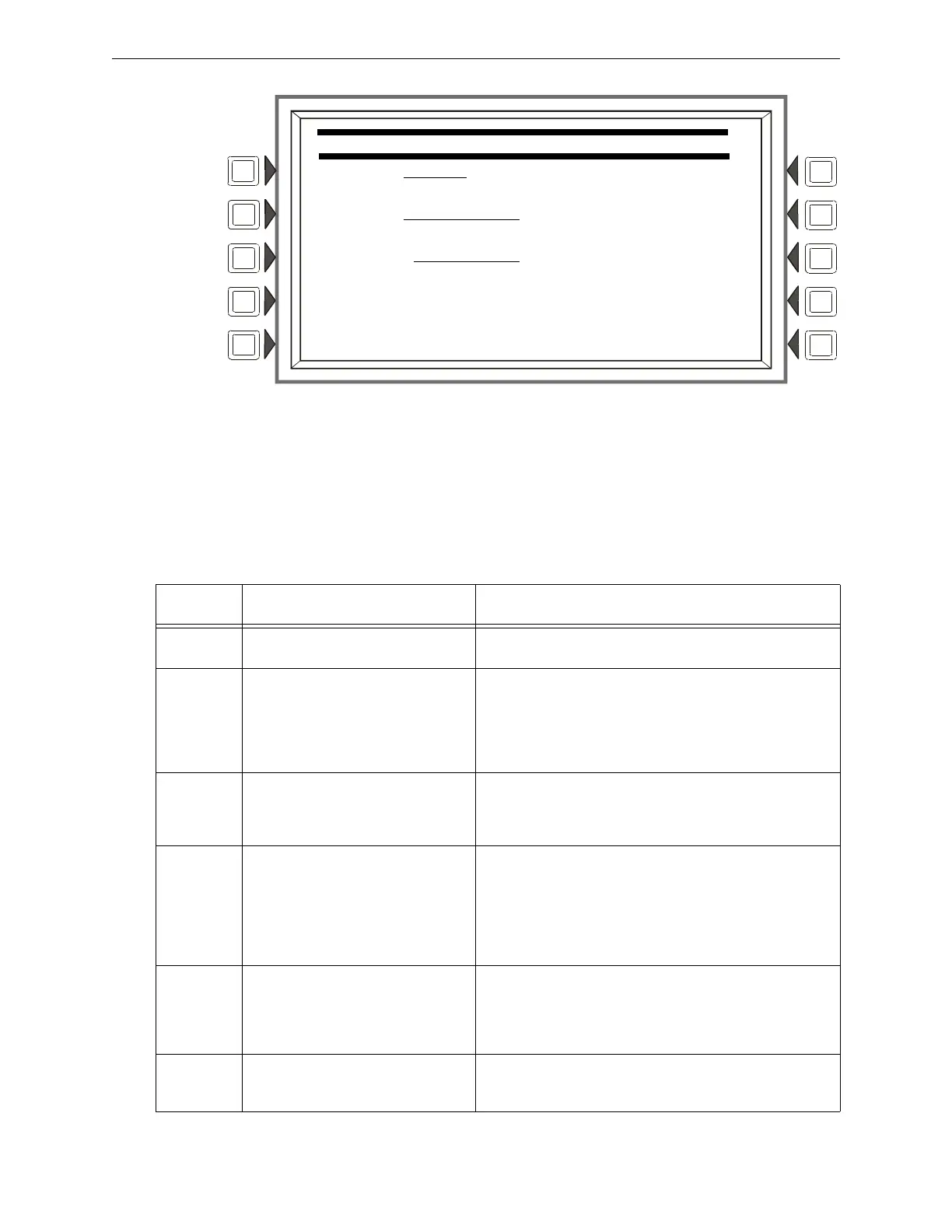

Figure 3.12 Sample ACS Point Programming Screen
Soft Keys
POINT: Press this soft key to enter the ACS point number. The format is AxxPyy, where A is the
two-digit device address, P is the two-digit point number. Enter a leading zero for one-digit
numbers.
MODE: Press this soft key to enter the ACS mapping mode. Table 3.1 shows the possible mode
choices and descriptions of their functions.
ACS POINT PROGRAMMING
POINT: A27P04
MODE: MONITOR
SOURCE: N23L01M037 (MODULE)
NEXT ACCEPT
PREVIOUS BACK
ACS Point
Mode
Function:
The point…
Explanation
None … is not programmed. No messages are sent from or received at this point. LEDs at this
point do not light.
Control … will change the state of up to eight
control modules to off or on when its
button is pushed.
Selecting this point mode will bring up
the Control Point Select screen (refer to
Figure 3.13).
The Point Active LED is lit if a corresponding mapped point is
active. The Status (trouble) LED is on when a point or zone is
disabled or in trouble.
This mode is not for use with an ACS point with no switch, or with
a TM-4 or UDACT.
Monitor … will show the current status of a
specified point or zone.
The Point Active LED is lit if the corresponding mapped point or
zone is active. The Status (trouble) LED is on if that point or zone
is disabled or in trouble. If the point has a button, it has no effect
when pushed.
Telephone … supports telephone functionality when
mapped to a telephone point. Press the
button to connect the mapped point with
the telephone station.
Both the Point Active LED and the Status (trouble) LED will flash
if a telephone has been placed in the jack at the mapped
telephone point. Otherwise, the Point Active LED is lit if the
corresponding point or zone is active. The Status (trouble) LED is
lit if that point or zone is in trouble or disabled.
This mode is for use with ACS Series annunciator points
configured for telephone operation.
Disable … will change the state of a point or
zone specified through mapping from
enabled to disabled, or from disabled to
enabled, when its button is pushed.
See Caution below this table.
The Point Active LED is lit if the corresponding mapped point or
zone is active. The Status (trouble) LED is lit if that point or zone
is disabled or in trouble.
This mode is not for use with an ACS point with no switch, or with
a TM-4, UDACT, or smoke control device.
Acknowledge … will act like an Acknowledge soft key
or button on the panel, acknowledging
an event when its button is pushed.
The Point Active LED is lit when there are any fire alarms in the
system. The Status (trouble) LED is lit when there are troubles in
the system.
Table 3.1 ACS Point Mapping: Explanation of Point Modes (1 of 2)
