Honeywell Searchpoint Optima Plus - 3.2.1 Standard Installation

MAN0905_Issue 7_07/17 Searchpoint Optima Plus with optional HART
®
output
Operating Instructions
2108M0550
19
3.2.1 Standard Installation
1. Select a suitable entry in the junction box - Searchpoint Optima Plus must be mounted horizontally.
 ThemountingthreadsizeiseitherM25or¾NPT(certicationdependent).
2. Secure the junction box to the mounting surface in the required orientation. Refer to individual junction
box instructions for mounting information.
3. Remove the junction box lid.
4. Fit the Searchpoint Optima Plus detector to the junction box.
Ensure that the junction box thread is compatible with the Searchpoint Optima Plus thread.
FeedtheSearchpointOptimaPluscablesthroughtheentryandscrewthedetectorinrmly.Becarefulto
avoid cross-threading.
Note:M25versionshaveanylonsealingwasherwhichisrequiredtomaintaintheIPrating.

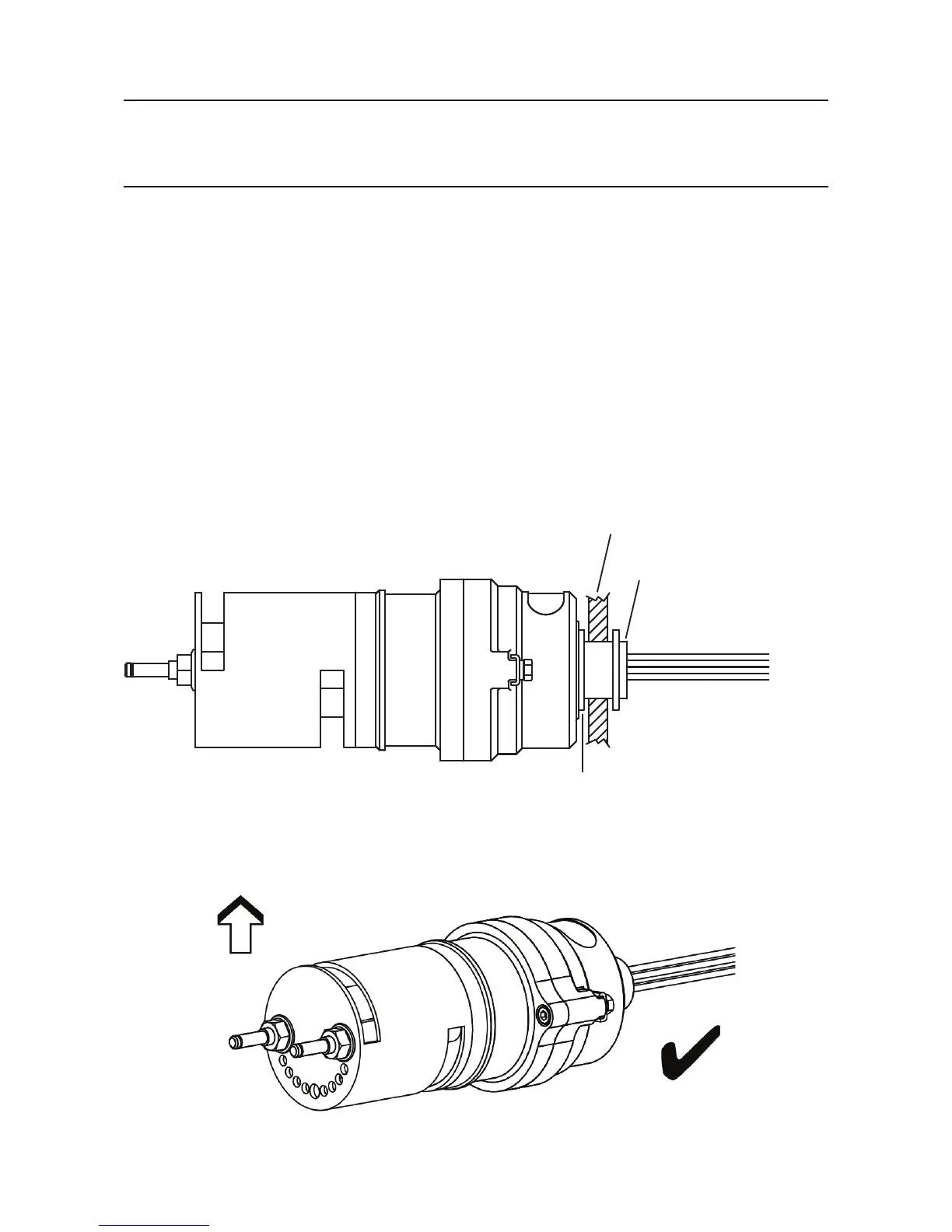

Note:M25versionsshouldbesecuredusingalocknut.Seediagrambelow.
Enclosure / Junction Box
Lock Nut
Sealing Washer
Ensure that the Standard Weather Protection is in the correct orientation, with the semi-circle of holes at the
bottomasshown.Ifnecessary,unscrewthedetectoralittle,and/orremovetheWeatherProtectionand
rotateitthrough180°tothecorrectorientation.ForM25versions,ensurethatthenylonwasherremains
compressed to maintain the IP rating.
3. Mechanical Installation
