172 Thor VM1 with Microsoft Windows Embedded Standard 2009 User Guide

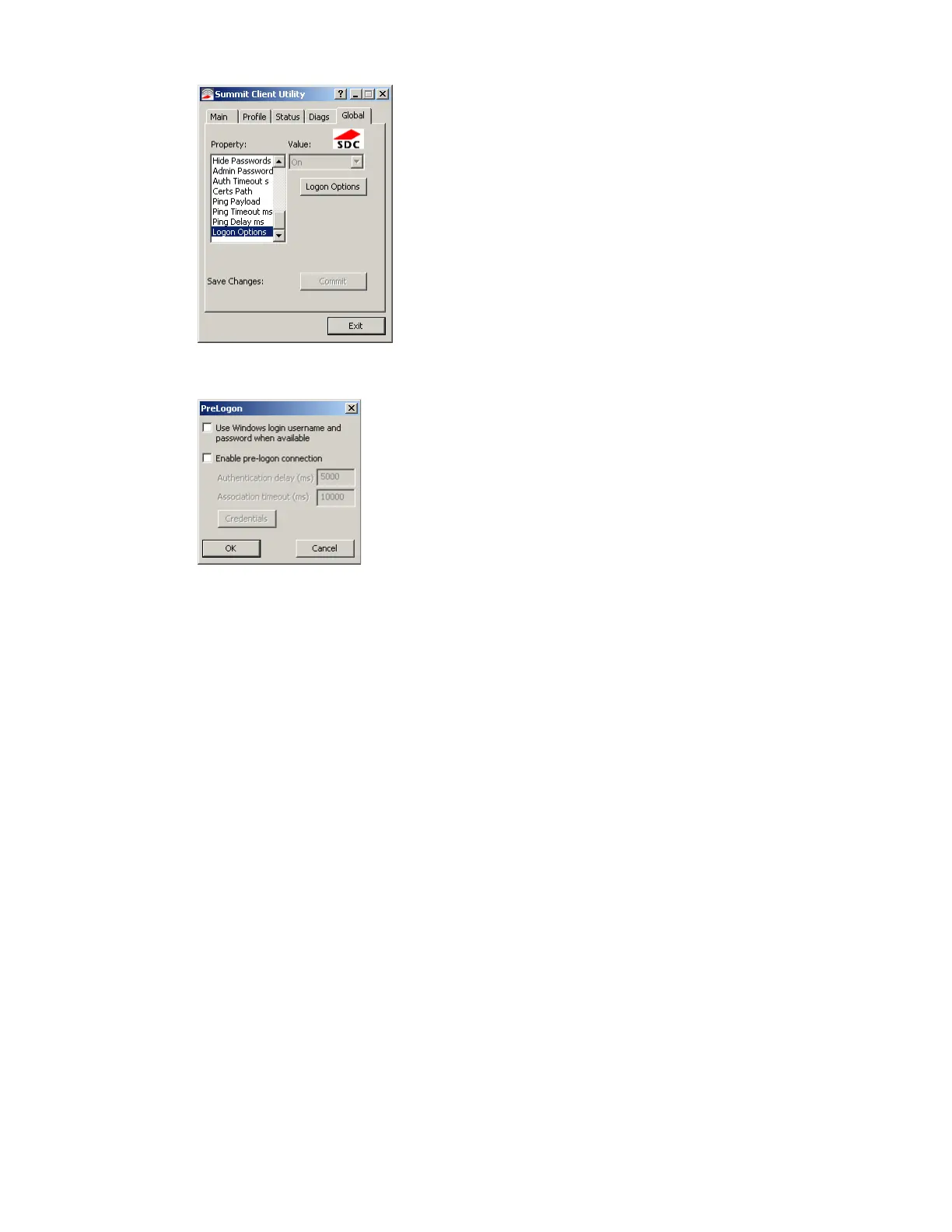

Click the Logon Options button.
Single Signon
To use the Single Signon option, select the checkbox for Use the Windows username
and password when available. When the active profile is using LEAP, PEAP-MSCHAP,
PEAP-GTC or EAP-FAST, the SCU ignores the username and password, if any, saved in
the profile. Instead, the username and password used for Windows logon is used. Any
certificates needed for authentication must still be specified in the profile.
Click OK then click Commit.
Pre-Logon Connection
To use the Pre_logon connection, select the checkbox for Enable pre-logon connection.
This option is designed to be used when:
• EAP authentication is required for a WLAN connection
• Single Signon is configured, so the Windows username and password are used as
credentials for EAP authentication
• The WLAN connection needs to be established before the Windows login.
Once this option is enabled, the Authentication delay and Association timeout values
can be adjusted as necessary. Both values are specified in milliseconds (ms).
The default authentication delay is 5000 ms and the valid range is 0 - 600,000 ms.
The default association timeout is 10,000 ms and the valid range is 10,000 to 600,000
ms.
