Thor VM1 with Microsoft Windows Embedded Standard 2009 User Guide 67
Power Cable Routing
12-48 VDC Vehicles (10-60 VDC Direct Connection)
Fuse Requirements
•For 12VDC input, use the 10A fuse from the kit or a slow blow fuse that has a DC
voltage rating greater than 12VDC.
•For 24VDC input, use the 6A fuse from the kit or a slow blow fuse that has a DC
voltage rating greater than 24VDC.

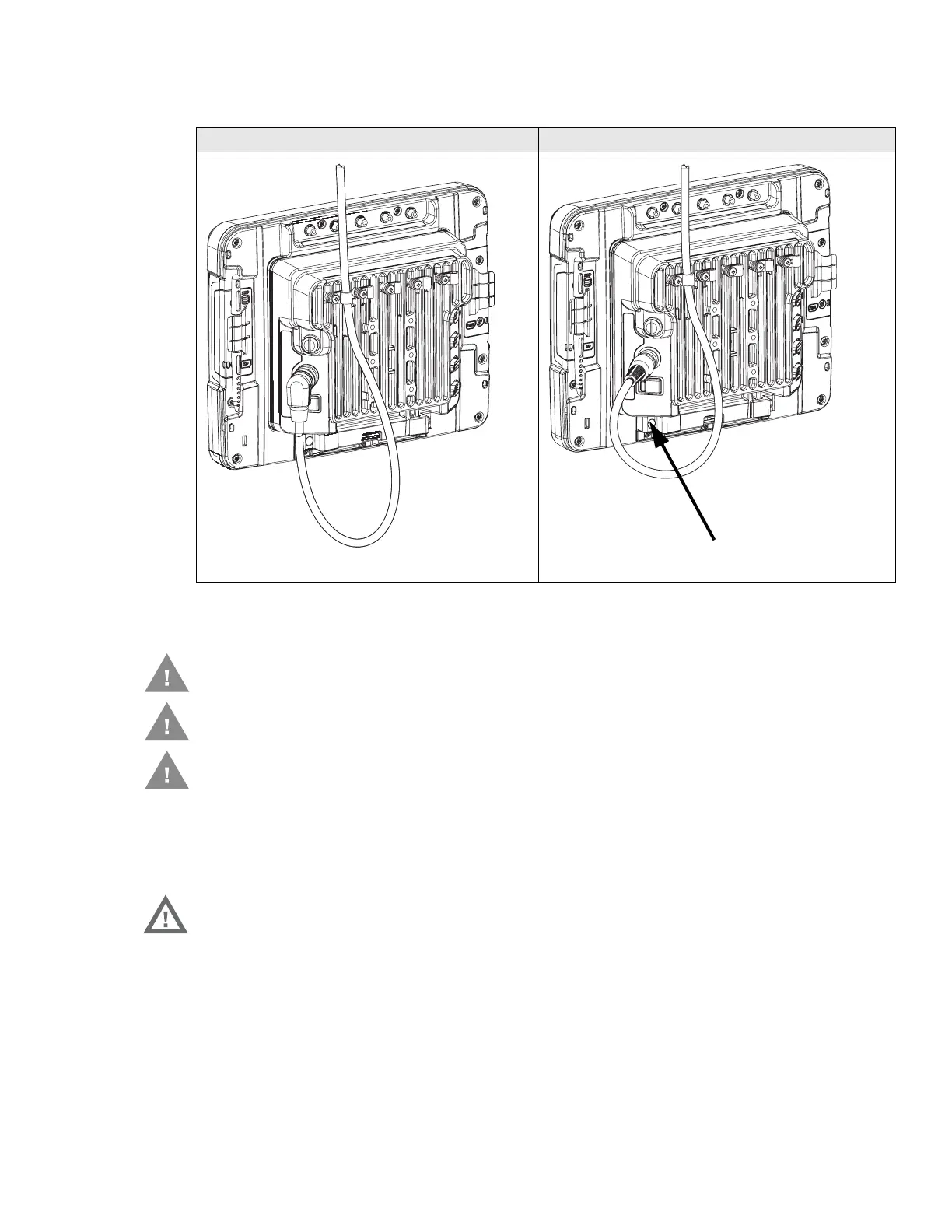

Power cable with right-angle connector Power cable with straight connector
Caution: For installation by trained service personnel only.
Caution: Use caution when routing the power cable. See Power Cable
Cautions.
Caution: These instructions for use with VM1D Standard Dock and VM3D
Enhanced Dock only.
Warning: For proper and safe installation, the input power cable must be
connected to a fused circuit on the vehicle. If the supply
connection is made directly to the battery, the fuse should be
installed in the positive lead within 5 inches of the battery’s
positive (+) terminal. Use VM3055FUSE (or equivalent) to
install the fuse as shown below:
Avoid sharp bends in this
area of the power cable
To Next Page
