Thor VM1 with Microsoft Windows Embedded Standard 2009 User Guide 89

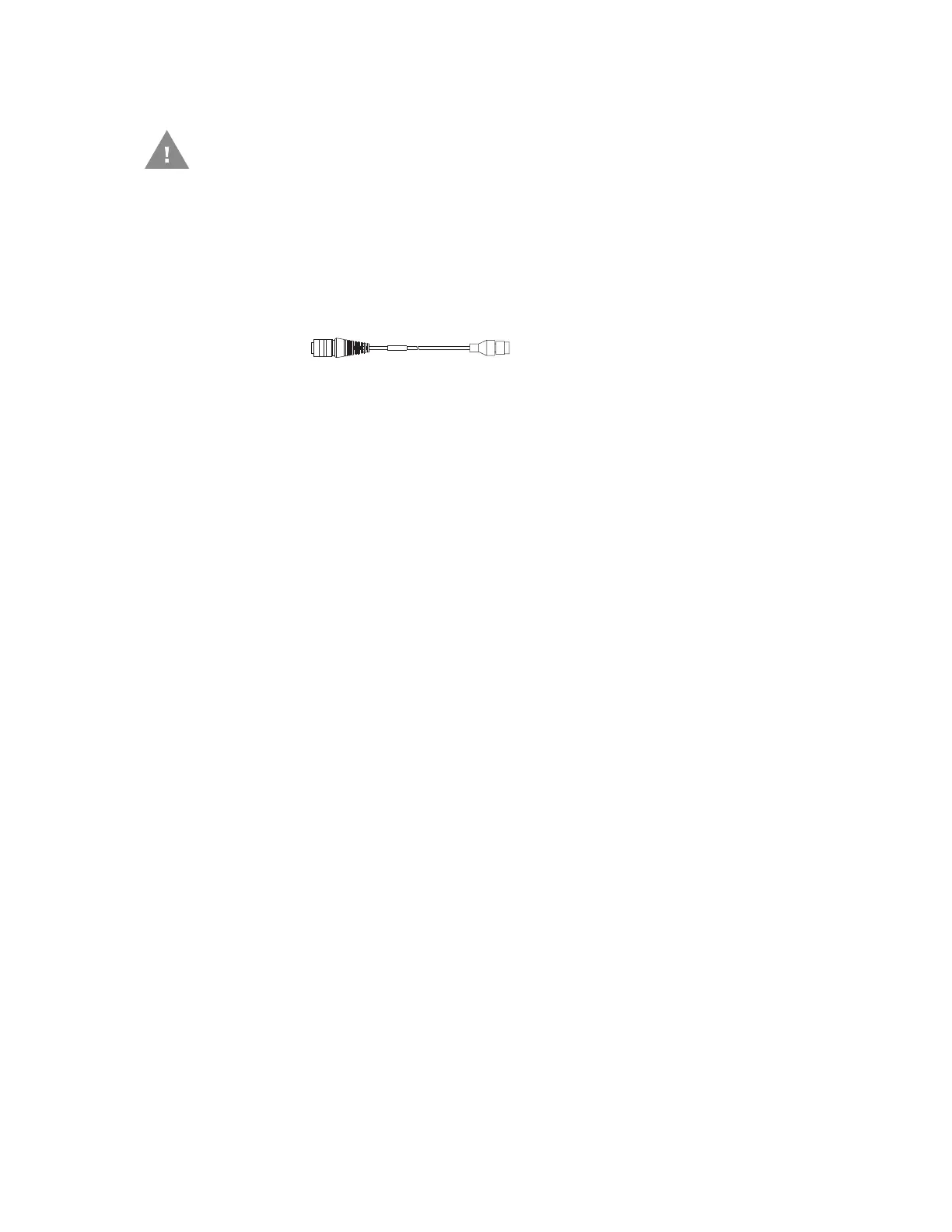

CV61 Adapter Cable
An adapter cable is available to attach the Thor VM1 to a vehicle previously equipped
with a CV61 DC power cable. The adapter cable has a 5-pin connector to match with the
VV61 power supply cable on one end and a 6-pin connector to match to the Thor VM1
on the other end. This section assumes the CV61 power cable is properly connected to
vehicle power. Refer to the CV61 documentation for details.
When this adapter cable is used, there is no provision for an ignition switch input.
Therefore the vehicle ignition monitoring function is not available when using this
cable.
Connect to CV61 Power Cable
1. Connect the adapter cable to the CV61 power cable by aligning the connector pins
to the power connector; push down on the watertight connector and twist it to fasten
securely.
2. The cable is rated for a maximum temperature of 105°C (221°F). Therefore, routing
this cable it should be protected from physical damage and from surfaces that
might exceed this temperature. Cable should be protected from physical damage
from moving parts. Do not expose the cable to chemicals or oil that may cause the
wiring insulation to deteriorate. Always route the cable so that it does not interfere
with safe operation and maintenance of the vehicle.
3. Provide mechanical support for the cable by securing it to the vehicle structure at
approximately one foot intervals, taking care not to over tighten and pinch
conductors or penetrate outer cable jacket.
4. Connect the watertight connector end of the power cable to the Thor VM1 dock
power connector by aligning the connector pins to the power connector; push down
on the watertight connector and twist it to fasten securely.
5. Secure the power cable to the Thor VM1 using the Strain Relief Cable Clamps.
6. Place Thor VM1 in the Dock
7. If using the Screen Blanking feature, install the screen blanking box or switch.
8. Press the Power Switch on the back of the Thor VM1 dock.
9. Press the Power Button on the front of the Thor VM1 to turn on the Thor VM1.
These instructions for use with VM1D Standard Dock and VM3D Enhanced
Dock only.
To Power Connector on Dock
To CV41 Power Supply Cable
To Next Page
