12.1.2 Local Sounder Circuits

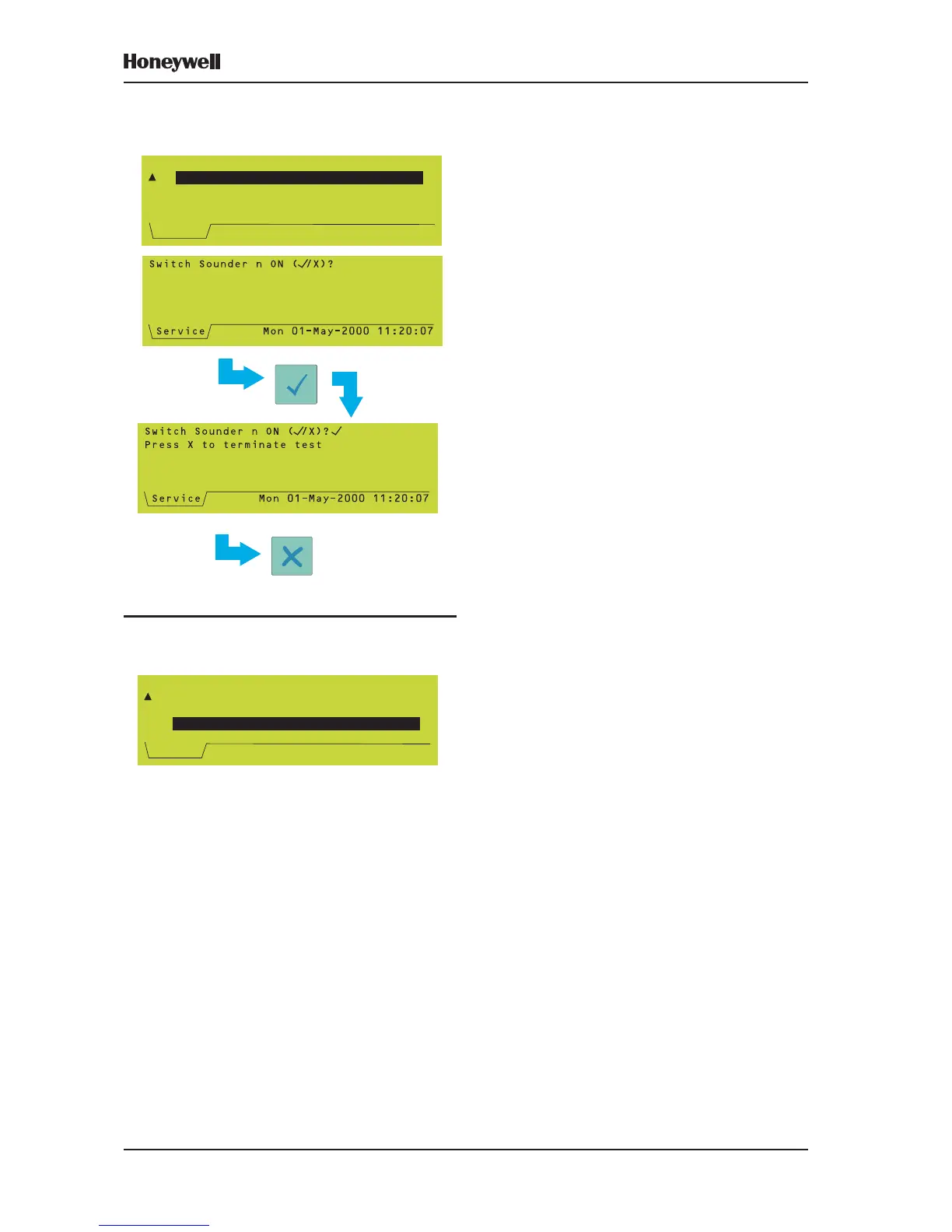

1 Select the required sounder circuit. Circuits
3 and 4 are only available if they are
configured as sounders in hardware.
2 The selected circuit operates.
3 The selected circuit stops operating.
Note: Local sounder circuits are also silenced
if the SILENCE/RESOUND pushbutton
is operated.
12.1.3 Relay Circuits
If circuits 3 and/or 4 are configured in hardware
as relay circuits, the display varies as shown.
The method of starting and stopping the test
is the same as described for local sounder
circuits. The SILENCE/RESOUND pushbutton
has no effect.
Control Output/Sounder Test
2:Sounder Circuit 1
3:Sounder Circuit 2
4:
5:Relay Circuit 4
Service Tue 27-Jul-2004 11:20:07
Relay Circuit 3
Control Output/Sounder Test
2:
3:Sounder Circuit 2
4:Sounder Circuit 3
5:Sounder Circuit 4
Service Tue 27-Jul-2004 11:20:07
Sounder Circuit 1
