XLS80e Fire Alarm Control Panels
Honeywell, Issue 9
March 2007
5.1.4 Change Device Configuration -
Modules
The following can be altered for modules:
a. The device type.
b. The zone or cell in which the device is
placed.
c. The device location text. Note that the zone
text is displayed but cannot be edited here
(it is edited in the Zone Text Editor, see
Section 6.3).
d. Module supervision options (see
Section 13 for recommendations).
e. Verification delay times. See Section 13 for
recommendations.
f. Priority options.
g. Silence and Pulse options.
5.1.4.1 Edit Device Type
Select the required TYPE. If no module exists
at the entered number, its type is NONE.
Available types are:
Type Description Physical Type
NONE Deleted - no module
exists at this address
MCP Manual Call Point MMX
BELL Bell/sounder circuit or
loop-powered sounder CMX
CTRL (generalised)
Control Function CMX
MON (generalised)
MONitoring function MMX
SPRK Sprinkler Monitor -
ASPR Aspirator Interface -
AUX. Auxiliary Module
ZMX Low cost version of CDI ZMX
CDI Conventional
Detector Interface CDI
LBM Loop Booster Module LBM
Note: While sensor types are Physical device
types (they are determined by the
sensor hardware and must be selected
so as to match the actual sensor
installed at that address), module types
are Logical device types. These refer
to one of the physical module types as
shown in the table above.
TO
MAKE
SELECTION

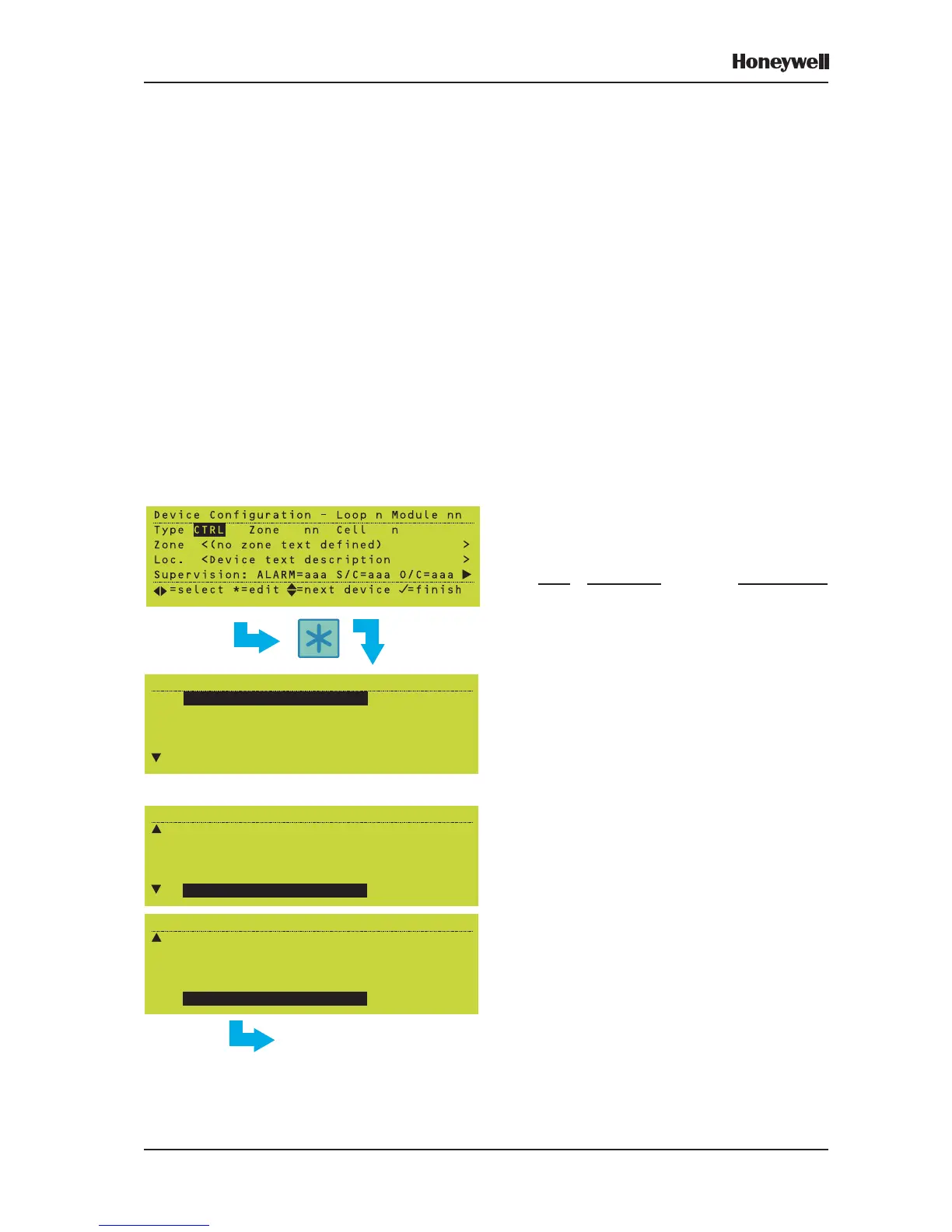

Set device type - Loop n Module nn
1:
2:MCP MANUAL CALL POINT
3:BELL/SOUNDER
4:CONTROL MODULE
5:MONITOR MODULE
DELETE
Set device type - Loop n Module nn
6:SPRINKLER MODULE
7:ASPIRATOR INTERFACE
8:AUX INPUT
9:ZMX ZONE MONITOR
10:CDI ZONE MONITOR
Set device type - Loop n Module nn
7:ASPIRATOR INTERFACE
8:AUX INPUT
9:ZMX ZONE MONITOR
10:CDI ZONE MONITOR
11:LBM LOOP BOOSTER MODULE
To Next Page
