XLS80e Fire Alarm Control Panels
14.2 Network Configuration Procedures
Each panel on the network must be configured
with the following information:
a. A list of all the stations on the network.
b. Its own identity on the network (this panel).
c. For each repeater, which panel is being
repeated.
The list of stations and the repeater associations
must be consistent at each panel; i.e., if you have
described station 2 as a Slave when configuring
the Master, you must also describe it as a Slave
when configuring every other panel.
Note: You also need to name each station AT
EACH PANEL (see Section 6.4).

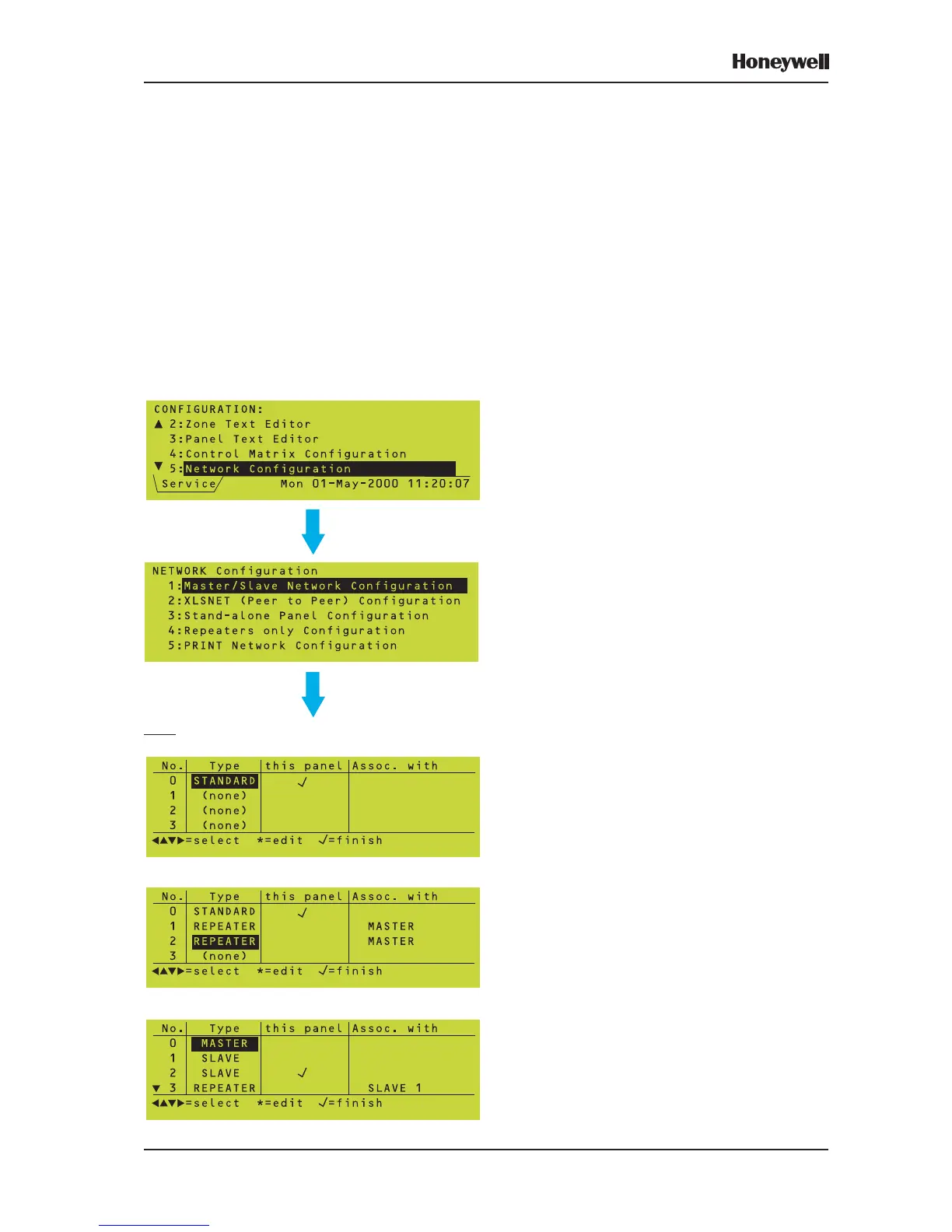

1 From the Configuration menu, display the
NETWORK Configuration menu.
2 Select Master/Slave Network Configuration.
3 The current network configuration is
displayed.
Note: Refer to the Repeater manual for
details of how to configure the
Repeater.
Note: After a panel has been configured onto
the network, and if it is subsequently
required to use it as a stand-alone
panel, select ‘Stand-alone Panel
Configuration’ (item 3 on the
NETWORK Configuration menu).
Confirm at the prompt that the panel is
to be stand-alone.
ONE OF:
IF NO NETWORK CONFIGURED
IF STAND-ALONE PANEL WITH REPEATERS
IF A NETWORK IS ALREADY CONFIGURED
To Next Page
