XLS80e Fire Alarm Control Panels
11.2 LED ‘Blinking’ Mode
The factory default setting is BLINK. If you
select NON-BLINK, the LEDs will not blink
during normal scanning but only when the
device is in alarm or under test, or under certain
fault conditions.
The BLINK and NON-BLINK settings apply to
all devices on the system that are individually
configured to ‘Follow Panel Setting’.
‘Temporary BLINK’ overrides the individual
device configuration. It is provided to identify
devices that are installed but not connected to
the loop (i.e. these devices will not blink, all
others will). Temporary BLINK times out after
2 hours.
Note: Details of how to configure the LEDs on
individual devices to blink, not blink or
follow the panel setting are given in
Section 5.1.2.9, LED Blink Options.
If either BLINK or temporary BLINK is selected,
the blink interval option is displayed. This
allows the device blink rate to be reduced (0 =
normal blink rate, other values introduce a
delay between polling cycles). It is intended
for use with very lightly-populated loops, on
which the device LEDs blink rapidly.
Note: If this option is set to a value other than
0, ensure that priority polling is set OFF
for all devices.
If a device indicates an alarm and then the
alarm condition is removed, then by default its
LEDs pulse. If it is required that the LEDs
remain on then select option 2.

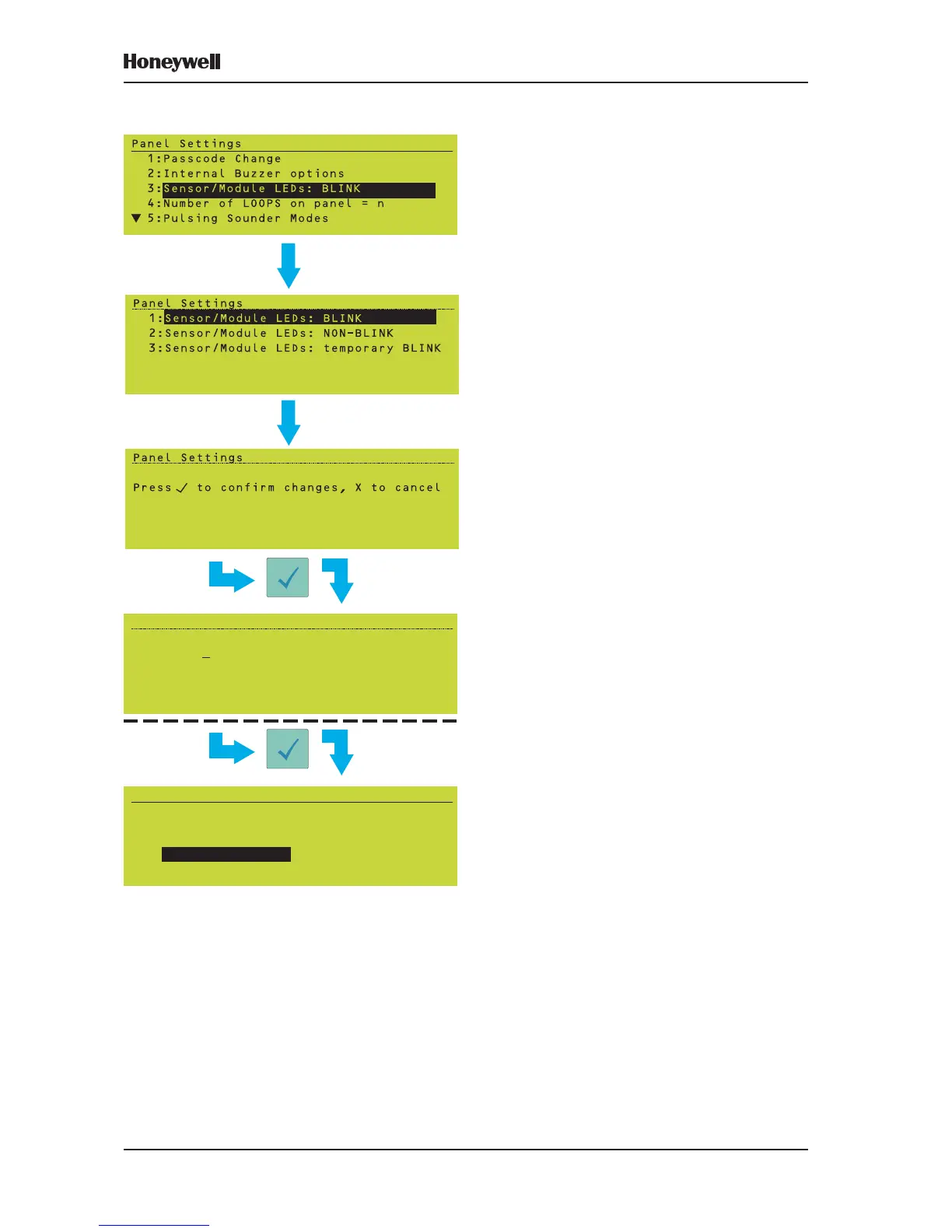

Panel Settings
Minimum Sensor/Module LED Blink Interval
(0-30s): 0
Panel Settings
Sensor/Module LEDs: Action on Return
to Normal after ALARM:
1:1-second PULSING
2:ON STEADY
