25 Honeywell, Issue 9
March 2007
XLS80e Fire Alarm Control Panels
4.4 Menu Displays

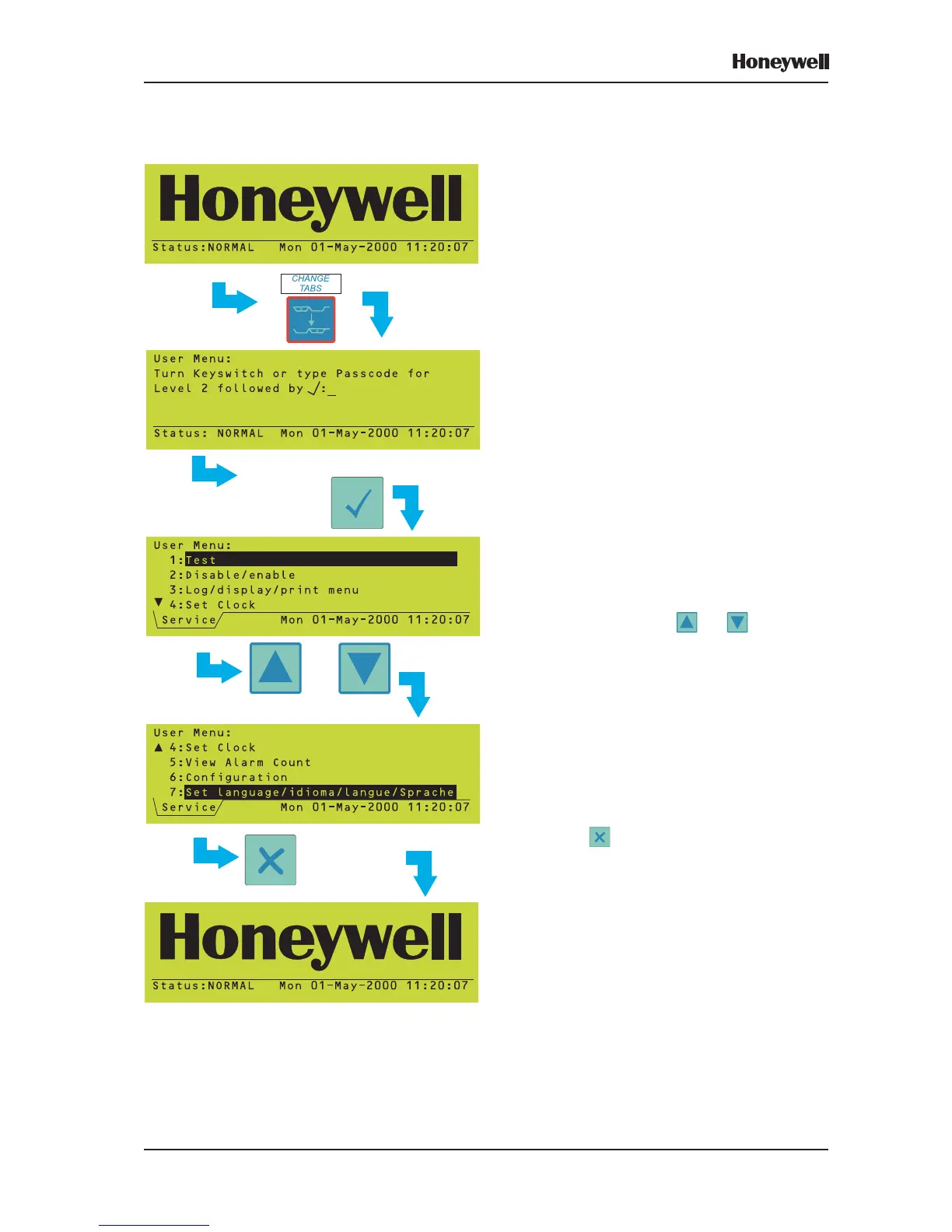

4.4.1 To Display the User Menu
To display the User Menu when the system
status is Normal, enter the passcode. To use
the Configuration menu and to use some
options on the other menus an access 3 or 3A
passcode must be entered (refer to Section 8
for further details about passcodes).
Note: If event tabs are displayed, CHANGE
TABS first displays these sequentially,
then when the last of these has been
displayed the passcode prompt is
displayed.
Note: An access 2 passcode is also provided,
for use by the operator. If this is entered
the tab is named USER instead of
SERVICE. You can enter the access 3
or 3A passcode at either a prompt for
an access 2 passcode or at a prompt
for an access 3 passcode.
Note: If no further pushbuttons are pressed
the Status: NORMAL display is re-
displayed after 2 minutes.
Only the first four options of the User Menu
are displayed at this time. The selected option
is highlighted. Use the and pushbuttons
to scroll through the other options.
Use the pushbutton to return to the Status:
NORMAL display.
ACCESS 3 or 3A
PASSCODE,
THEN
(REPEATEDLY)
OR
OR TIMEOUT
To Next Page
