53
XLS80e Fire
Alarm Control Panels
Honeywell, Issue 9
March 2007
6.4
Panel T
ext Editing
T
o edit the text for a panel:
1

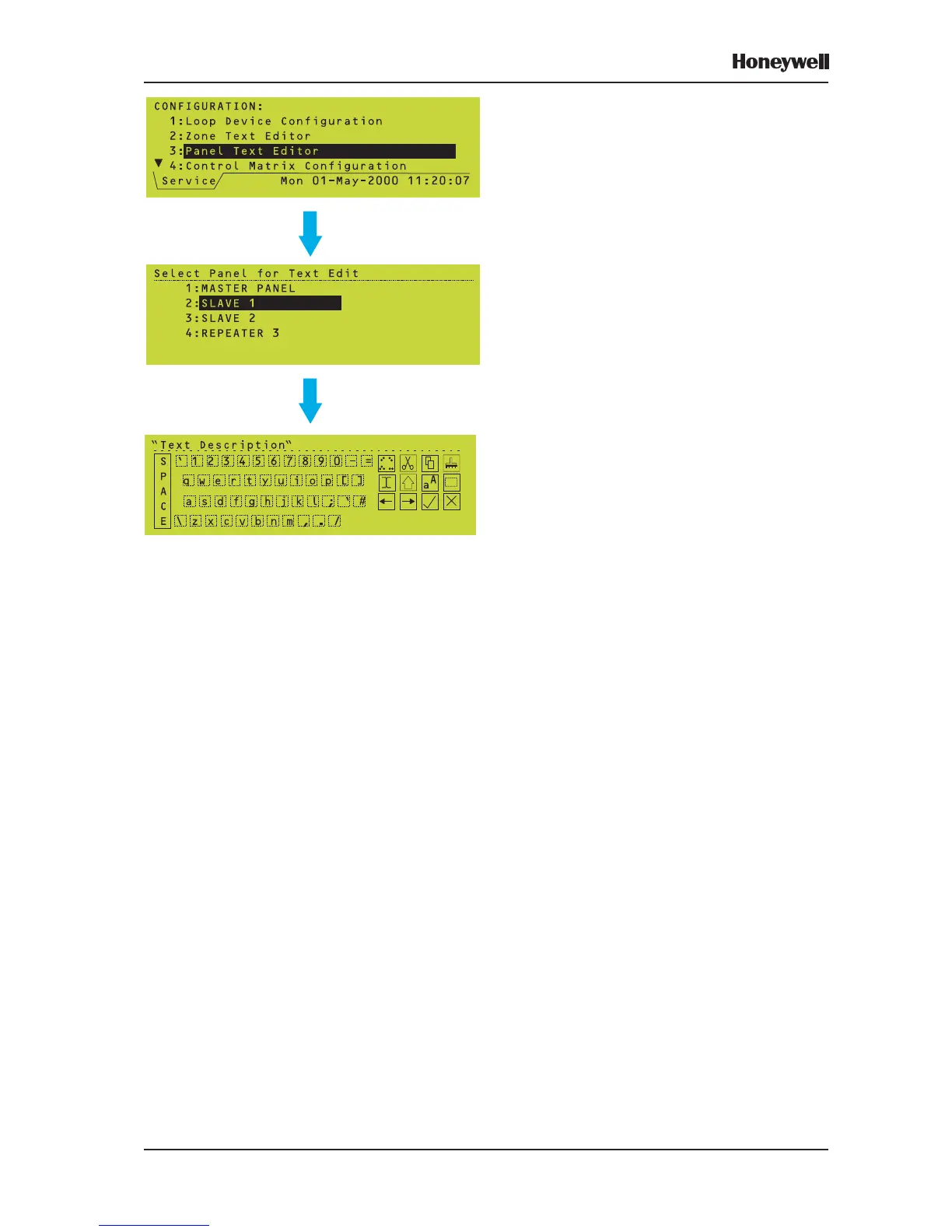

From the Configuration menu, select the
Panel T
ext Editor option.
2
If more than one panel exists on a network,
or if there are repeaters, select the panel
or repeater
.
The illustration is an example
only
, the displayed options depend upon the
network configuration.
3
Use the keyboard display to edit the text in
the same manner as described for zone
text editing.
59
61
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
8
Associated Documents
8
System Design and Planning
8
Glossary of Icons
9
Software Version Number
11
EN54 Functions
11
Ancillary Functions
12
2 Power On/Start up
14
3 Panel Configuration Overview
16
Where to Access the Configuration Actions
16
Configuration Actions
17
Using the Panel Controls and Indicators
18
Pushbuttons
18
Liquid Crystal Display
19
Using the Off-Line Support Tool
20
Passcodes
20
Learn Devices on Loops
21
Configure Group of Devices
22
Configure Individual Device
22
Text Editing
23
Control Matrix
23
Time-Of-Day
24
Setting the Clock
24
Panel Settings
24
System Networking
25
Delays
26
Virtual Point Configuration
26
4 The Display - Tabs, Events and Menus
27
Introduction
27
Status: NORMAL
27
Tabs
27
Events
27
Menus
27
Tabs
28
Event Displays
29
March
30
Menu Displays
32
To Display the User Menu
32
To Navigate through the Menus
33
Menu Structure
34
5 Loop Device Configuration
36
Configure Individual Device
36
Select a Device
36
Change Device Configuration - Sensors
38
MULTI, MCS & GAS Sensitivities
44
Change Device Configuration - Modules
46
Configure Group of Devices
50
Learn Devices on Loops
52
Starting the Procedure
52
Run in Auto-Learn Mode
54
Run in Manual Learn Mode
56
Error Messages
56
End of Learn Process
57
Change Zone Number
57
6 Text Editing
58
Text Editing Pushbuttons
58
The Character Set
59
Zone Text Editing
59
Panel Text Editing
60
7 Control Matrix
61
Introduction
61
EN54 Requirements
62
Input Categories
63
Output Categories
65
Output Modes
66
Review/Edit Control Matrix
68
Review Entries
68
Edit Entries
69
Defining a Control Matrix Entry
70
Input Definitions
70
Output Definitions
76
Completion of New Entry
82
Disablement/Enablement Function
83
Extinguishing System Function
84
Types of Control Matrix Entry
84
Minimum Configuration
84
March
84
Device Selection
85
HOLD Options
85
Logic Operation with Transfer Flags
86
Example Logic Operations
86
Print Control Matrix
88
8 Change Passcode
89
Introduction
89
How to Change a Passcode
90
9 Time-Of-Day Programming
92
Time-Of-Day Program Editing
92
Manual Override
94
DISABLEMENT and ENABLEMENT Override
95
MULTI Thermal-Only Mode
96
Link to Day/Night Switch
96
10 Setting the Clock
97
11 Panel Settings
98
Internal Buzzer Options
98
LED 'Blinking' Mode
99
Number of LOOPS on Panel
100
Pulsing Sounder Modes
101
Walk Test Options (Mcp/Sounder)
101
Automatic Test Options
102
Disablement Options
102
Loop Options
104
Panel Functions
104
Access Level for MUTE BUZZER Etc
105
Unlatched Non-Alarm Input Logging
105
Relay Circuits SILENCE Option
106
Mains/Psu Fault Delays
106
LCD Backlight 'On' Duration
107
Blank Lines between Printed Events
107
Isolated RS232 Port Set-Up
108
Diagnostic RS232 Port Set-Up
109
Remote Fire Output Options
110
Day/Night Modes Configuration
111
March
111
Extinguishing System
112
Alarm Coincidence
113
Network Settings
114
Thermal Alarm Verification Time
114
12 User Menu at Level 3 Access
115
Control Output Tests
115
CMX Modules
116
Local Sounder Circuits
117
Relay Circuits
117
Virtual Output Points
118
Loop Sounders and Boosters
118
Bad Poll Log
119
Display Active Control Matrix Rules
119
Unconfigured Devices Scan Menu
119
Commissioning Mode for MCS Sensors
120
13 Sensitivity and Alarm Delay
121
Recommendations
121
Analogue Sensors Sensitivity
121
Analogue Device Verification
121
Sensitivity and Alarm Delay Recommendations
121
Module Delays
122
14 Master/Slave Network
123
Introduction
123
Number of Stations on Network
123
Number of Zones on Network
124
Information Distribution Via Network
125
Network Configuration Procedures
126
Station Type
127
THIS Panel
128
Associate Repeaters with Panel
129
Completion of Network Configuration
129
Print Network Configuration
129
15 Virtual Point Configuration
130
Virtual Output Points
130
Virtual Input Points
131
Virtual Output Backup Sounder
131
March
132
