XLS80e Fire Alarm Control Panels
Honeywell, Issue 9
March 2007

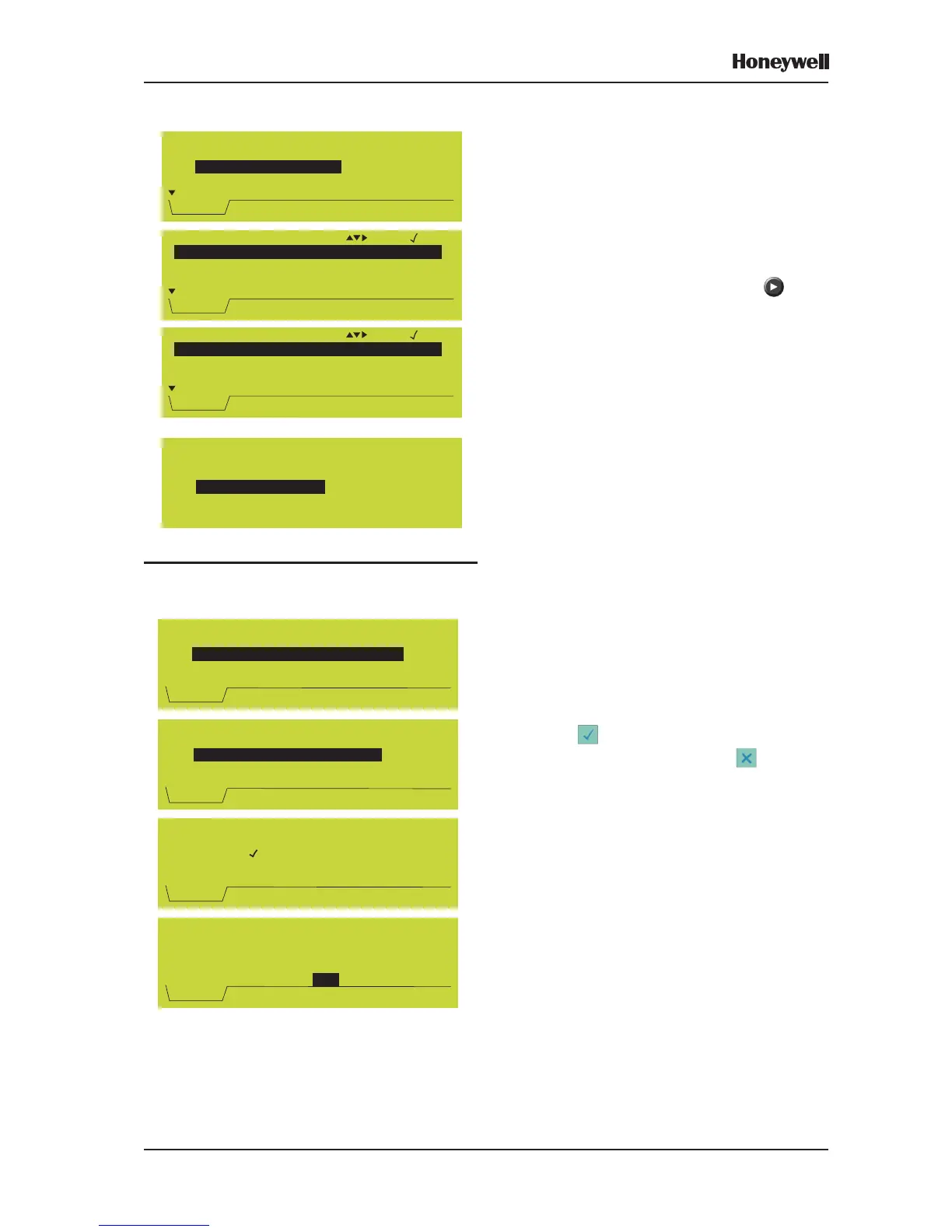

12.1.4 Virtual Output Points
An additional option to test Virtual Output points
is available provided that the points are
configured in a zone and that the fire panel is
connected to third party equipment in Voice
Alarm System mode.
1 Select the required zone and point.
Note: The Virtual Output Point text is displayed
beside each point; press the button
to display the zone number (if there is
no text configured the zone number is
always displayed).
2 Activate the Virtual Output Point in the
required mode.
3 When the test is complete, de-activate the
Virtual Output Point.
12.1.5 Loop Sounders and Boosters
Enter the loop number and then select the
required loop drive option. If the loop has Loop
Boosters installed, a list is displayed from
which individual Boosters can be set to NOT
activate (enter the Booster’s device number).
Press . The sounders and Boosters on the
selected loop then operate until is pressed,
or until the test times out (after 4 hours), or
until an alarm, pre-alarm or fault occurs
elsewhere on the system.
Note: If “Drive end ‘A’ only” is chosen, the end
‘B’ voltage is displayed as either
NORMAL or LOW - if the latter there is
the risk of insufficient power to drive
sounders if a fault occurs (or a double-
fault if one a Booster is disabled). There
are no equivalent messages for the
‘BOTH’ or ‘end B’ options.
Control Output/Sounder Test
1:Individual device
2:
Service Tue 27-Jul-2004 11:20:07
All Sounders on selected Loop
Test all Sounders (and Boosters) on
loop (1-8, local panel only): 1
1:
2:Drive end 'A' of Loop only
3:Drive end 'B' of Loop only
Service Tue 27-Jul-2004 11:20:07
Drive BOTH ends of Loop
Select the Loop Booster Module (LBM)
which you do NOT want to activate.
(press just to activate ALL boosters)
Available: 1 80
->_
Service Tue 27-Jul-2004 11:20:07
1:Drive BOTH ends of Loop
2:
PLEASE WAIT
Press X to terminate test
Loop End 'B' Voltage
Service Tue 27-Jul-2004 11:20:07
Drive end 'A' of Loop only
LOW
Control Output/Sounder Test
1:CMX Module
2:
3:Sounder Circuit 1
4:Sounder Circuit 2
Service Wed 13-Jul-2005 11:20:07
Virtual Output Point
From ZONE (0=ANY): ( digit )
3:(no zone text defined)
29:Factory seven
41:Electrics area
Service Wed 13-Jul-2005 11:20:07
ANY Zone
Virtual Output Point ( digit )
8:Speaker rack
13:Located in zone 41: BELL
14:Janitor room
Service Wed 13-Jul-2005 11:20:07
6:Ceiling
Virtual Output Point 1
Factory seven
Located in Zone 29
1:
2:Activate in mode 1
3:Activate in mode 2
De-Activate
