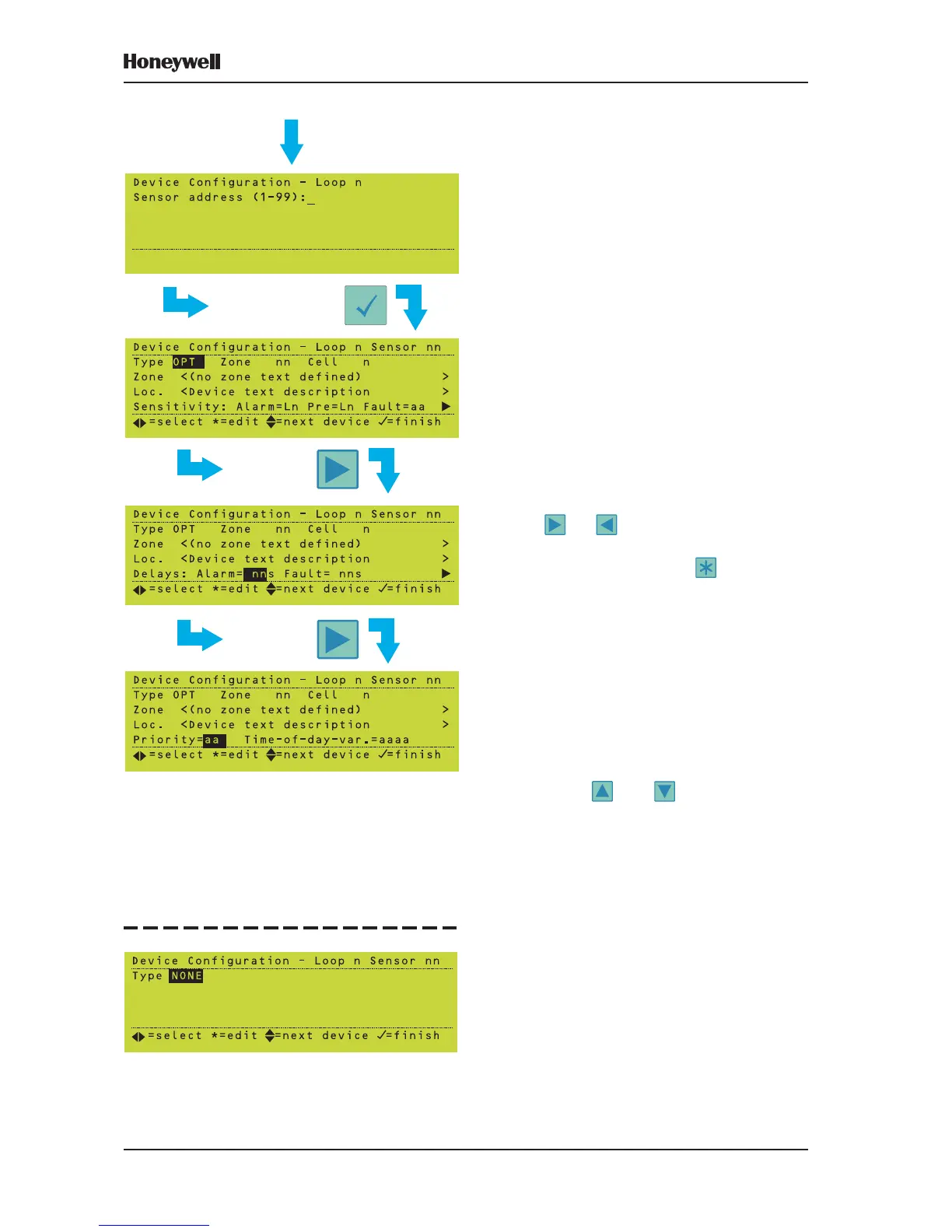

4 In this example SENSOR was chosen. The
procedure for choosing a MODULE is the
same. Enter the device number. Leading
zeros are optional.
In this example the device is an optical sensor
(type OPT); all other values use ‘n’ to represent
a numeric value and ‘a’ or a description to
represent alphabetic characters.
The and pushbuttons step through the
parameters that can be edited for the currently-
displayed device. Press the pushbutton to
edit the currently-highlighted parameter. The
following sections describe the options
available for each parameter for a sensor, and
then the differences applicable to a control
module.
Note: The and pushbuttons step
through the various devices on the
system (all loops).
If the device has not been configured, the
display is as shown.
FROM PREVIOUS PAGE
NUMERIC KEYS,
THEN
REPEATED
USE OF
FURTHER
USE OF
To Next Page
