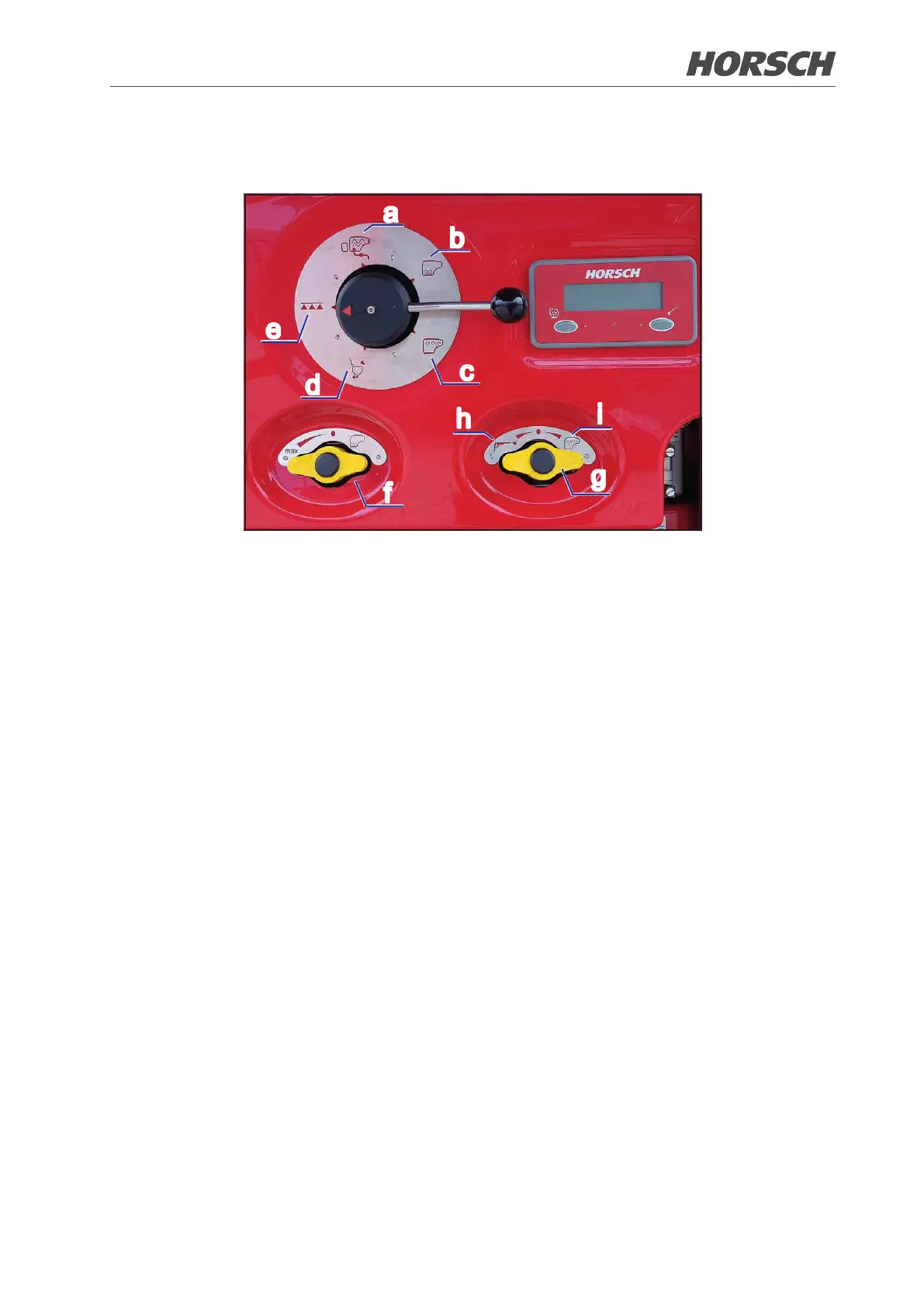

5.3 Pressure side ball valve
a
b
c
d
e
f
h
i
g
(a) Filling the spraying mixture container
(b) Agitator
(c) Internal/outside cleaning
(d) Illuviation valve
(e) Circulation/spraying
(f) Valve for the manually adjustable intensity of the agitator during spraying operation
(g) Switch-over ball valve between internal and outside cleaning
(h) Position of valve for outside cleaning
(i) Position of valve for internal cleaning
5.4 Filling
Option 1:
¾ Set the ball valve on the suction side to Fill spraying mixture container via suction
connection.
¾ Set the ball valve on the pressure side to Fill spraying mixture container.
¾ Activate the centrifugal pump on the external control terminal Mini.
¾ Filling ends when the rated volume of the spraying mixture container has been
reached or the pump is manually deactivated on the external control terminal
Mini.
¾ The supply line to the quick lling valve can be sucked empty by prolonged
pressing of the Activate/deactivate centrifugal pump button (replenishing function).
