3.2.20.5 Machine geometry
F
b
c
d
e f
a
g

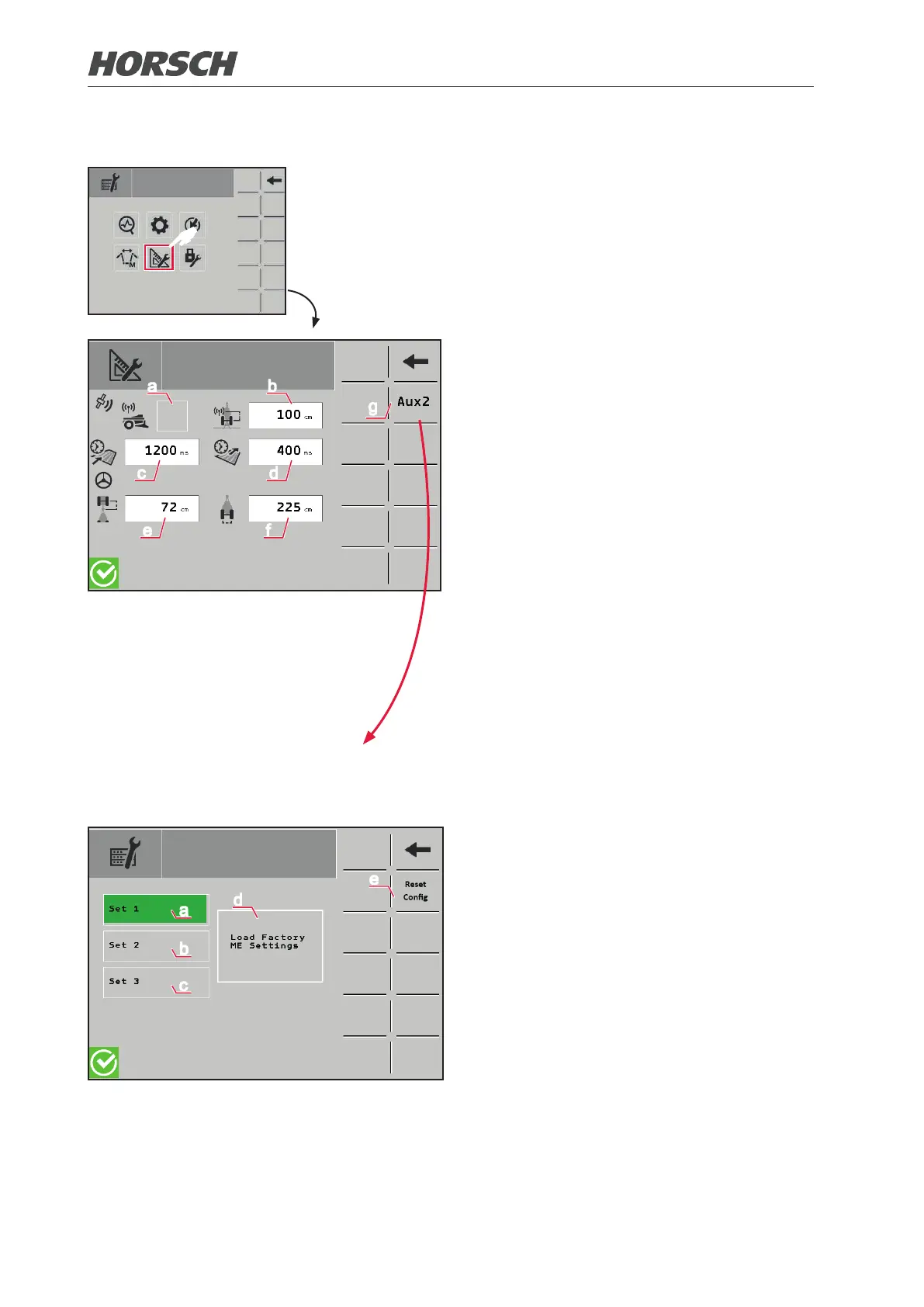

(a) If the trailed sprayer is equipped with a
GPS receiver, the checkmark must be set
here (trailed sprayer only, not for 6.300
PT / 7.300 PT / 8.300 PT).
(b) Distance of axle centre of the sprayer to
the GPS receiver in cm (trailed sprayer
only, not for 6.300 PT / 7.300 PT / 8.300
PT).
(c) Inertia when entering the 󰘰eld in ms
(d) Inertia when leaving the 󰘰eld in ms
(e) Distance between axle centre of the trac-
tor and hitching point in cm (option with
steering axle)
¾ This value must always be checked
when changing the tractor and adjusted
if necessary.
(f) Track width of the sprayer in cm (option
of steering axle)
¾ The current width must be entered here
when changing the track width.
(g) Select di󰘯erent assignments of the multi-
function handle and store
c
e
d
b
a
Up to 3 di󰘯erent assignments of the multi-
function handle can be stored. Select the
respective assignment and con󰘰gure it (see
chapter Multi-function handle).
(a) Assignment 1
(b) Assignment 2
(c) Assignment 3
(d) restore default assignment
(e) delete all assignments
¾ When changing the assignment, the ma-
chine / terminal must be restarted to ensure
unambiguous function allocation.
64 65
