3.2.19 Sections
WARNING
Environmental pollution as well as danger for people and animals by unintentional placing of spray-
ing mixture! Place spraying mixture only within the eld boundaries!
F
The individual sections can be activated / de-
activated via the touch control panel. Up to 42
sections can be controlled depending on the
terminal and machine features.

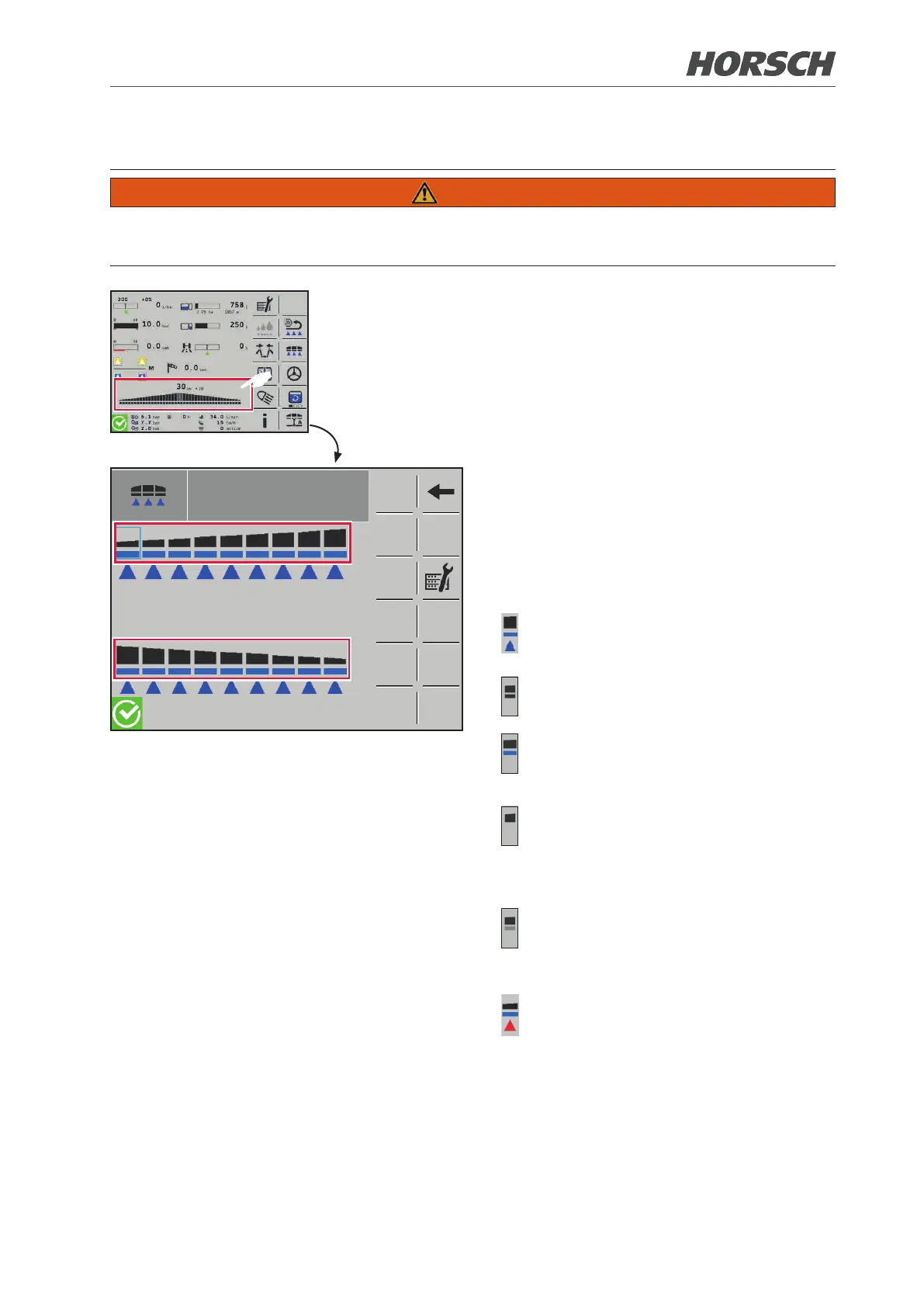

States of individual sections
Section active / spraying
Section active, nozzle closed
Task Control System picks up, Section
Control active
Section permanently locked manu-
ally, activate/deactivate by prolonged
pressing on the terminal.
Section locked manually / deactivated
in the Sections mode via multi-function
handle or brief pressure on the terminal.
¾ Change over by briey touching on
terminal or the multi-function handle.
Direct-Control Master defective or not
connected.
