5. External operation for CCS variant machines
The external control terminal Mini is located above the illuviation valve between the two ball valves.
With the external control terminal Mini the centrifugal pump for 󰘰lling the spraying mixture container
can be switched on/o󰘯 and the optional high pressure cleaner can be activated/deactivated. The
󰘰lling level of the spraying mixture container is shown on the display.
An active function is indicated by the lit LED next to the respective button.
NOTE
¾ Does not replace the operating instructions of the basic machine!
¾ Pay attention to the safety instructions and warnings in the operating instructions of the basic
machine!
¾ The operating instructions must always be carried along!
¾ Operators must have read and understood the complete operating instructions before working
with the machine!

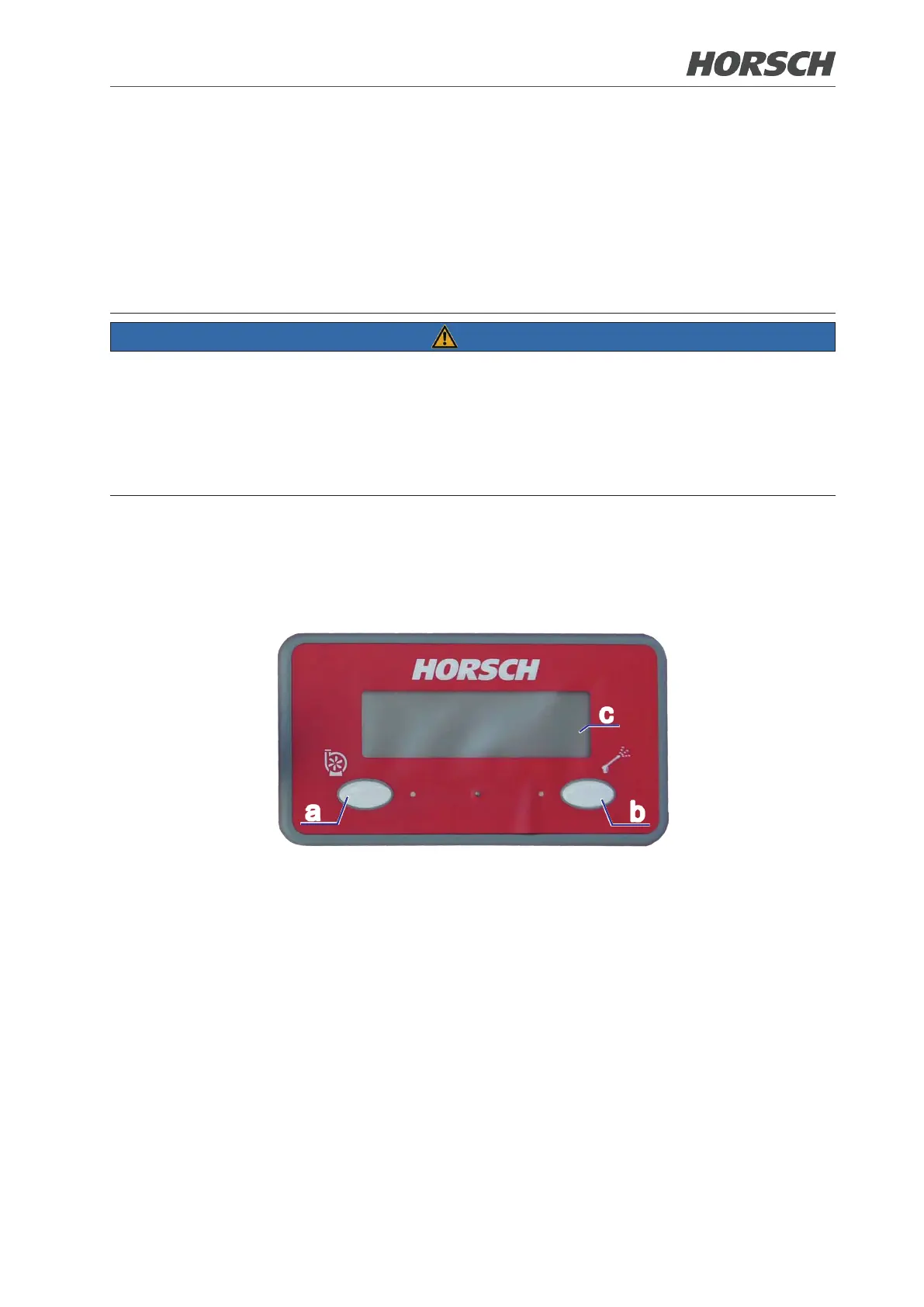

5.1 External control terminal Mini
b
a
c
(a) Switching the centrifugal pump on/o󰘯 / the supply line can be sucked empty by keeping the
button depressed for a while (replenishing function)
When circulation is active, the external control terminal Mini can be switched to the 󰘰lling mode
by pressing the Switch centrifugal pump On/O󰘯 button. Pressing the Switch centrifugal pump
On/O󰘯 button again deactivates the pump.
When the 󰘰lling mode is active, the 󰘰lling function can be deactivated at the main terminal on
the 󰘰lling side. The circulation can then be reactivated on the main page.
(b) Activate/deactivate high pressure cleaner (optional)
(c) Filling level indicator of spraying mixture container
