3.3.3 “Teach mode”
F
Steering
Suspension
Pedals
a
b
c

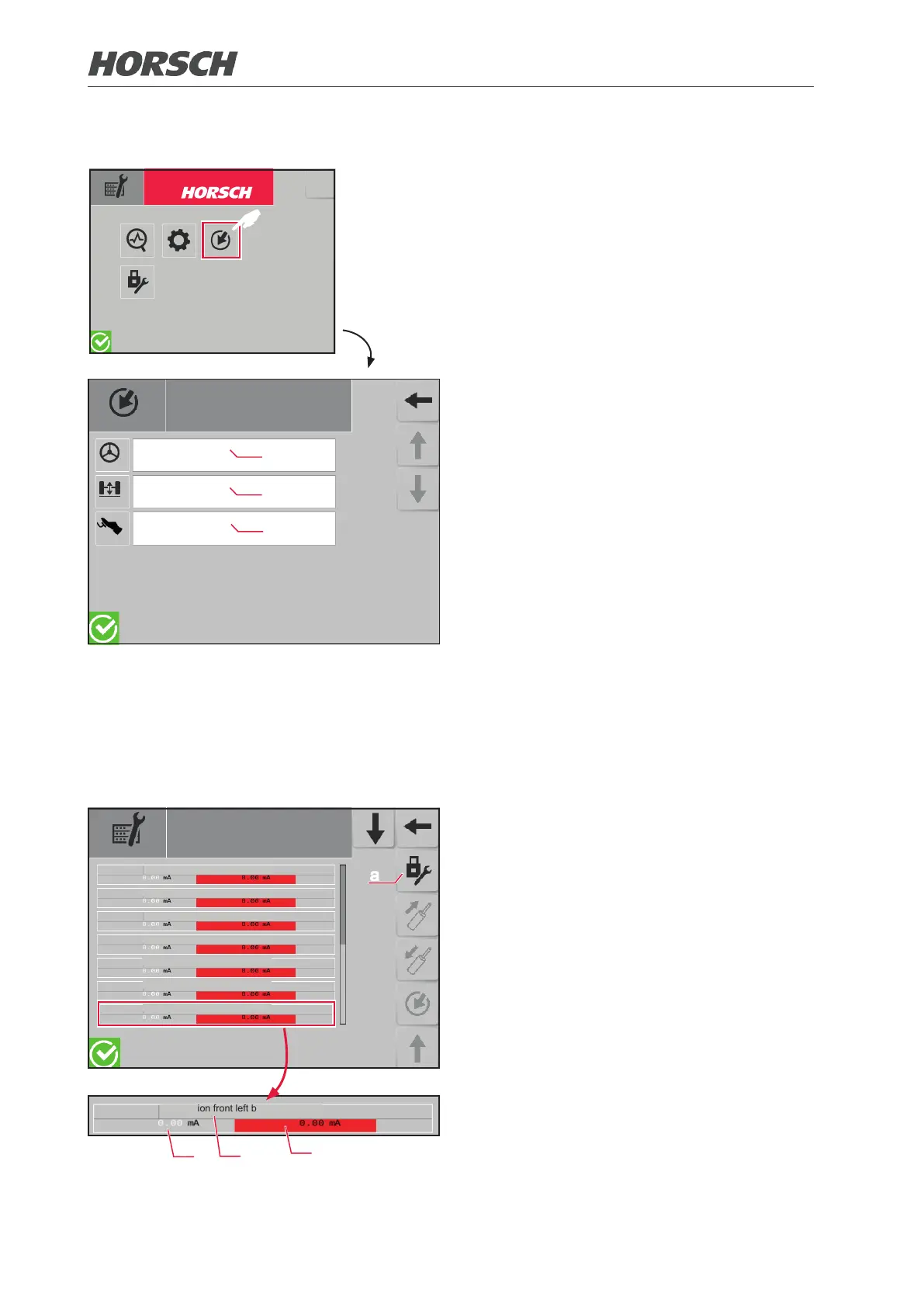

“Teach mode” is used to teach the target posi-
tions of the individual actors.
(a) Steering
(b) Suspension
(c) Pedals
Various areas can be accessed via the symbols.
¾ The submenus of the teach mode all follow the same layout (see example of undercarriage
suspension).
Undercarriage suspension submenu in teach mode
Suspension front left bottom
Suspension front left top
Suspension front right bottom
Suspension front right top
Suspension rear left bottom
Suspension rear left top
Suspension rear right bottom
a
Suspension front left bottom
d
c
b
A list with all sensors is displayed.
(a) Access to protected area
(b) Currently “taught” or saved value
(c) Explanatory text
(d) Current value
