horsch LEEB LT - Spraying Mixture Container for ECO Variant Machines; Fresh Water Tank

Stop button
¾ Press the button to stop all active functions.

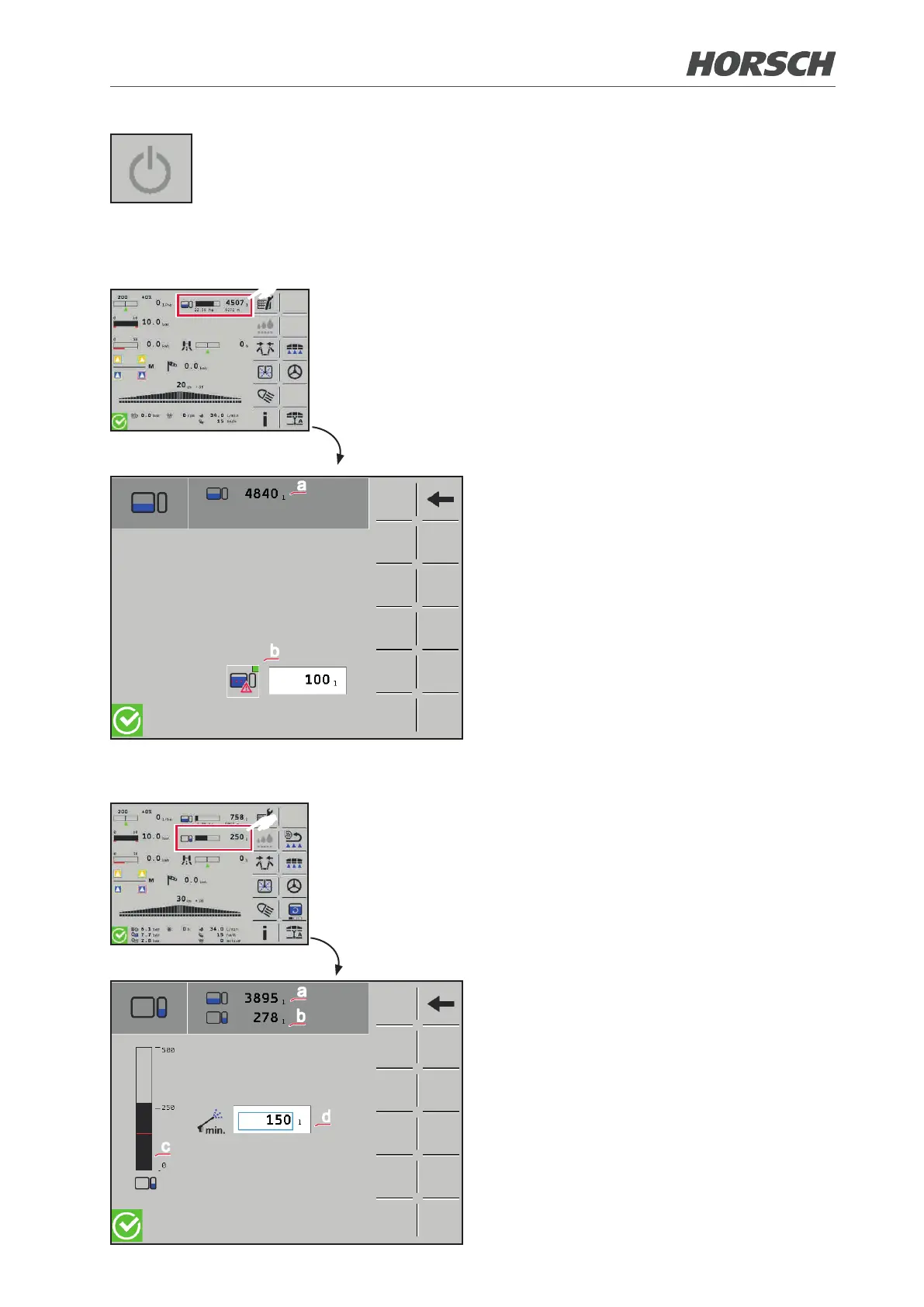

3.2.14 Spraying mixture container for ECO variant machines
F
See also External operation of the machine,
Chapter 6.4 (󰘰lling)
a
b
(a) Filling level spraying mixture container
(b) Filling level warning limit
¾ A warning is issued when the entered
value is reached.
3.2.15 Fresh water tank
F
¾ Is only displayed on the terminal for vari-
ant CCS Pro machines; with variant CCS
and ECO machines the 󰘰lling level of the
fresh water can be read via the mechanical
indicator.
a
b
c
d
(a) Filling level spraying mixture container
(b) Filling level fresh water tank
(c) The bar graph indicates the current 󰘰lling
level of the fresh water tank.
(d) Enter the minimum quantity for outside
cleaning. This quantity is not used for
internal cleaning.
