horsch LEEB LT - 8 Spraying System Winter Storage; Machines of the CCS Pro Variant

8. Spraying system
winter storage
8.1 Machines of the CCS
Pro variant
1. Depending on the desired frost protection, 󰘰ll
the appropriate amount of litres of antifreeze
and clear water into the fresh water tank. At
least 60 litres of the 󰘰nished mix are required.
NOTE
After draining the machine (without air function)
approx. 20 - 40 litres of water still remains in
the lines! This residual quantity mixes with the
antifreeze mix during the winter storage process
and thereby lowers the antifreeze temperature
even further!
Frost-proof to
Antifreeze
agent
Clear water
-20°C 30 L 20 L
-27°C 35 L 15 L
-40°C 45 L 10 L
This table only reserves as a note!
NOTE
Follow the speci󰘰cations of the antifreeze agent
used to mix the desired concentration!
Use only approved anti-freeze agents!
2. Activate outside cleaning on the external
control terminal (optional equipment). Apply
pressure to the spray gun until antifreeze mix
escapes. Now deactivate outside cleaning
again.
3. Activate the high pressure cleaner on the ex-
ternal control terminal (optional equipment).
Apply pressure to the washing gun until
antifreeze mix escapes. Now deactivate the
high pressure cleaner again.
4. Activate NightLight cleaning (optional equip-
ment) on the external control terminal until
an antifreeze mix escapes at the cleaning
nozzles The function can only be activated
for 4 seconds at a time. The function can
only be activated again following a pause of
3 seconds.

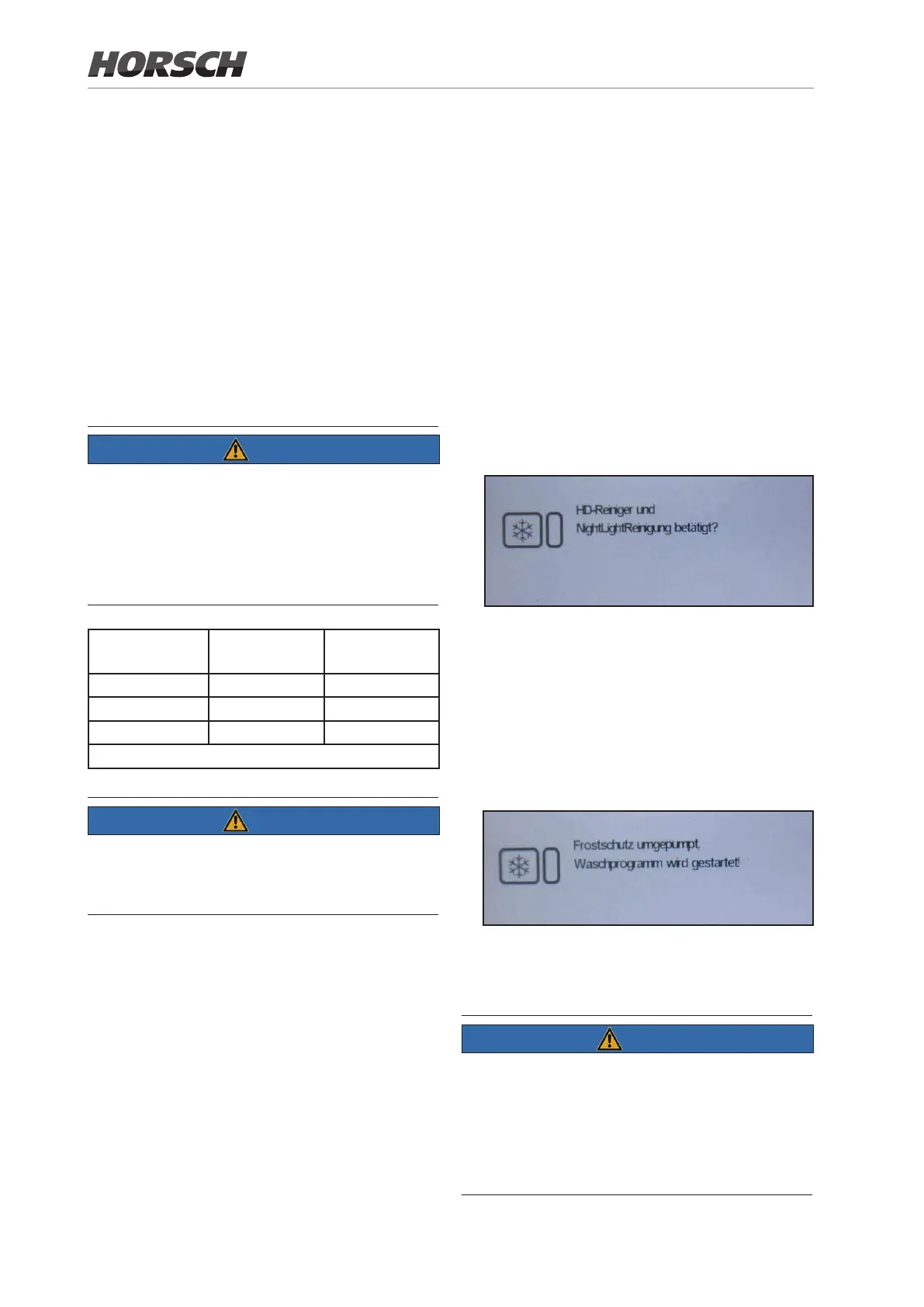

5. Start the Winter Storage function on the exter-
nal control terminal. The message HP Cleaner
and NightLight Cleaning actuated? is displayed.
Con󰘰rm the message with “ENTER”.
6. Start the Winter Storage function.
¾ The piston diaphragm pump starts, and the
content of the fresh water tank is pumped
completely into the spraying mixture con-
tainer. The piston diaphragm pump stops
after the procedure.
¾ The message Antifreeze recirculated, washing
program is started appears on the terminal.
Con󰘰rm the message with “ENTER”.
7. The washing program starts.
¾ The line systems of the machine are
󰘱ushed.
NOTE
To be able to start the washing program, the
󰘰lling level in the spraying mixture container
must be greater than the LSB parameter “210”.
It can be found on the terminal in the Settings
submenu and the item “Sprayer implement
control unit” (LSB).
