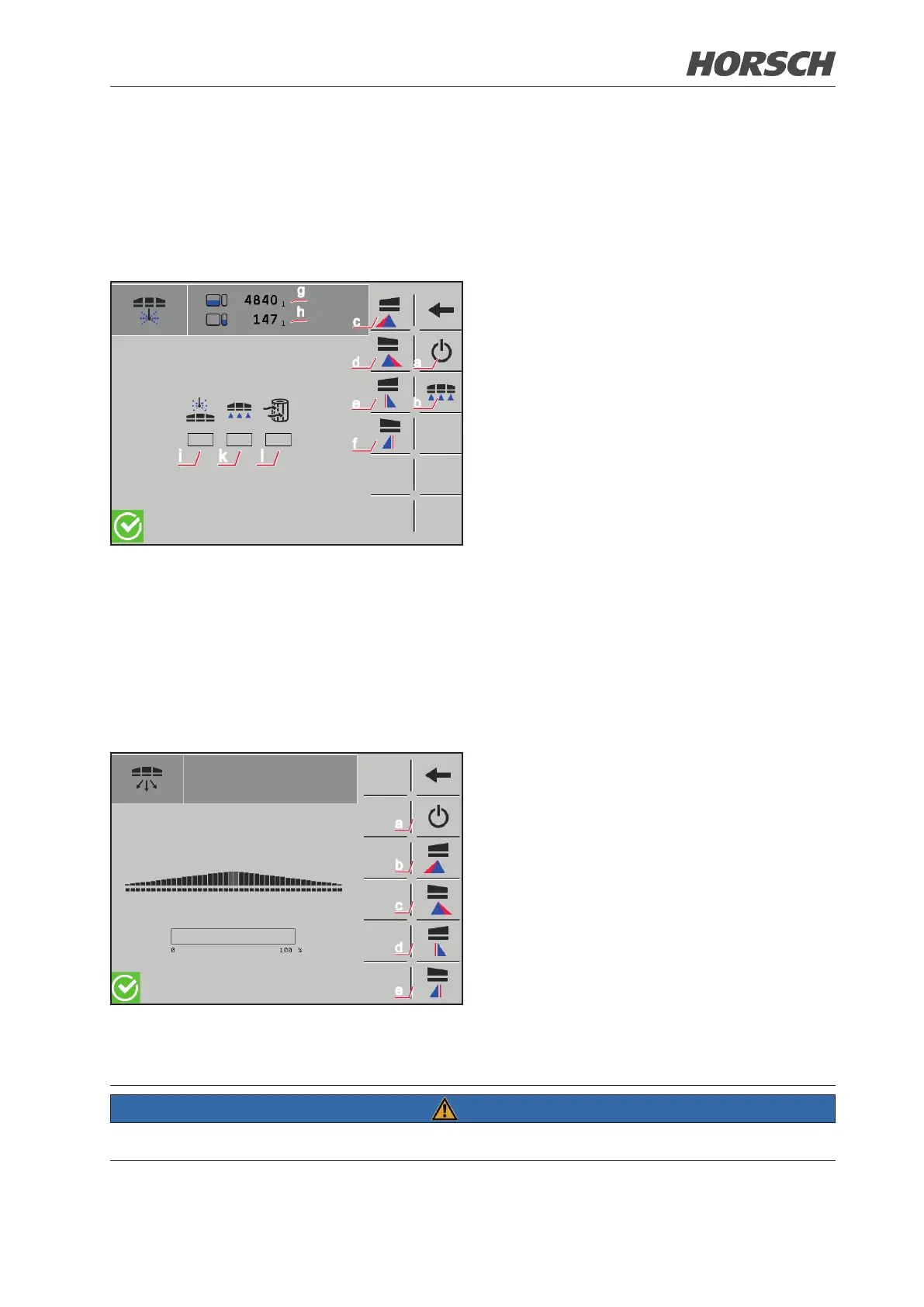

3.2.3.4 Folding boom cleaning (sections)
i k
g
h
l
f
a
b
c
d
e
The bars under the symbols show the status
of cleaning.
(a) Starting/stopping folding boom clean-
ing. At the end of the process, the green
square will go out.
(b) Nozzles open
(c) Cleaning left border nozzle
(d) Cleaning right border nozzle
(e) Cleaning left edge nozzle
(f) Cleaning right edge nozzle
(g) Filling level spraying mixture container
(h) Filling level fresh water tank
(i) Folding boom cleaning
(k) Nozzles open
(l) Filter 󰘱ushing and cleaning the agitator
¾ Each border and edge nozzle must be se-
lected individually to clean it. The border
or edge nozzle can be selected per side.
¾ The program does not start if the fresh
water tank content is too low.
3.2.3.5 Blowing out the spraying nozzles (optional)
b
a
c
d
e
Air is blown through folding boom and noz-
zles for a few seconds to remove residual
moisture.
¾ This procedure may need to be repeated
several times to obtain the desired clean-
ing e󰘯ect.
(a) Start/stop blowing out
(b) activate left border nozzle
(c) activate right border nozzle
(d) activate left edge nozzle
(e) activate right edge nozzle
¾ Each border and edge nozzle must be se-
lected individually to blow it out. The border
or edge nozzle can be selected per side.
NOTE
¾ With an active edge nozzle, the next inside nozzle body is deactivated
