3.2.13 Spraying mixture container lling for CCS Pro variant machines
F
See also External operation of the machine,
Chapter 5.4 (󰘰lling)
a
b

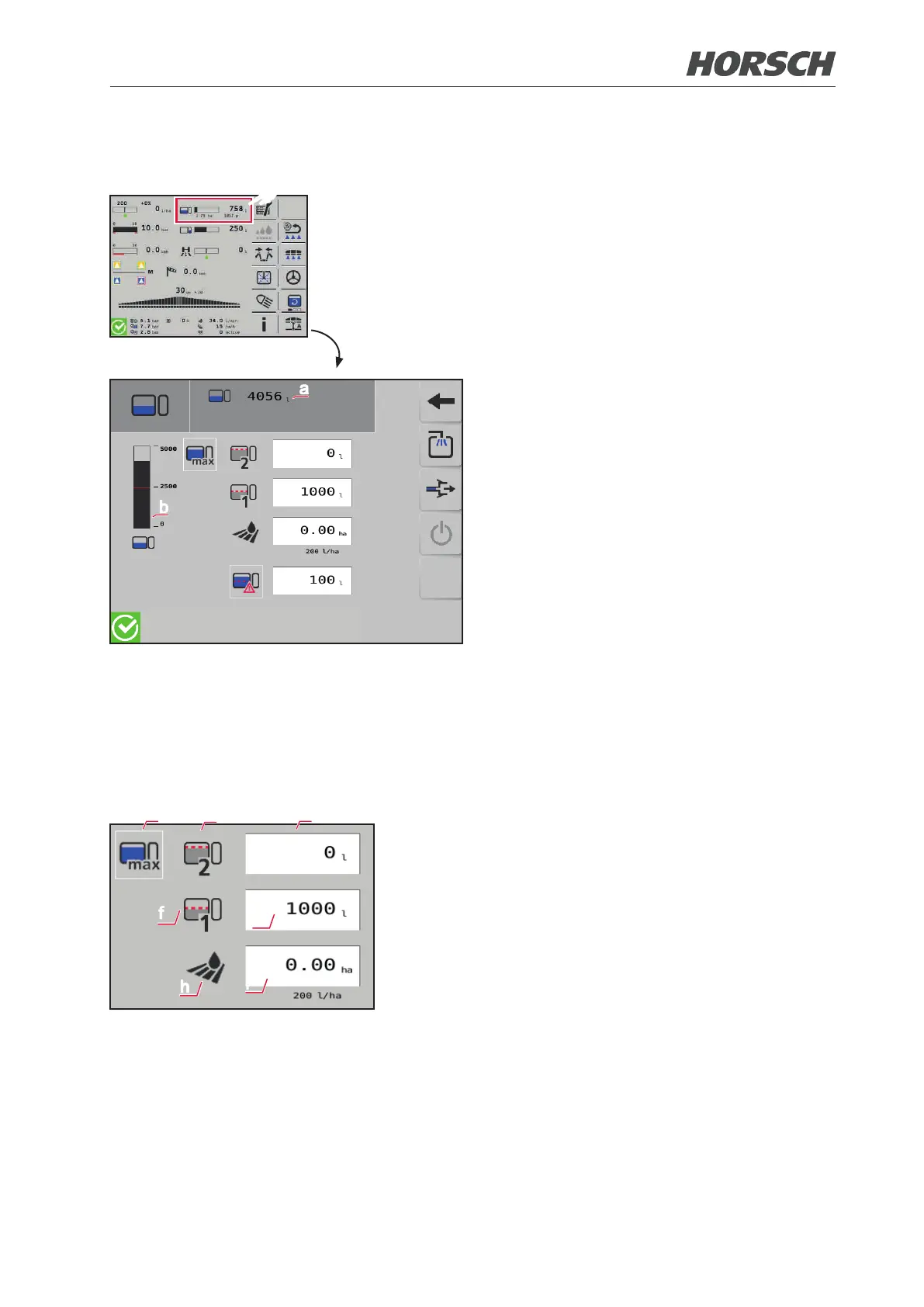

(a) Filling level spraying mixture container
(b) The bar graph indicates the current 󰘰lling
level of the spraying mixture container.
h
i
f
g
c
d
e
Enter the lling quantity:
¾ The green square indicates the selected and active
󰘰lling limit.
(c) The maximum possible 󰘰lling quantity is selected.
¾ The 󰘰lling quantity (e) is set to the rated volume and
cannot be modi󰘰ed.
¾ The 󰘰lling limit max refers to 󰘰lling limit 2 (d).
¾ If 󰘰lling limit max (d) is active, no entry can be made
in the 󰘰eld area to be cultivated (i) since this value
is calculated automatically. If the placing quantity is
changed, the value of the area to be cultivated (i) also
changes.
(d) Enter 󰘰lling limit 2 (automatic 󰘰lling limit).
¾ The required 󰘰lling quantity (e), which is calculated
using the placing quantity and the area to be cultivated
(i), is displayed.
¾ A manual value (e) can also be entered. The value
of the area to be cultivated (i) is calculated.
(f) Enter 󰘰lling limit 1 (manual 󰘰lling limit).
¾ Select the button and enter the quantity manually
in the input 󰘰eld (g). This value is preserved after
a restart.
34 35
