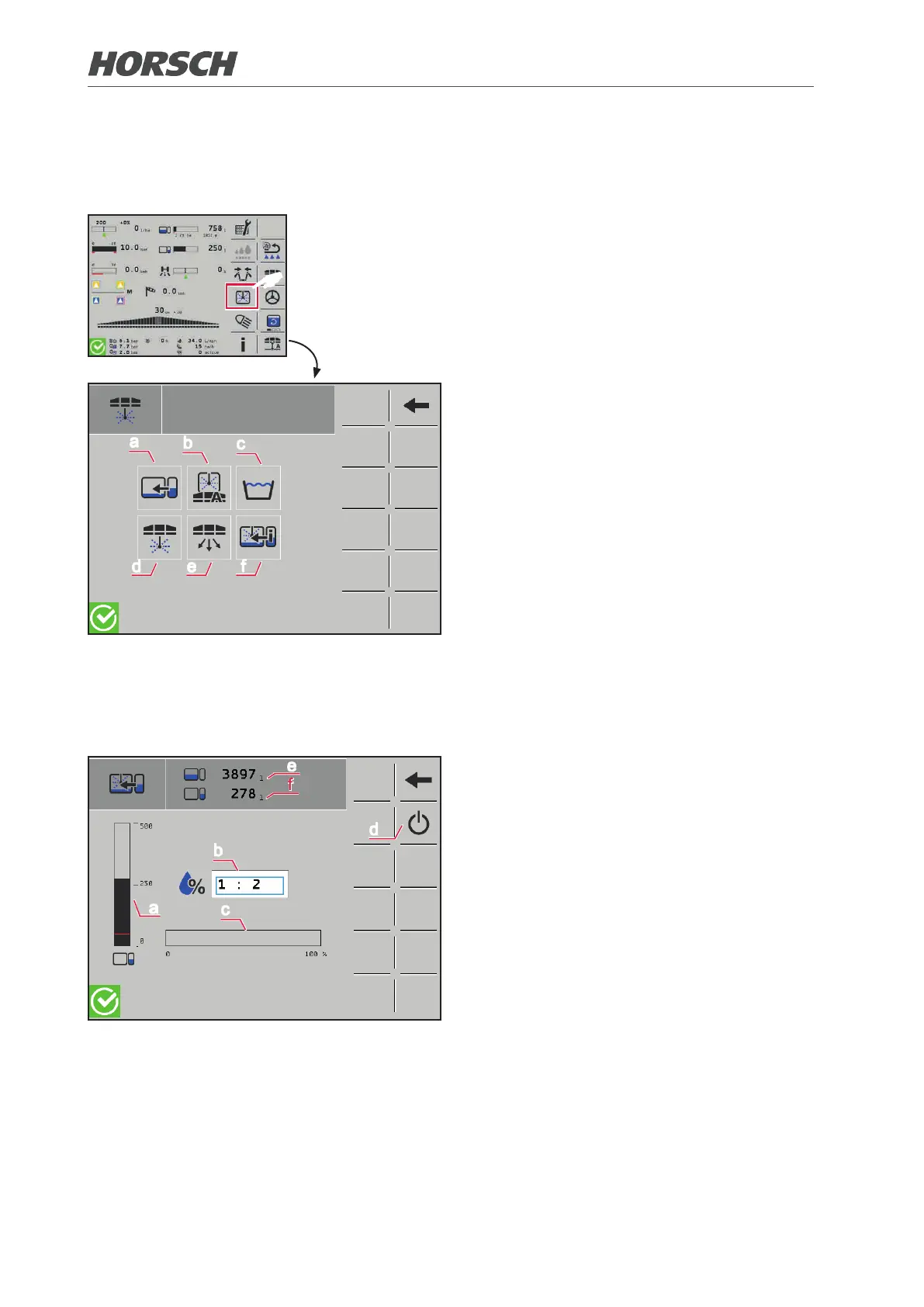

3.2.3 Cleaning with machines of the variant CCS Pro
¾ Select the required cleaning sequences.
F
a
b
c
d e
f
(a) Dilute the spraying mixture or pump fresh
water over into the spraying mixture con-
tainer. (see 3.2.3.1)
(b) Main cleaning of the compete sprayer
(c) Washing program
(d) Boom cleaning (partial cleaning)
(e) Blow spray nozzles out with air.
Spraying mixture or moisture residues will
be forced out (optional).
(f) Cleaning the spraying mixture container
3.2.3.1 Dilution / Pumping over of fresh water
c
b
a
d
f
e
(a) Current 󰘰lling level fresh water. The red
mark identi󰘰es the minimum quantity for
outside cleaning.
(b) Select the ratio of fresh water to spraying
mixture.
(c) Progress of dilution process
(d) Start/stop dilution. At the end of the pro-
cess, the green display will go out.
(e) Filling level spraying mixture container
(f) Filling level fresh water tank
