a
d
e
b
c
g
h
f

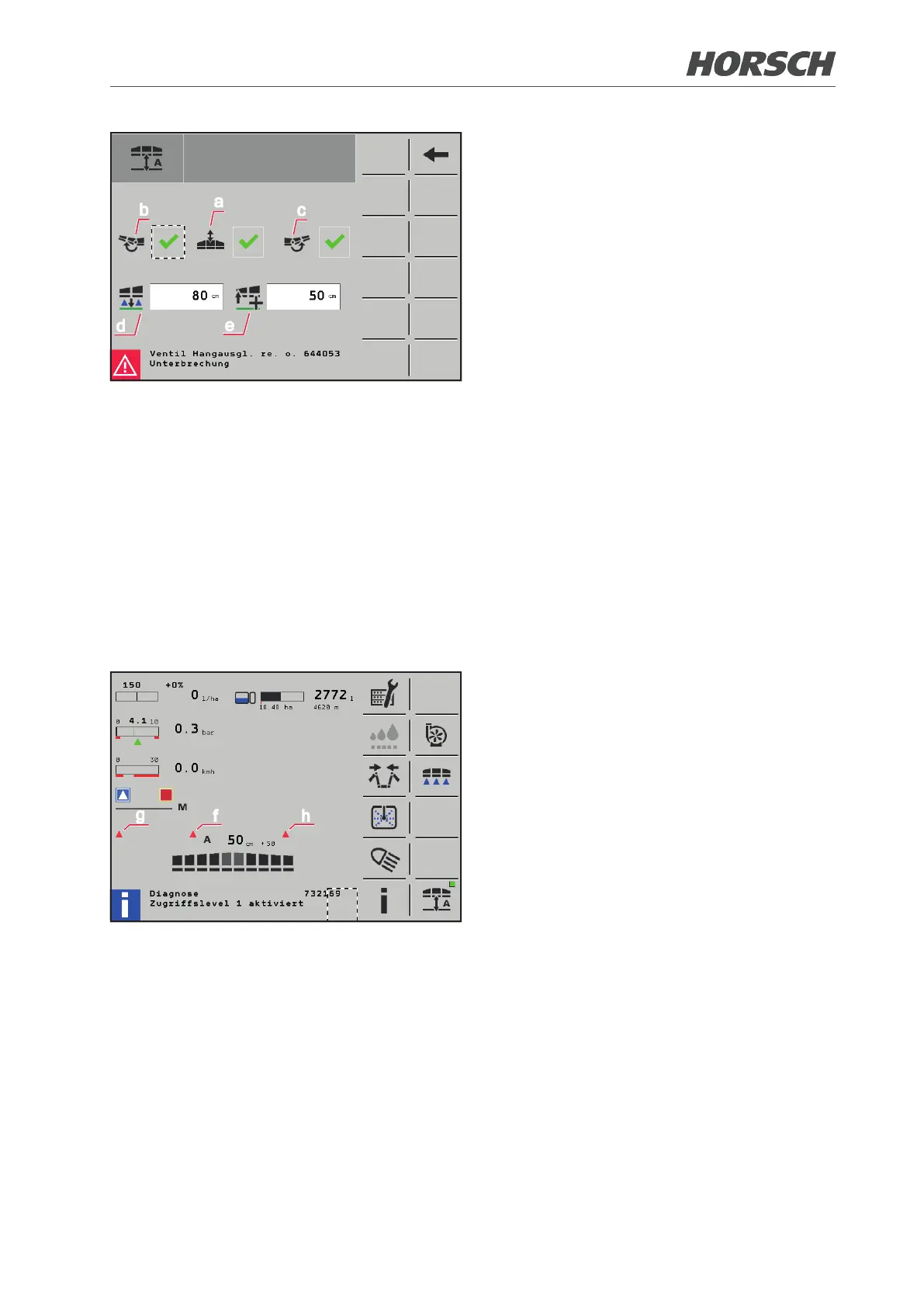

(d) Height above crop (minimum height:
20 cm, values under 20 cm cannot be
entered)
(e) Add-on/oset to lift-out height at the head-
land (nozzles closed, e.g. when switching
o the sprayer)
Manual folding boom control:
¾ For 5-piece folding booms and 7-piece fold-
ing booms without coupling bar:
With reduced folding of the folding boom
where only the inside wings are unfolded,
only manual folding boom control is pos-
sible.
In this case, control takes place via the
middle section. The middle section can be
turned via the multi-function handle.
Automatic folding boom control:
¾ With automatic folding boom control and
activated circulation, the folding boom can
be lowered to working height when travel-
ling at the headland by touching the Lower
parallelogram function. Thus, the folding
boom is already again at working height
when the nozzles are opened.
(f) Manual override middle section
(g) Manual override inside wing left
(h) Manual override inside wing right
¾ When the red triangles are visible, the
preselected working height is manually
bypassed.
Example: If the spraying height is set to
50 cm and the parallelogram is lifted per
joystick in automatic mode, the "new" height
is set as working height. The same applies
to the inside wing control (g and h).
If the folding boom control is switched o
and then switched on again, the previously
entered height of 50 cm is accessed again.
Likewise, the height entered is reused
when the parallelogram or the wings are
controlled downward by briey pressing
the button.
12 13
