F
a
b
c
d
e

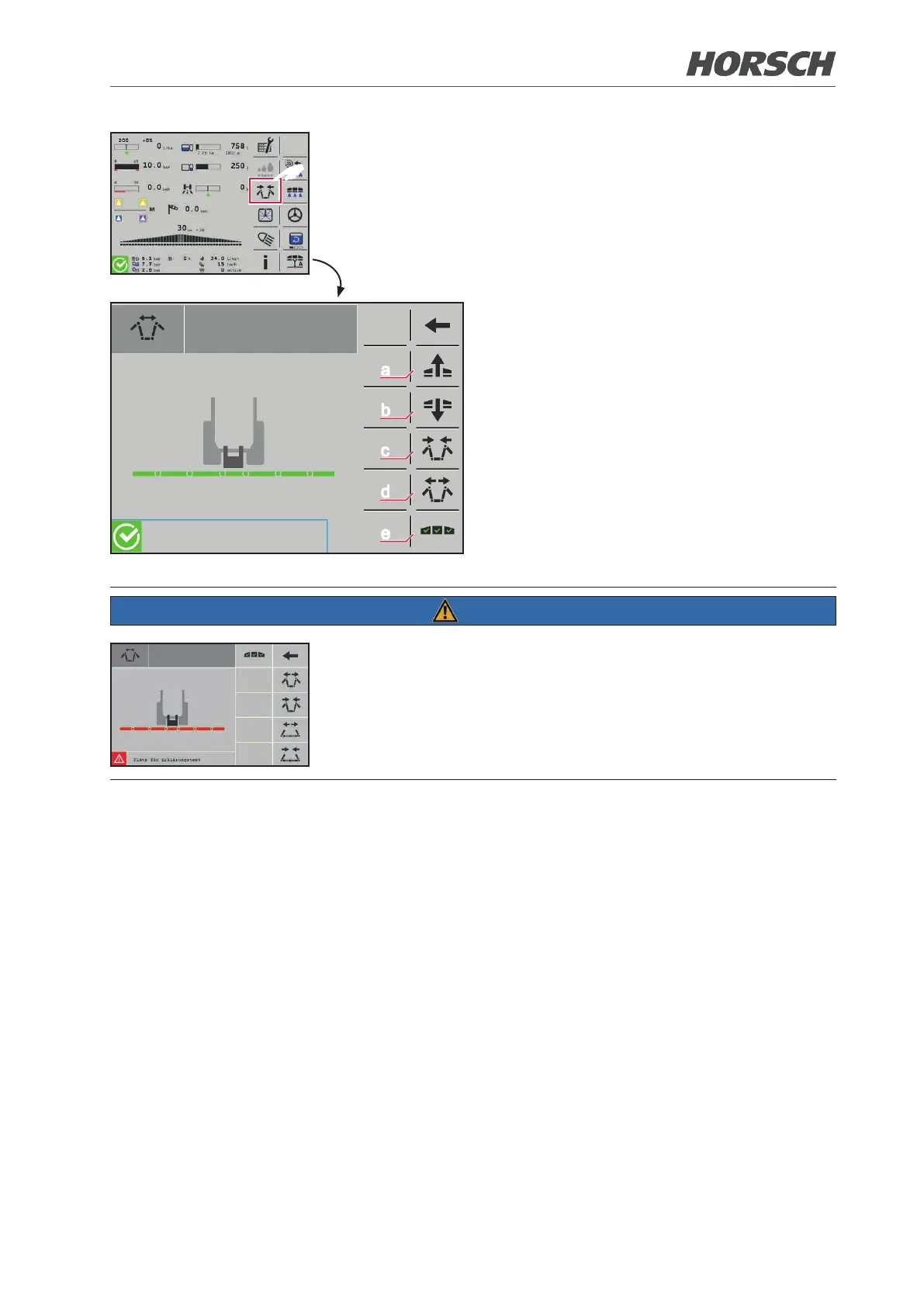

¾ The symbol must be touched and depressed
during the operation.
(a) Lift folding boom
(b) Lower folding boom
(c) Fold in spraying boom completely (includ-
ing locking, lifting, lowering)
(d) Unfold spraying boom completely (includ-
ing unlocking, lifting, lowering)
(e) Sub-page for reduced folding
NOTE
The folding boom cannot be folded when shown in red!
¾ Analyse the fault (error memory)!
¾ Folding the folding boom is possible via manual folding (emergency
folding), see chapter Manual folding in Diagnostics / Settings / Information.
¾ Contact HORSCH Service.
