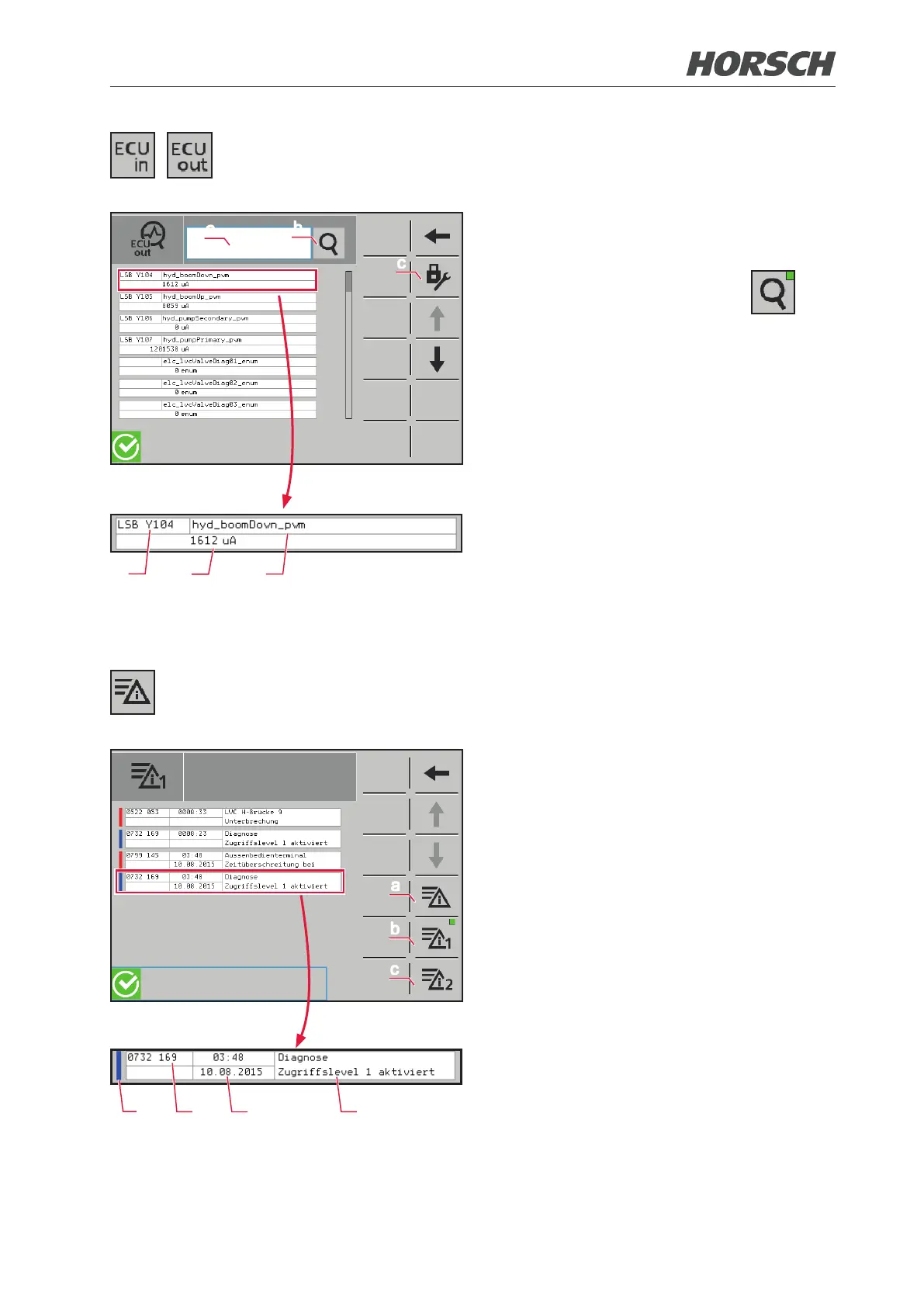

Inputs / Outputs
d
e f
a
b
c
(a) Search for input / output designation or
component number.
(b) Magnifying symbol active:
Display of inputs or outputs found via the
search function (a).
Magnier function inactive:
All inputs or outputs will be displayed.
(c) Access to protected area
(d) Component designation in circuit diagram
(e) Value currently applied to the job com-
puter
(f) Input/output designation
Additional pages can be accessed by scroll-
ing.
Messages
a
b
c
d
f
g
e
A list with error messages that have currently
appeared, is shown in chronological order.
(a) Current messages
(b) Error list 1: red errors as they have oc-
curred
(c) Error list 2: one-time list of the red errors
(d) Message category (yellow = warning
message, red = alarm, blue = notes)
(e) Error code
(f) Time of occurrence (time and date)
(g) Explanatory text
52 53
