NOTE
The folding process must be performed while the machine is at standstill since the folding boom
may otherwise sustain damages or breakage.
¾ If the folding boom is not secured at a travel speed greater than 2 km/h the warning message
Check the folding boom position
is displayed on the terminal.
¾ If the folding process is carried out at a travel speed greater than 2 km/h the warning message
Fold only while stopped
is displayed on the terminal.
¾ If the folding process is carried out at a travel speed greater than 5 km/h and the folding boom
is not secured, an alarm message is displayed on the terminal and the folding process stops
automatically!
Bring the machine to a stop and press the button for folding again to continue the folding process.
a
b
c
e
f
f
g
h
g
h
d

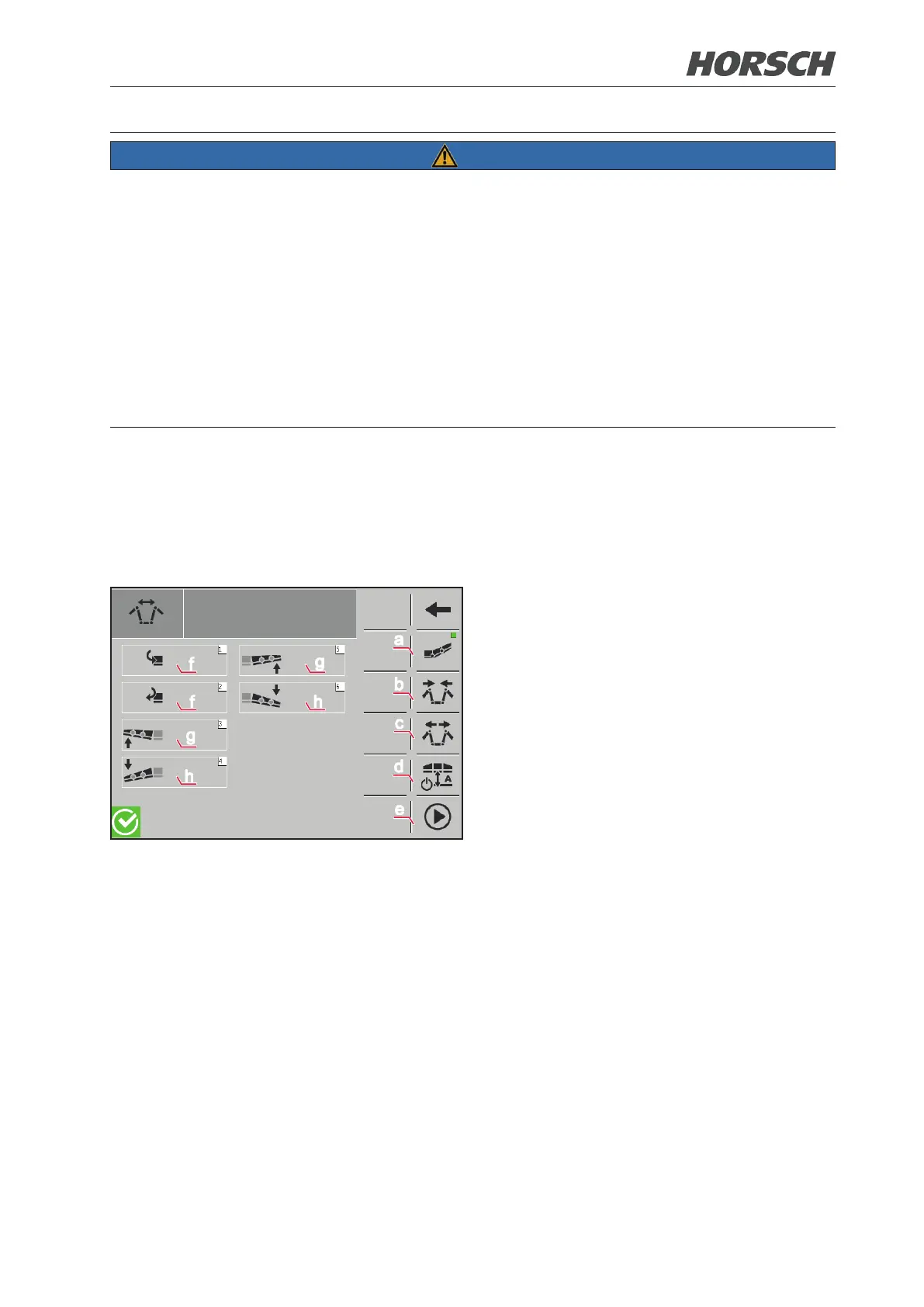

Levelling the folding boom
¾ If part of the folding boom shall be levelled
/ folded, the corresponding function must
be selected. The symbol (e) must be sub-
sequently selected and held during the
procedure to carry out the function. The
selected function is stopped again as soon
as the symbol (e) is no longer pressed.
(a) Levelling the folding boom, folding boom
angle lifting / lowering, turning the middle
section
(b) Folding
(c) Unfolding
(d) Deactivating the BoomControl folding
boom control
(e) Start/stop function
(f) Turn middle section left / right
(g) Lift wing left (3) / right (5)
(h) Lower wing left (4) / right (6)
60 61
