12508 chassis views

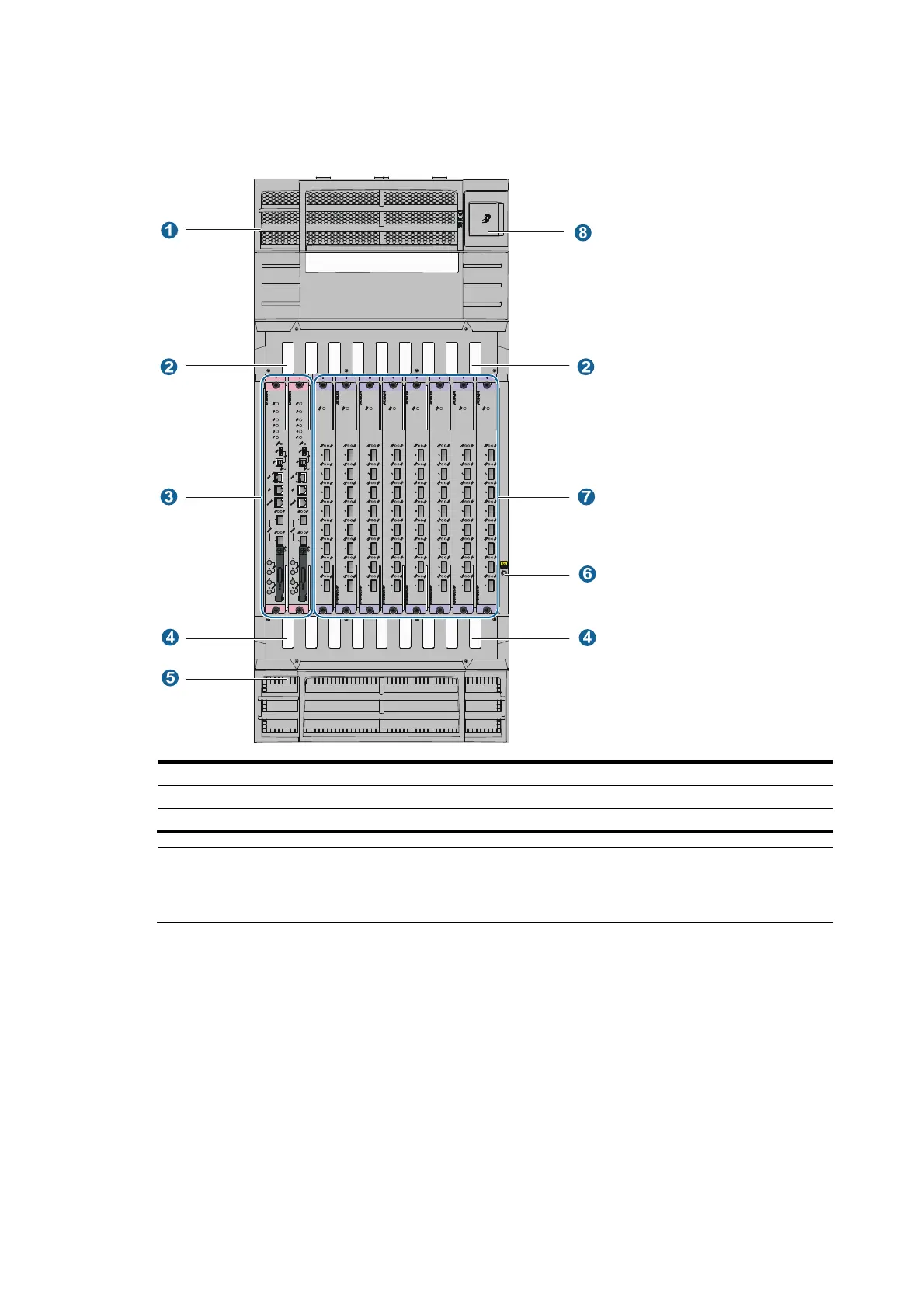

Figure 3 12508 front view
(1) Power frame cover (2) Upper cabling rack (3) MPU slots (slots 0 and 1)
(4) Lower cablin
g
rack (5) Chassis air intake vents (6) ESD-preventive wrist strap port
(7) LPU slots (slots 2 to 9) (8) Power switch cover
NOTE:
The power frame cover protects the power frame air filter and the power frame slot. See "Power supply
system."
