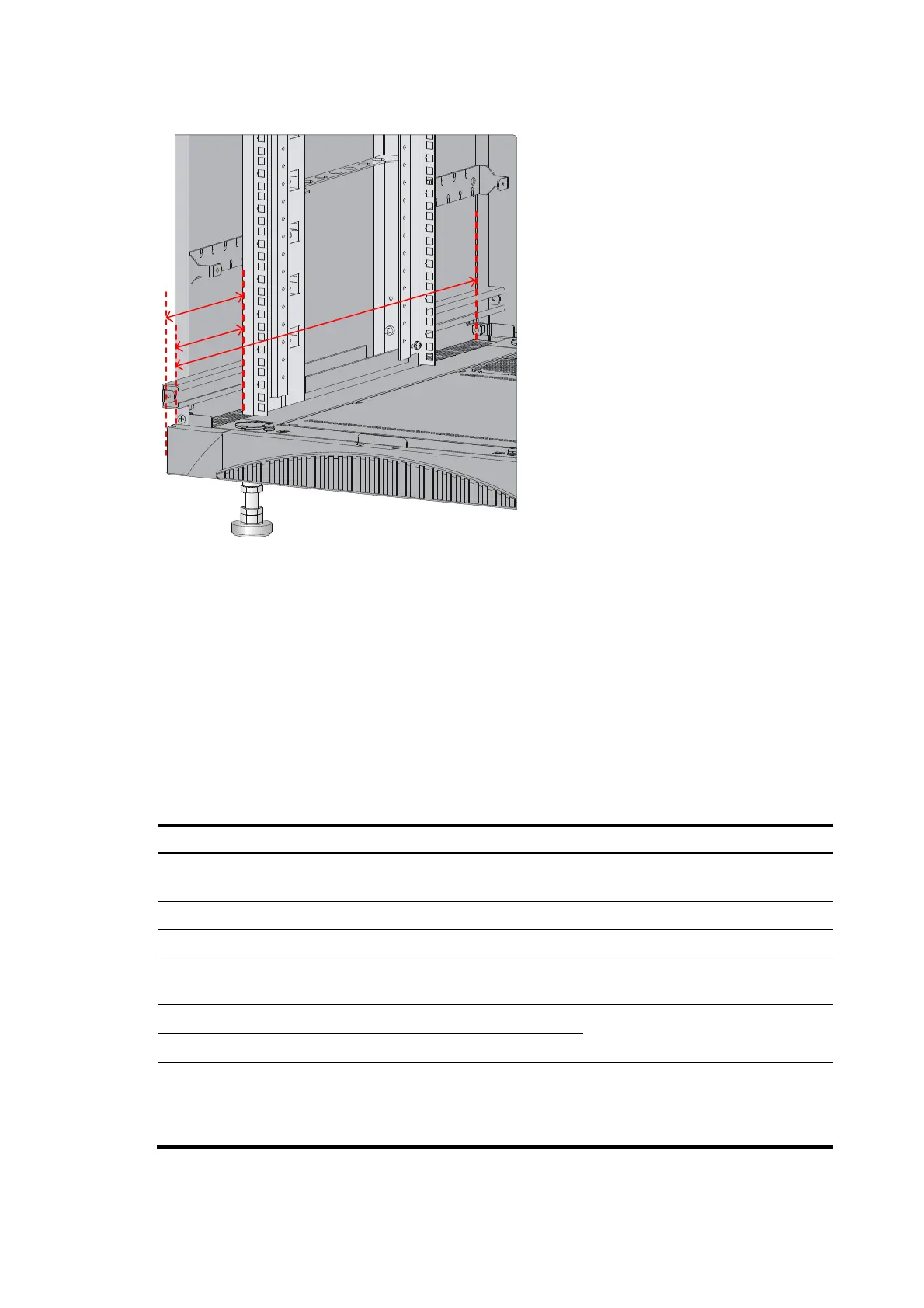

Figure 21 Rack depth
• The rack is available with standard slide rails (or rack shelves), cage nuts, and screws.
• The slide rails (or rack shelves) can support the weight of the switch chassis and its accessories.
• The rack can be well grounded.
• The rack has good cooling system, and the porosity of the front and back doors is greater than
50%.
Installation tools
You can use the following tools for installation.
Accessories supplied by the switch
Item Quantit
Pur
ose
Console cable 1
Connecting the console port and the
configuration terminal for switch login
Grounding cable 1 Grounding the switch
Mounting brackets 1 pair Fixing the switch to the rack
M4*8 screw 1 set
Fixing the mounting brackets to the
switch
M6*12 screw 1 set
Fixing the switch to the rack
M6 cage nut 1 set
Air deflector 1
Installed at the rear of the chassis to
block air from entering the chassis
(optional for the 12508 and 12518,
not available for the 12504)
>
1
8
0
m
m
>
1
5
5
m
m
>
8
0
0
m
m
