101
LPU model Power consum
p
tion Net wei
g
ht Dimensions (H × W × D)
LST1FW3A1 128 W to 168 W 4.8 kg (10.58 lb)
40.1 × 399.2 × 498.8 mm
(1.58 × 15.72 × 19.64 in)
Fan trays

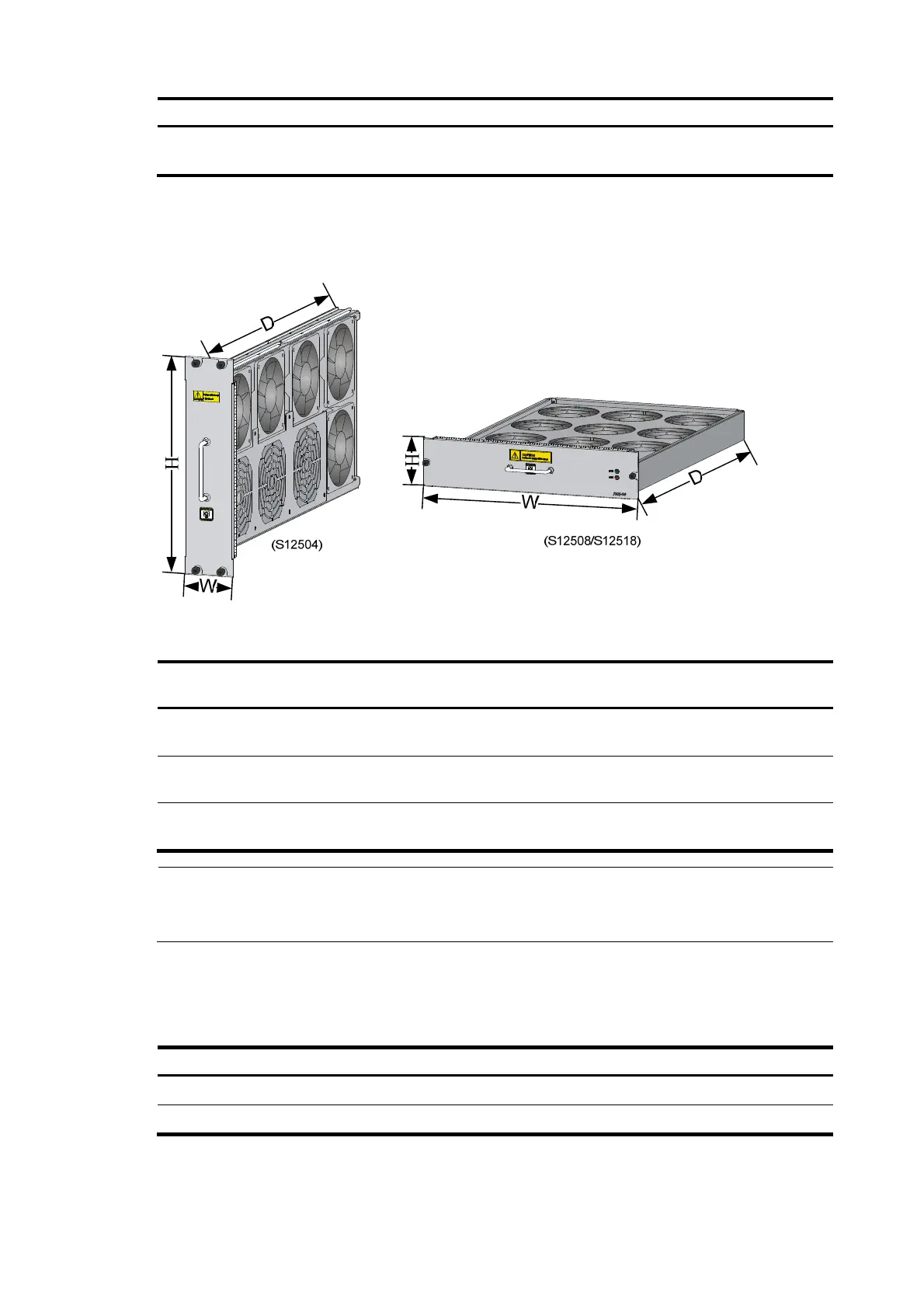

Figure 78 Fan tray views
Table 33 Fan tray specifications
Fan tray
Power consumption of a
sin
g
le fan tra
y
Net weight Dimensions (H × W × D)
12504 fan tray 22 W to 175 W 6.02 kg (13.27 lb)
327 × 77 × 667 mm (12.87 ×
3.03 × 26.26 in)
12508 fan tray 33 W to 265 W 9.59 kg (21.14 lb)
92 × 442 × 662 mm (3.62 ×
17.40 × 26.06 in)
12518 fan tray 120 W to 650 W 9.57 kg (21.10 lb)
92 × 442 × 662 mm (3.62 ×
17.40 × 26.06 in)
NOTE:
The fan trays for the 12504 are vertically oriented, and those for the 12508 and 12518 are horizontall
y
oriented.
Power components
Table 34 Weight of the power components
Power su
pp
l
y
Wei
g
ht
Power entry module (PEM) 1.61 kg (3.55 lb)
Power monitor module 0.85 kg (1.87 lb)
