21

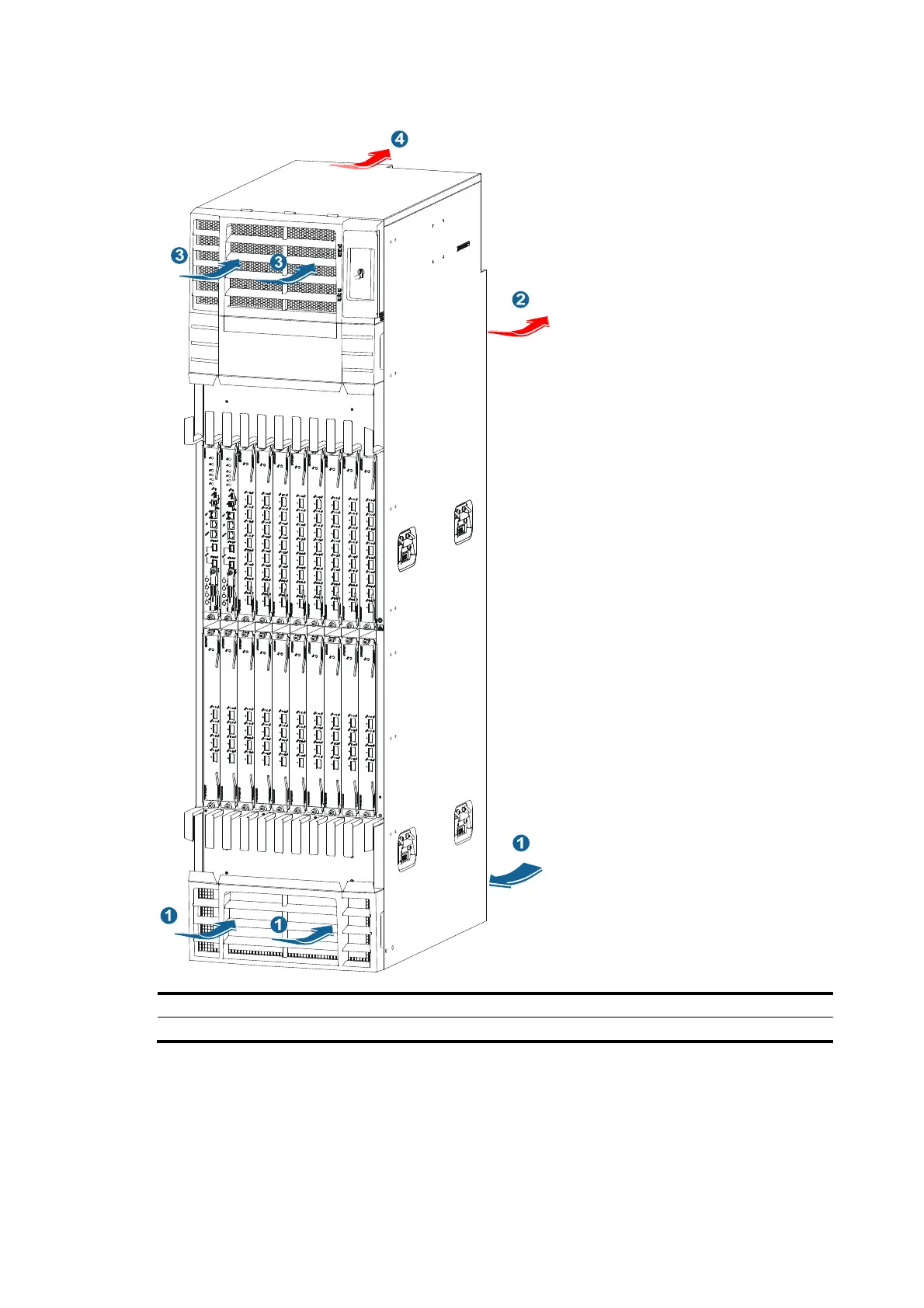

Figure 19 Airflow through a 12518 chassis
(1) Chassis air intake vents (2) Chassis air exhaust vents
(3) Power supply air intake vents (4) Power supply air exhaust vents
Space
For easy maintenance, follow these guidelines:
