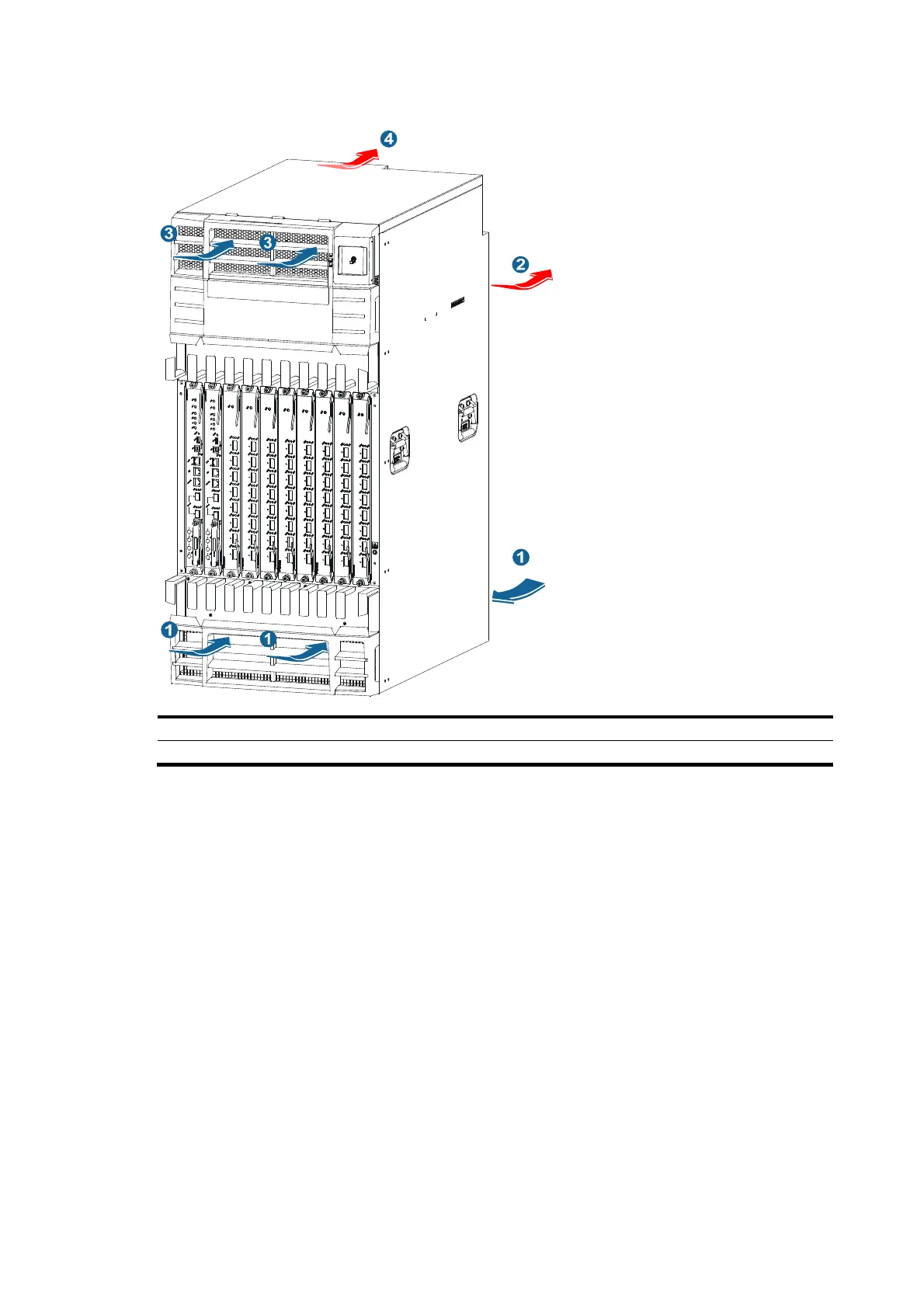

Figure 18 Airflow through a 12508 chassis
(1) Air intake direction of the chassis (2) Air exhaust direction of the chassis
(3)
A
ir intake direction of the power supplies (4)
A
ir exhaust direction of the power supplies
