HP 12500 Series - Installing the Mounting Brackets

33

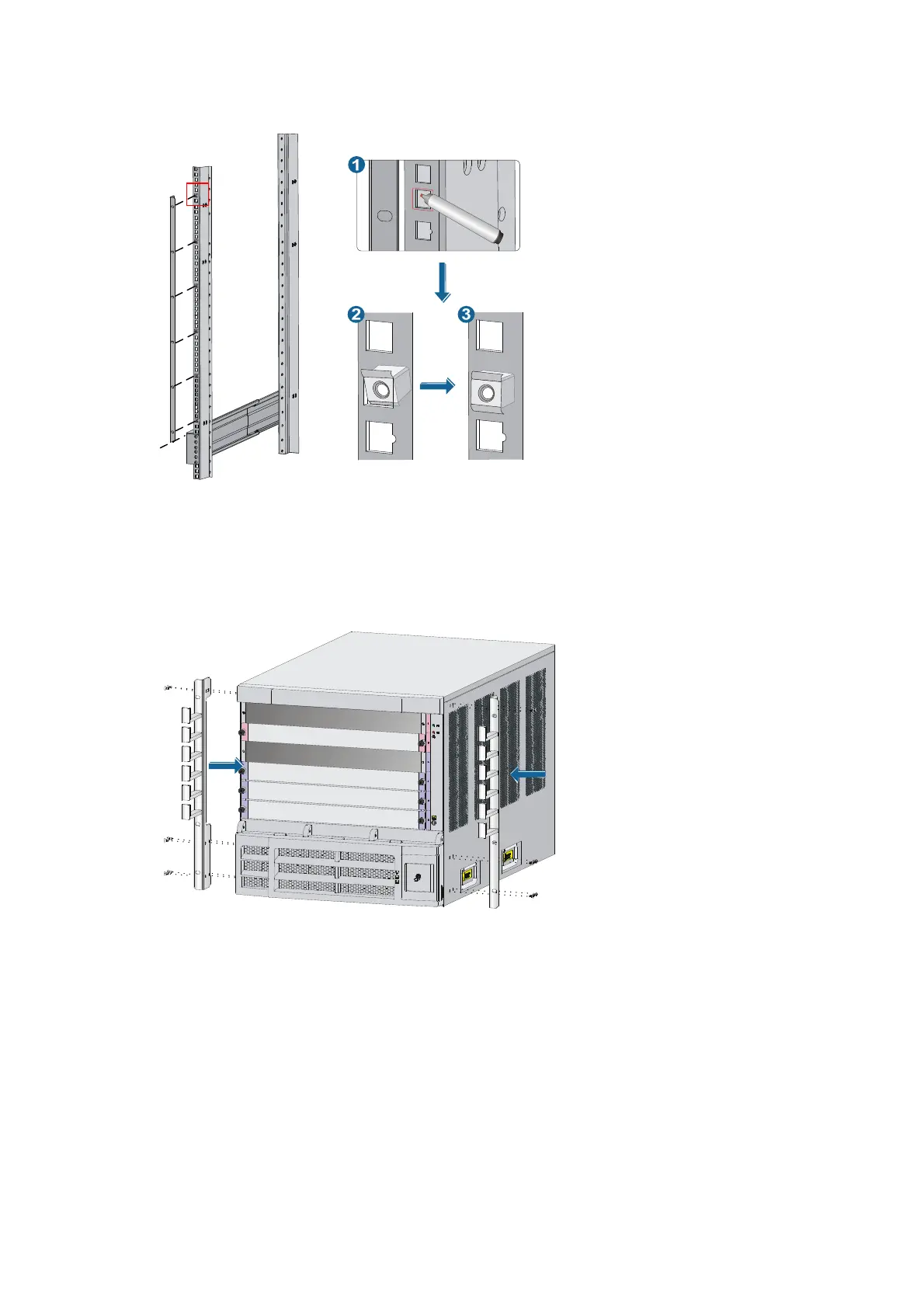

Figure 30 Installing the cage nuts
Installing the mounting brackets
Attach the mounting brackets onto the left and right sides of the switch.
Figure 31 Installing the mounting brackets (for the 12504)
