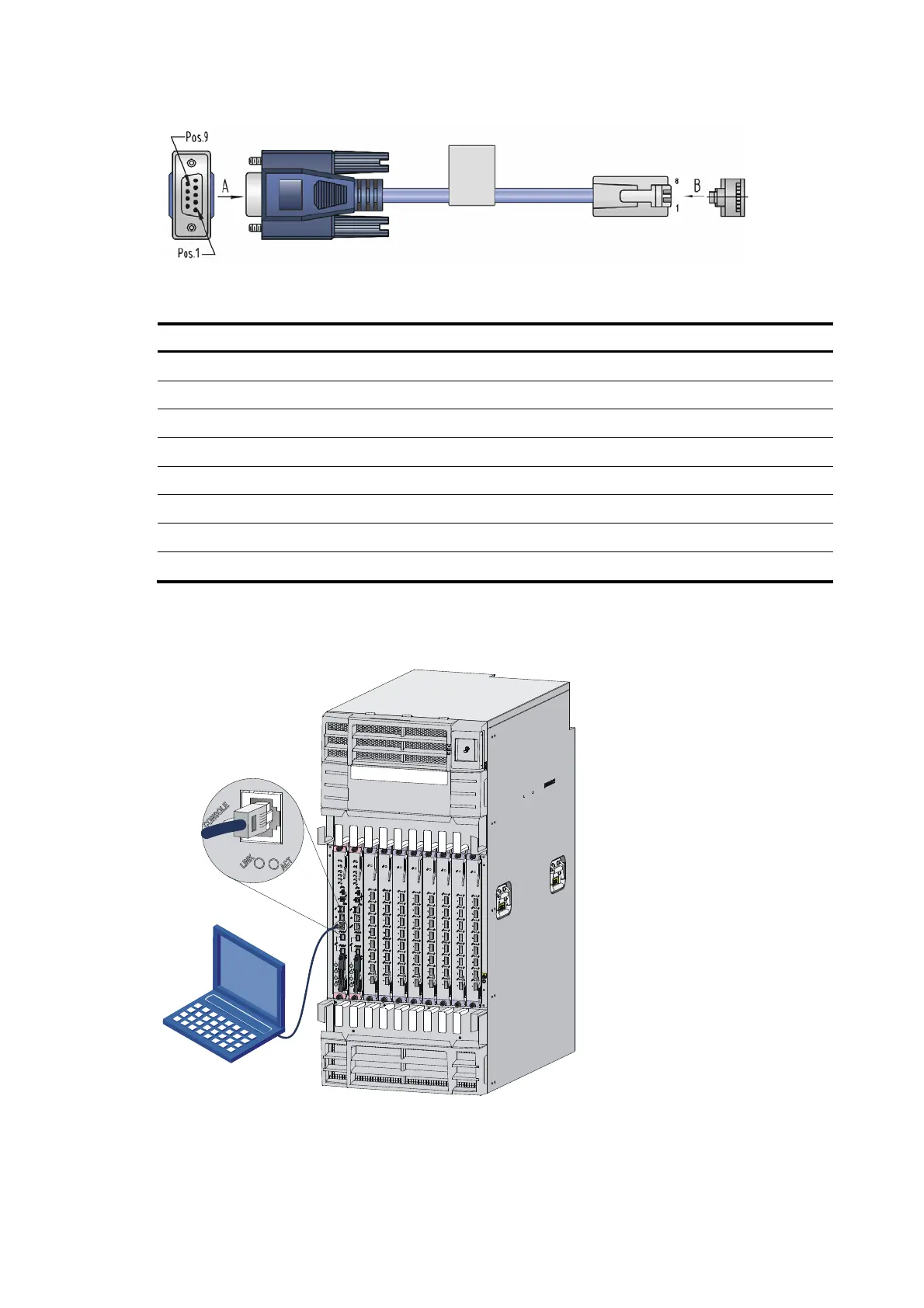

Figure 47 Console cable
Table 14 Console cable pinouts
RJ-45
p
in Si
g
nal DB-9
p
in Si
g
nal
1 RTS 8 CTS
2 DTR 6 DSR
3 TXD 2 RXD
4 CD 5 SG
5 GND 5 SG
6 RXD 3 TXD
7 DSR 4 DTR
8 CTS 7 RTS
Connection procedure
Figure 48 Connecting the switch and the PC through the console port
To connect the console cable:
