The Ethernet II encapsulation format is used here. Besides the Ethernet II encapsulation format, Ethernet
also supports other encapsulation formats, including 802.2 LLC, 802.2 SNAP, and 802.3 raw. The
VLAN tag fields are added to frames encapsulated in these formats for VLAN identification.
In the header of a traditional Ethernet data frame, the field after the destination MAC address and the
source MAC address is the Type field, which indicates the upper layer protocol type, as shown in Figure
37.

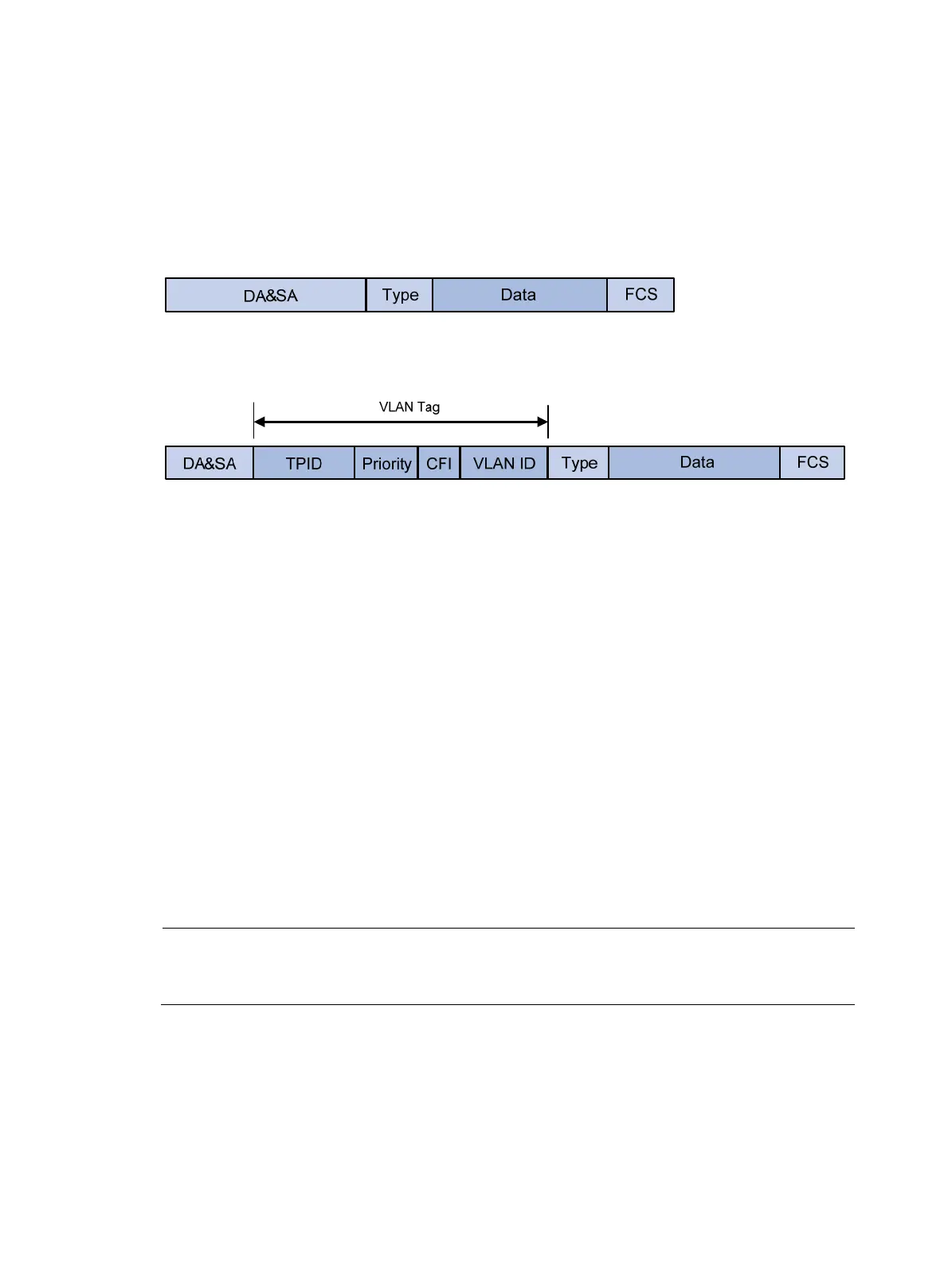

Figure 37 Traditional Et
hernet frame format
IEEE 802.1Q inserts a four-byte VLAN tag after the DA&SA field, as shown in Figure 38.
Figure 38 Position and format of VLAN tag
The fields of a VLAN tag are as follows:
• TPID—The 16-bit TPID field indicates whether a frame is VLAN-tagged. By default, the TPID value is
0x8100, which indicates that the frame is VLAN-tagged. Devices vendors can set the TPID to
different values. For compatibility with these devices, modify the TPID value so that frames carry a
TPID value identical to the value of a particular vendor, allowing interoperability with devices from
that vendor. The device determines whether a received frame carries a VLAN tag by checking the
TPID value. When the TPID value of a frame is the configured value or 0x8100, the frame is
considered as a VLAN-tagged frame. For information about commands used to modify TPID values,
see Layer 2—LAN Switching Command Reference.
• Priority—The 3-bit priority field indicates the 802.1p priority of the frame.
• CFI—The 1-bit CFI field indicates whether the MAC addresses are encapsulated in standard format
when packets are transmitted across different media. A value of 0 indicates that MAC addresses
are encapsulated in standard format. A value of 1 indicates that MAC addresses are encapsulated
in a non-standard format. The value of this field is 0 by default.
• VLAN ID—The 12-bit VLAN ID field identifies the VLAN that the frame belongs to. The VLAN ID
range is 0 to 4095. Because 0 and 4095 are reserved, a VLAN ID actually ranges from 1 to 4094.
A network device handles an incoming frame depending on whether the frame is VLAN tagged, and
information about the VLAN tags, if any. For more information, see "Introduction to port-based VLAN."
NOTE:
hen a frame carryin
multiple VLAN ta
s passes throu
h, the switch processes the frame accordin
to
its outer VLAN tag, and transmits the inner tags as payload.
VLAN types
You can implement VLANs based on the following criteria:
• Port
• MAC address
• Protocol
