65
MSTP provides the following features:
• MSTP divides a switched network into multiple regions, each of which contains multiple spanning
trees that are independent of one another.
• MSTP supports mapping VLANs to spanning tree instances by means of a VLAN-to-instance
mapping table. MSTP can reduce communication overheads and resource usage by mapping
multiple VLANs to one instance.
• MSTP prunes a loop network into a loop-free tree, which avoids proliferation and endless cycling of
packets in a loop network. In addition, it supports load balancing of VLAN data by providing
multiple redundant paths for data forwarding.
MSTP basic concepts
Figure 20 shows a switched network that comprises four MST regions, each MST region comprising four
MSTP devices. Figure 21 sho
ws the networking topology of MST region 3.

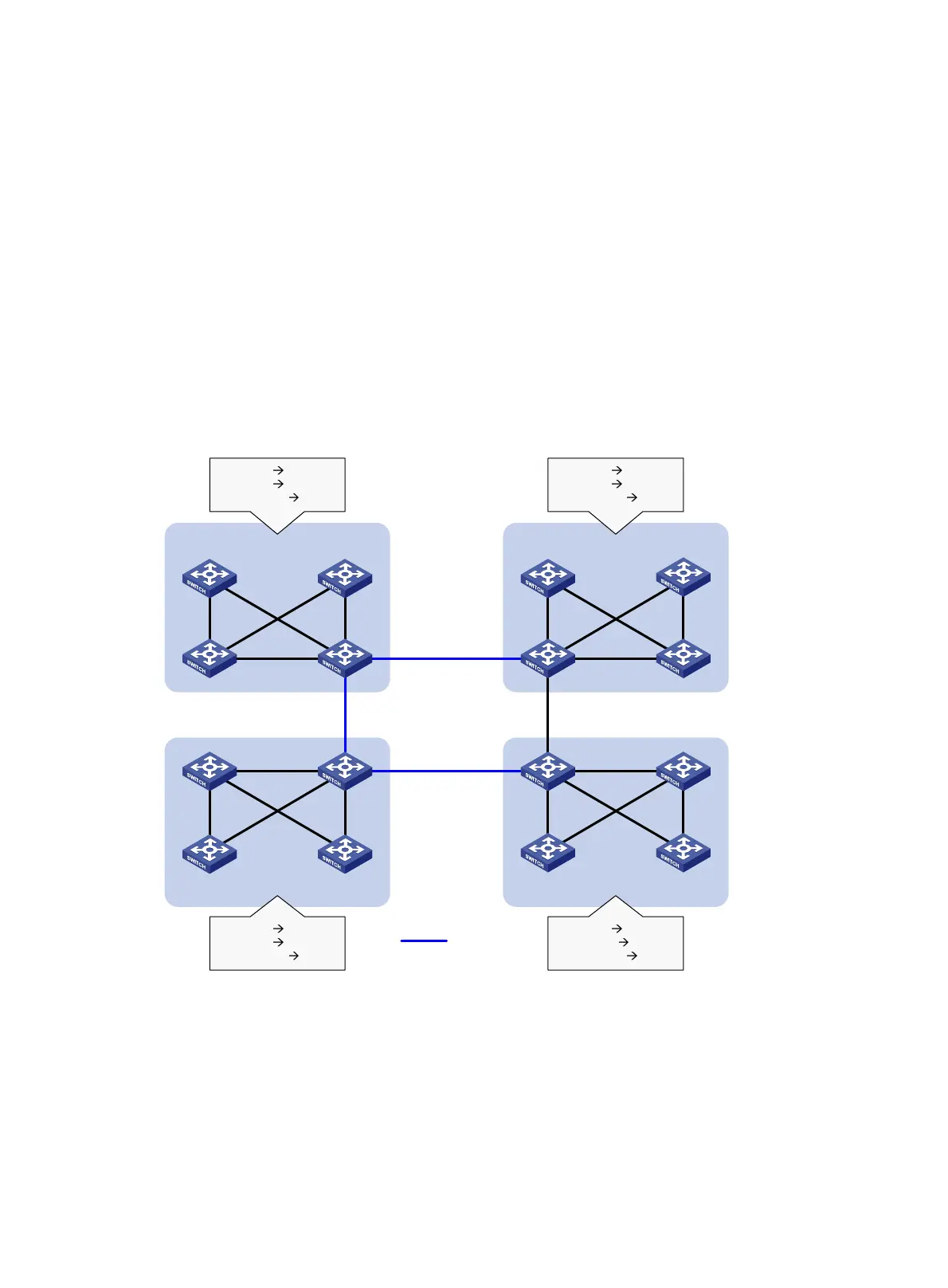

Figure 20 Basic concepts in MSTP
MST region 1
MST region 2 MST region 3
MST region 4
VLAN 1 MSTI 1
VLAN 2
MSTI 2
Other VLANs
MSTI 0
VLAN 1 MSTI 1
VLAN 2
MSTI 2
Other VLANs
MSTI 0
VLAN 1 MSTI 1
VLAN 2
MSTI 2
Other VLANs
MSTI 0
VLAN 1 MSTI 1
VLAN 2&3
MSTI 2
Other VLANs
MSTI 0
CST
