• Device A and Device B are connected through their ports GigabitEthernet 1/0/1.
• Enable GVRP and configure the normal registration mode on ports to enable the registration and
deregistration of dynamic and static VLAN information between the two devices.

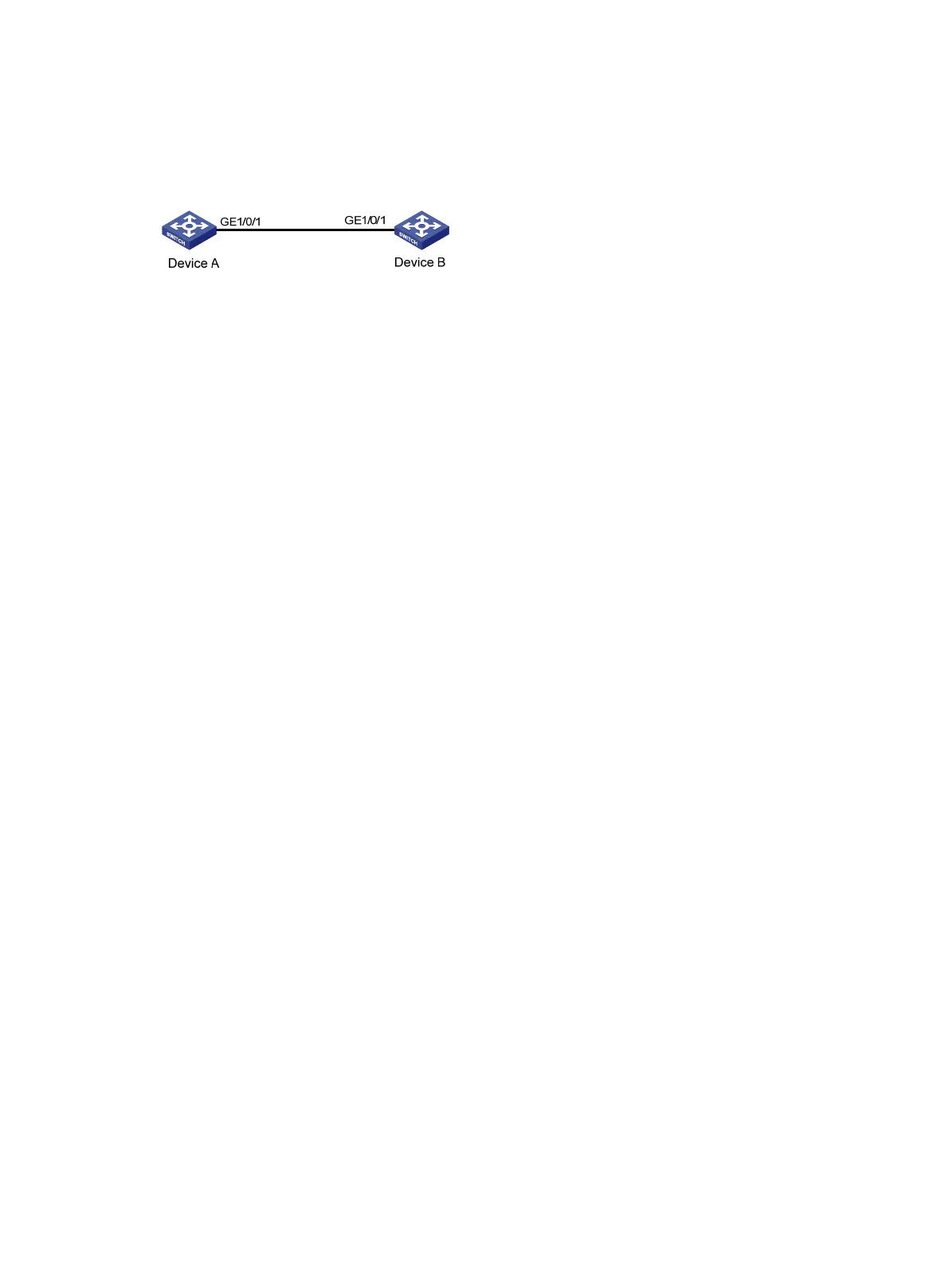

Figure 56 Network diagram
Configuration procedure
1. Configure Device A:
# Enable GVRP globally.
<DeviceA> system-view
[DeviceA] gvrp
# Configure port GigabitEthernet 1/0/1 as a trunk port, and assign it to all VLANs.
[DeviceA] interface gigabitethernet 1/0/1
[DeviceA-GigabitEthernet1/0/1] port link-type trunk
[DeviceA-GigabitEthernet1/0/1] port trunk permit vlan all
# Enable GVRP on trunk port GigabitEthernet 1/0/1.
[DeviceA-GigabitEthernet1/0/1] gvrp
[DeviceA-GigabitEthernet1/0/1] quit
# Create VLAN 2 (a static VLAN).
[DeviceA] vlan 2
[DeviceA-vlan2] quit
2. Configure Device B:
# Enable GVRP globally.
<DeviceB> system-view
[DeviceB] gvrp
# Configure port GigabitEthernet 1/0/1 as a trunk port, and assign it to all VLANs.
[DeviceB] interface gigabitethernet 1/0/1
[DeviceB-GigabitEthernet1/0/1] port link-type trunk
[DeviceB-GigabitEthernet1/0/1] port trunk permit vlan all
# Enable GVRP on trunk port GigabitEthernet 1/0/1.
[DeviceB-GigabitEthernet1/0/1] gvrp
[DeviceB-GigabitEthernet1/0/1] quit
# Create VLAN 3 (a static VLAN).
[DeviceB] vlan 3
[DeviceB-vlan3] quit
3. Verify the configuration:
Use the display gvrp local-vlan command to display the local VLAN information that GVRP
maintains on ports. For example:
# Display the local VLAN information that GVRP maintains on port GigabitEthernet 1/0/1 of
Device A.
[DeviceA] display gvrp local-vlan interface gigabitethernet 1/0/1
Following VLANs exist in GVRP local database:
