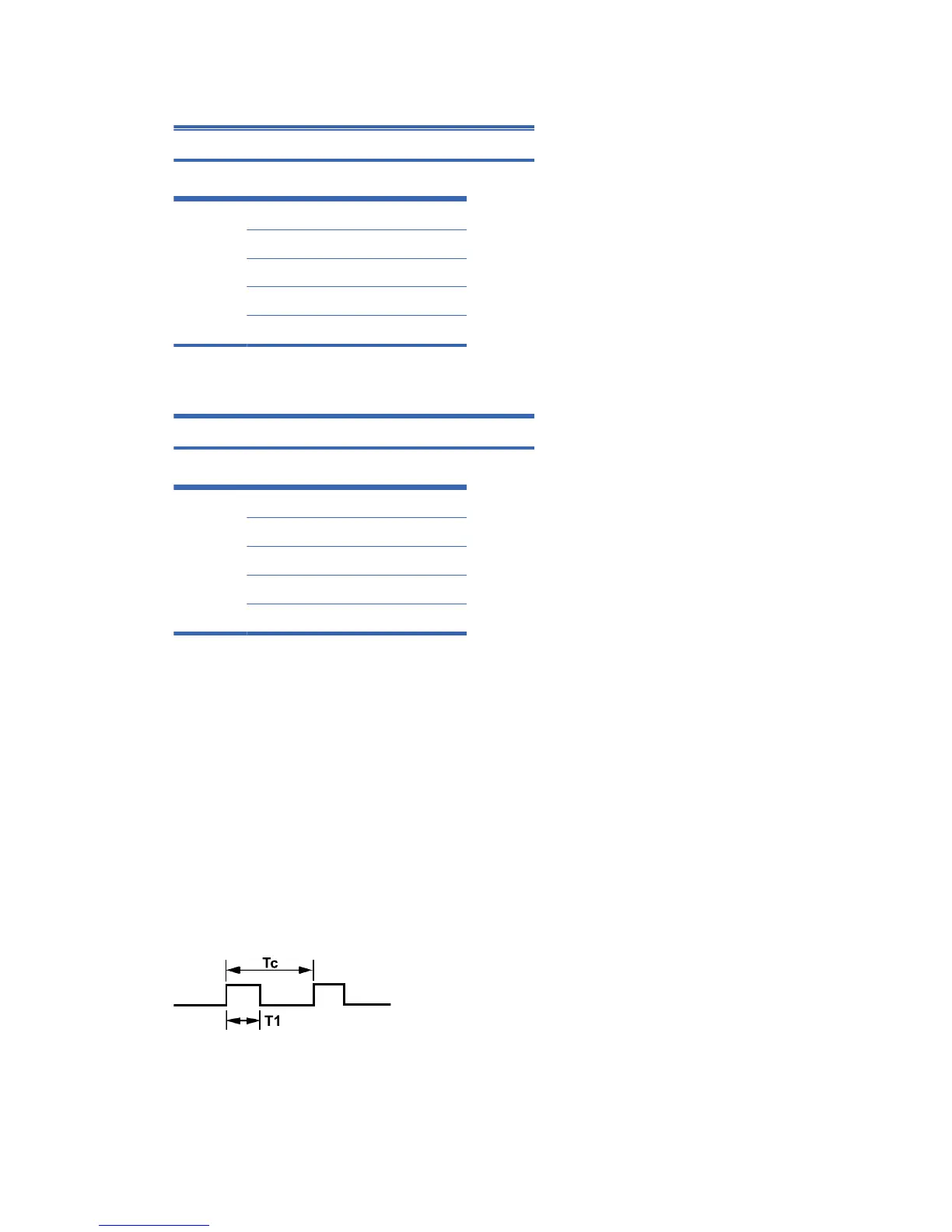

[x][b][][Set ID][][Data][Cr]
[Data] 60H : RGB (PC)
90H : HDMI/DVI (DTV)
A0H : HDMI/DVI (PC)
B0H: Display port(HD-DVD)
C0H: Display port(PC)
Acknowledgement
[b][][Set ID][][OK][Data][x]
[Data] 60H : RGB (PC)
90H : HDMI/DVI (DTV)
A0H : HDMI/DVI (PC)
B0H: Display port(HD-DVD)
C0H: Display port(PC)
IR codes
Use this method to connect your wired remote control port on the display.
Remote Control IR Code
Output waveform
ł Single pulse, modulated with 37.917kHz signal at 455kHz
ł Carrier Frequency
Ń
FCAR = 1/Tc=fosc/12
Ń Duty Ratio = T1/Tc = 1/3
126 Appendix C Command reference ENWW
