Connecting RGB
1. For analog operation, connect the D-Sub signal cable to the RGB IN (1) connector on the rear of
the display and the other end to the connector (2) on the media player/computer.
NOTE: If connecting to a Mac media player/computer, use the standard Mac adapter (3)—not
included.

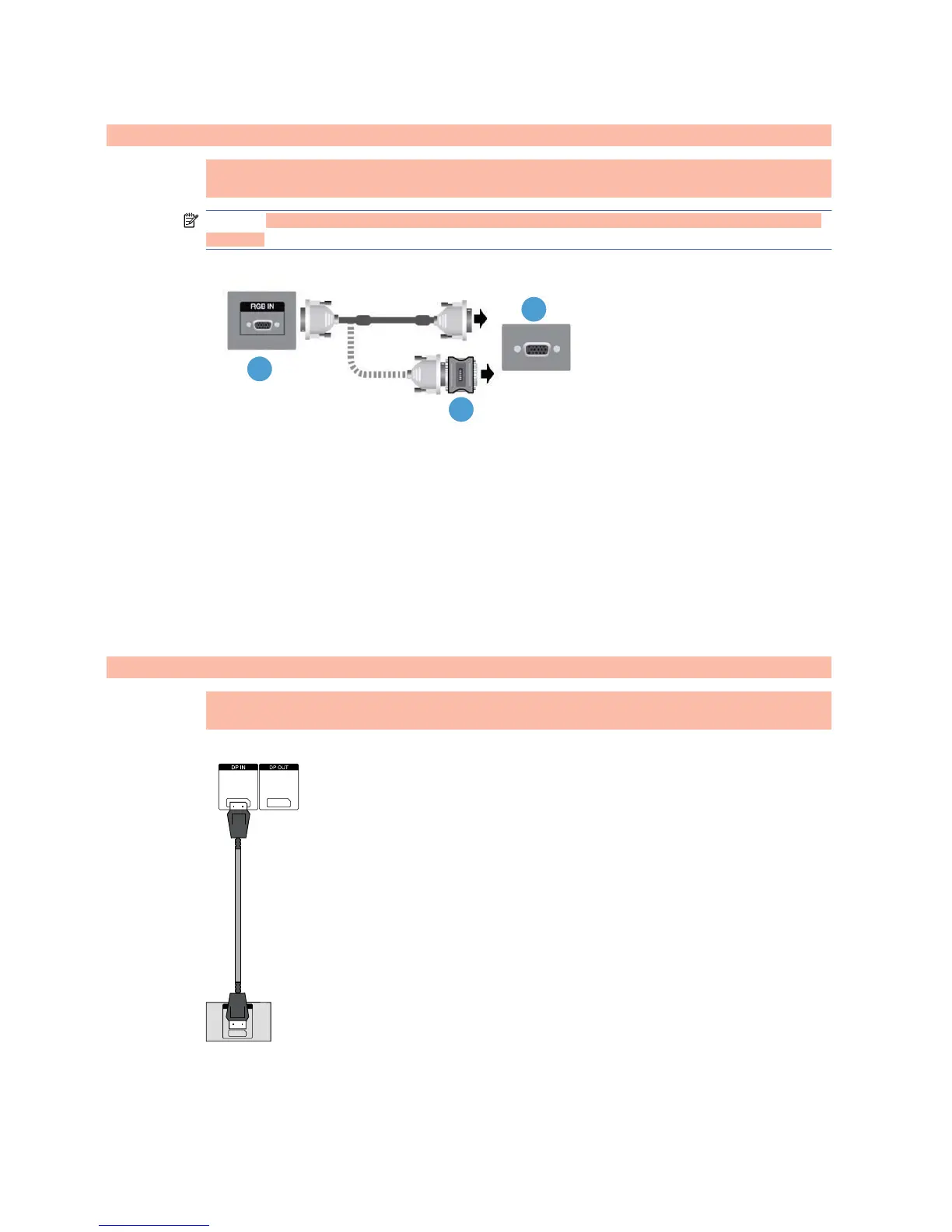

Figure 3-18 Connecting the D-Sub signal cable
1
2
3
2. Connect the audio cable (sold separately) to the Audio (RGB/DVI) (1) connector on the rear of
the display and the other end to the Line Out port (2) on the media player/computer if the video
signal connection is from either a RGB (VGA) or DVI connector on the media player/computer.
3. Select an input signal.
Press the INPUT button on the remote control, select the RGB input signal, and then press the
OK button to save.
Or, press the SOURCE button on the back of the display, select the RGB input signal, and then
press the AUTO/SET button to save.
Connecting DisplayPort (480p/576p/720p/1080i/1080p)
1. Connect the DisplayPort cable to the DP IN port on the display and to the DisplayPort OUT port
on the media player/computer, and then connect the power cord.
Figure 3-19 Connecting DisplayPort input to a media player/computer
2. Select an input signal.
20 Chapter 3 Setting up the display ENWW
