Identifying display components

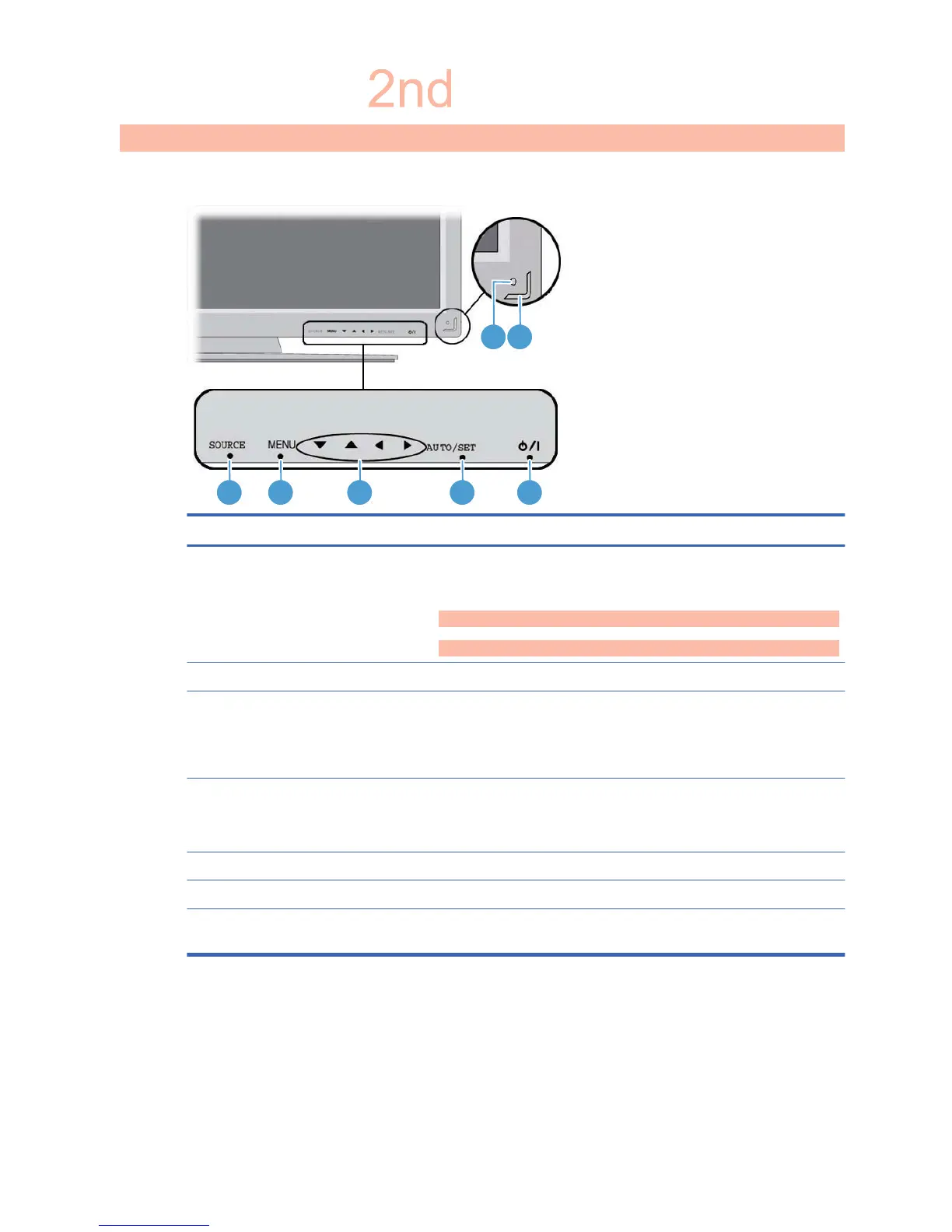

Figure 3-12 Display components[Author note:]Update graphic —need new front and back
component graphics with callouts.
1 2 3 4 5
76
Component Function
1 SOURCE Toggles between video inputs:
ł HDMI/DVI - Digital signal
ł
RGB - 15-pin D-Sub analog signal
ł
DisplayPort
2 MENU Opens or closes the OSD (On-Screen Display) menu screen.
3 OSD select/adjust buttons Selects an OSD menu icon or adjusts the settings in the OSD screen.
Down arrow and up arrow buttons adjust up and down
Left arrow and right arrow buttons adjust the volume
4 AUTO/SET When the OSD window is closed, the auto-adjustment feature to optimize the
screen image is activated.
When the OSD window is open, press to select a menu item or save changes.
5 Power Press to turn on the power. Press again to turn it off.
6 IR receiver Receives signals from the remote control.
7 LED indicator light Lights up blue when the display operates normally (on mode). If the display is in
sleep (Energy Saving) mode, the indicator color changes to amber.
