3.
After insta
lling the
speakers, use the ca
ble holders
and cable ties (a
vailable
on select model
s) to
organize
the spe
aker c
ables.

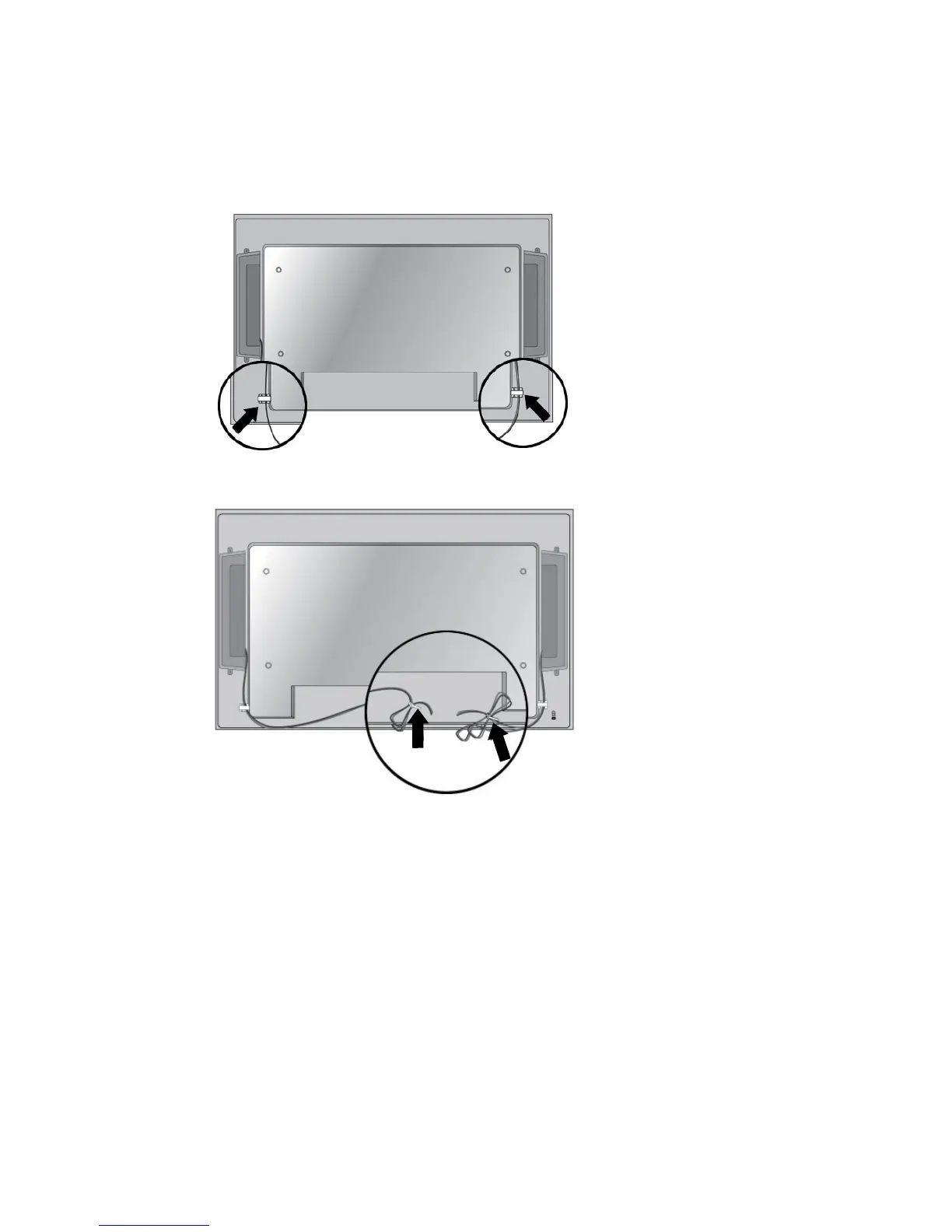

Figu
re 3
-6
Using the cable holder
s (feature avail
able on selec
t models)
Figu
re 3
-7
Using
the cabl
e ties (fea
ture ava
ilable on
select
models)
10
Chapter
3 Set
ting up th
e displa
y
ENWW
2
n
d
D
r
af
t
22
24
Table of Contents
About this Guide
4
Table of Contents
6
Product Features
14
HP Digital Signage Models
14
Accessories
15
Optional Accessories
15
Safety and Maintenance Guidelines
16
Important Safety Information
16
Maintenance Guidelines
17
Cleaning the Display
18
Shipping the Display
18
Setting up the Display
20
Installing the Stand (Sold Separately)
20
Connecting the Speakers (Sold Separately)
22
Rotating to the Portrait Position
24
Using the Remote Control
25
Inserting the Batteries (Sold Separately)
25
Identifying Remote Control Buttons
26
Identifying Display Components
28
VESA Mounting Support and Security Slot
30
Connecting to External Devices
31
Connecting RGB
33
Connecting Displayport (480P/576P/720P/1080I/1080P)
33
Connecting HDMI (480P/576P/720P/1080I/1080P)
34
Connecting LAN (HP LD4210 and HP LD4710 Only)
35
Connecting Daisy Chain Displays
37
Operating the Display
40
Software and Utilities
40
The Information File
40
The Image Color Matching File
40
Installing the .INF and .ICM Files
41
Installing from the CD
41
Downloading from the Web
41
Using the Auto-Adjustment Function (RGB INPUT Source Only)
42
Using the On-Screen Display Menu
43
Using the Remote Control to Adjust the OSD
43
OSD Menu Selections
44
Selecting an Aspect Ratio
50
Adjusting the Timer Function
50
Clock
51
On Time and off Time
51
Sleep Timer
51
Auto off
52
Power on Delay
52
Using Key Lock
52
Using ISM Method
53
Using Tile Mode
53
Using the HP Media Sign Player
54
Using Photo List
56
Using Music List
57
Using Movie List
58
Installing HP Network Sign Manager
60
Signage Display
61
System Requirements
62
Features
63
Environment Setup
64
Connecting a Display Via LAN or WAN
64
Setting IP Address to the Network Display
64
Connecting a Display Via RS-232-C Serial Port
65
HP Network Sign Manager Installation
66
Installing HP Network Sign Manager
66
Removing HP Network Sign Manager
66
Quick Overview
67
Home Screen
67
Toolbar
67
Control Tab
68
Log-In
69
Connection Settings
70
Ethernet Communication Settings
70
Serial Communication Settings
70
Display Registration
71
Registering a Networked Display
71
Registering a Display Via Serial Communication
72
Display and Group Management
73
Making a Group
73
Adding a Display to Group
73
Viewing Group Information
73
Deleting a Group
74
Deleting a Display from a Group
74
Deleting a Display
74
Adding a Tag to a Display
74
Display Configuration
75
Viewing Information
75
Display
75
IP Configuration
75
Status
75
Diagnosis
76
Controlling a Display
76
Power
76
Select Input
76
Volume
76
Screen Mute
77
Volume Mute
77
OSD Select
77
Configuring Audio/Video Settings
77
Picture Mode
77
Backlight
77
Contrast
77
Brightness
77
Color
77
Sharpness
78
Color Temperature (White Balance)
78
Auto Config
78
Sound Mode
78
Auto Volume
78
Balance
78
Speaker
78
Setting Screen Options
78
Aspect Ratio
78
ISM Method
78
Power Indicator
79
DDC-CI
79
Dfc
79
DPM Select
79
Remote/Key Lock
79
Sleep Timer
79
Auto off
79
Power on Delay
79
Energy Saving
80
Factory Reset
80
Scheduling
80
Clock
80
Time Schedule Setting
80
On/Off Time Schedule Info
80
Saving and Loading Display Configuration
81
Saving Display Configuration
81
Loading Display Configuration
81
Tile Mode
82
Creating a Tile Mode
82
Modifying a Tile Mode
82
Schedule and Playback Contents (USB)
83
Scheduling the Playback of Files
83
USB Schedule
83
Saving Files in the USB Device
84
Scheduling the Playback of Files
84
USB Export
85
Exporting to USB
85
Saving Files and the Playback Schedules in the USB Device
85
Toolbar
87
Search
87
Setting
87
Ethernet Network
87
RS-232C Serial Communication
87
Connect
87
Refresh
88
Message
88
Alarm
89
Security
89
Help
90
Log History
91
Log Data
91
Log File Name and Location
91
Upgrade
92
Appendix A Troubleshooting
94
Solving Common Problems
94
Using the Web
96
Preparing to Call Technical Support
96
Appendix B Technical Specifications
98
HP Digital Signage Display
98
HP LD4201 and HP LD4210 Dimensions
101
HP LD4710 Dimensions
102
Recognizing Preset Display Resolutions
103
Preset Display Modes
103
DTV Mode
103
Power Indicator
104
Appendix C Command Reference
106
Connecting the Cable
106
RS-232-C Configurations
106
Communication Parameter
107
Command Reference List
107
Transmission/Receiving Protocol
109
Power (Command : A)
110
Input Select (Command : B) (Main Picture Input)
110
Aspect Ratio (Command : C) (Main Picture Format)
111
Screen Mute (Command : D)
112
Volume Mute (Command : E)
112
Volume Control (Command : F)
113
Contrast (Command : G)
114
Brightness (Command : H)
114
Color (Command : I) (Video Timing Only)
115
Tint (Command : J) (Video Timing Only)
116
Sharpness (Command : K) (Video Timing Only)
117
OSD Select (Command : L)
118
Remote Lock /Key Lock (Command : M)
119
Balance (Command : T)
119
Color Temperature (Command : U)
120
Abnormal State (Command : Z)
120
ISM Mode (Command : J P)
121
Auto Configure (Command : J U)
121
Key (Command : M C)
122
Tile Mode (Command : D D)
122
Tile H Position (Command : D E)
123
Tile V Position (Command : D F)
123
Tile H Size (Command : D G)
123
Tile V Size (Command : D H)
124
Tile ID Set (Command : D I)
125
Natural Mode (in Tile Mode) (Command : D J)
125
Picture Mode (Command : D X)
126
Sound Mode (Command : D y )
126
Fan Fault Check (Command : D W )
127
Elapsed Time Return (Command : D L)
127
Temperature Value (Command : D N)
128
Lamp Fault Check (Command : D P)
128
Auto Volume (Command : D U)
129
Speaker (Command : D V)
129
Time (Command : F A)
130
On Timer (On/Off Timer) Time (Command : F D)
130
Off Timer (On/Off Timer) Time (Command : F E)
131
Scheduling Input Select (Command : F U) (Main Picture Input)
133
Sleep Time (Command : F F)
134
Auto Sleep (Command : F G)
134
Power on Delay (Command : F H)
135
Language (Command : F I)
135
DPM Select (Command : F J)
136
Reset (Command : F K)
136
Power Saving(Command : F I)
137
Power Indicator (Command : F O)
137
Serial No. Check (Command : F Y)
138
S/W Version (Command : F Z)
138
Input Select (Command : X B)
138
IR Codes
139
Remote Control IR Code
139
Output Waveform
139
Configuration of Frame
140
Lead Code
140
Repeat Code
140
Bit Description
140
Frame Interval: Tf
140
IR Codes Table
141
Appendix D Agency Regulatory Notices
144
Federal Communications Commission Notice
144
Modifications
144
Cables
144
Declaration of Conformity for Products Marked with the FCC Logo (United States Only)
145
Canadian Notice
145
Avis Canadien
145
European Union Regulatory Notice
145
German Ergonomics Notice
146
Japanese Notice
146
Korean Notice
146
Power Cord Set Requirements
147
Chemical Substances
148
Turkey EEE Regulation
149
Fcc Compliance Statement
150
Canadian Doc Notice
150
