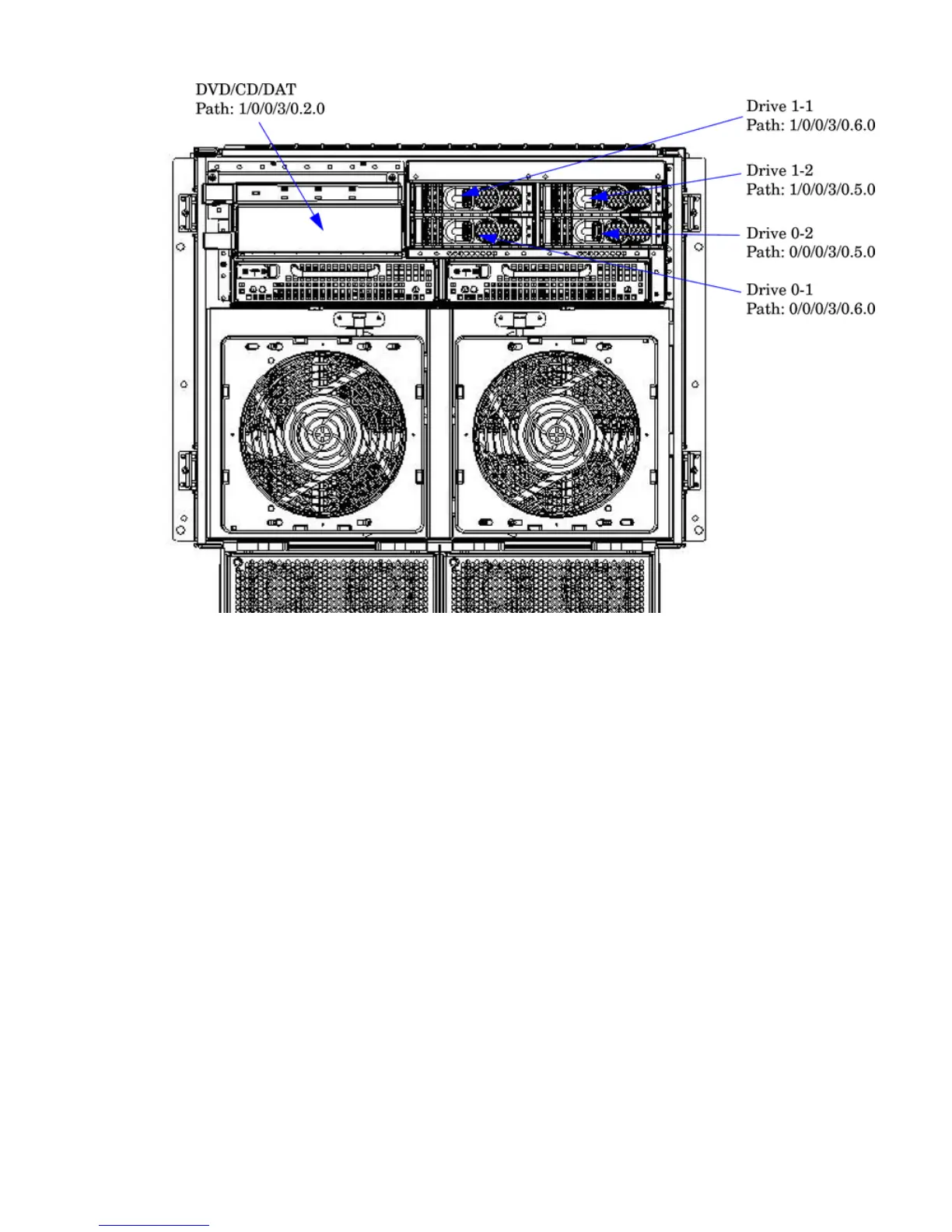

Figure 1-10 Internal Disks
MP/SCSI MP Core I/O Board
The HP 9000 rp7420 server accommodates two sets of MP Core I/O functionality. Each MP/SCSI
core I/O board set consists of a MP/SCSI board and a Procurium LAN/SCSI board. At least one
MP/SCSI board is required (independent of partitions). An additional MP/SCSI board can be
added as well (and is required in a dual partition system). Both MP/SCSI boards are oriented
vertically and plug into the system backplane. The MP/SCSI board incorporates a dual channel
Ultra160 SCSI controller.
Procurium LAN/SCSI Board
At least one Procurium LAN/SCSI board is required for the minimum system configuration; two
are required in a dual partition system. The Procurium board is a standard PCI form factor card
with PCI card edge connectors. The PCI-X backplane has one slot location reserved for the
required Procurium board and another that can accommodate either a Procurium board or any
other supported add-in PCI-X card. The Procurium board is hot-pluggable.
Mass Storage (Disk) Backplane
Internal mass storage connections (to disks) are routed on the mass storage backplane, having
connectors and termination circuitry. All disks are hot-pluggable. The HP 9000 rp7420 server
accommodates one internal, removable media device. Therefore, only one power connector for
a removable media device is required on the mass storage backplane. The mass storage backplane
incorporates a circuit that enables power to the internal removable media device to be
programmatically cycled.
Detailed HP 9000 rp7420 Server Description 27
