Table 6-1 Front Smart Fan Assembly LED Indications
DescriptionLED State
Fan is at speed and in sync or not at speed less than six secondsOn Green
Fan is not keeping up with speed/sync pulse for greater than six secondsFlashing
Yellow
Fan failed or stalled or has run slow or fast for greater than six secondsFlashing Red
Fan is not installed or no power is applied to fanOff
Removing a Front Smart Fan Assembly

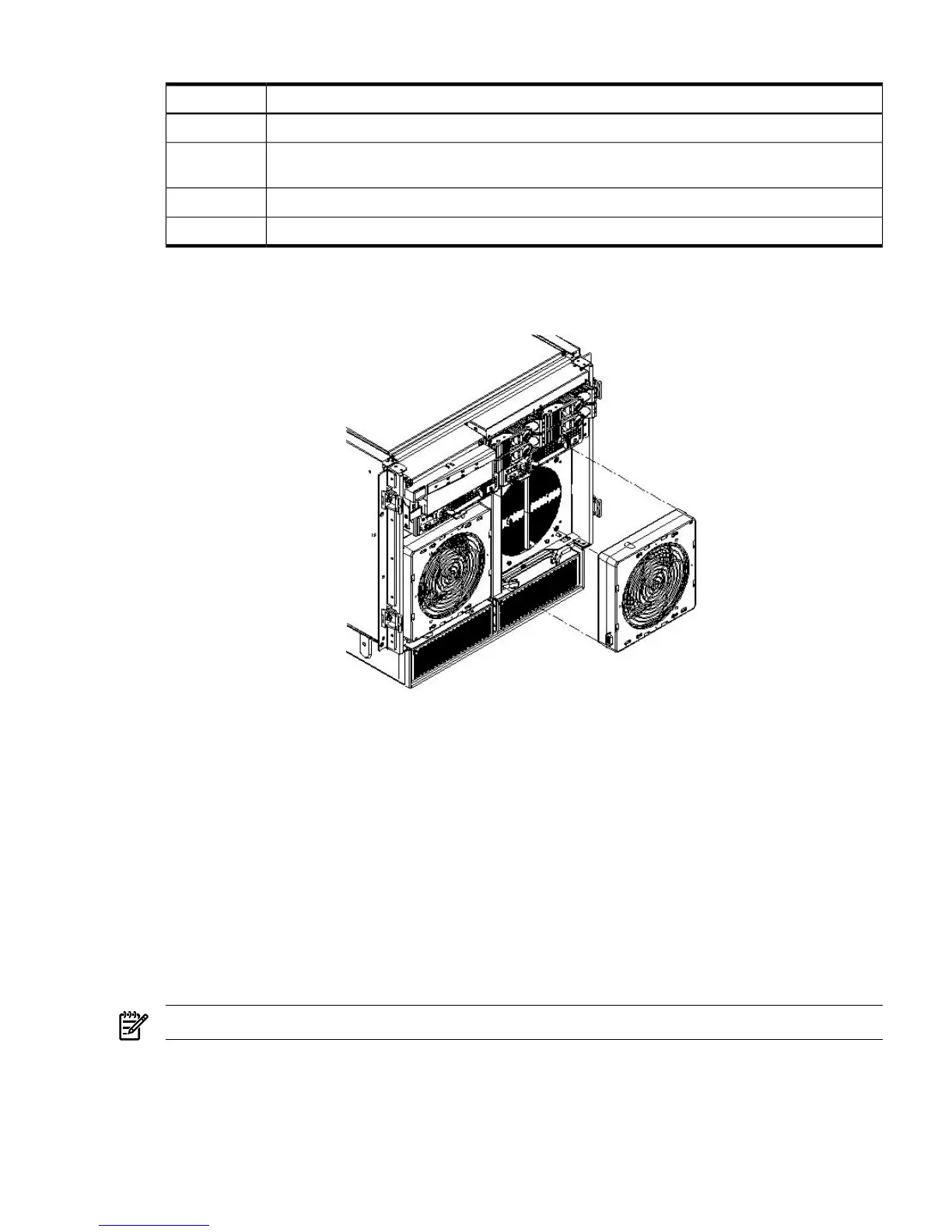

Figure 6-11 Front Fan Detail
To remove a front smart fan assembly, follow these steps:
1. Remove the front bezel.
2. Push the fan release pin away from the fan.
3. Slide the fan away from the connector.
4. Pull the fan away from the chassis.
Replacing a Front Smart Fan Assembly
To replace a front smart fan assembly, follow these steps:
1. Position the fan assembly on the chassis fan guide pins.
2. Slide the fan into the connector.
3. Verify that the fan release pin is in the locked position.
4. Replace the front bezel.
NOTE: A green LED indicates the fan is operational.
Removing and Replacing a Rear Smart Fan Assembly
The rear smart fan assembly is located in the rear of the chassis. The fan assembly is a
hot-swappable component.
Removing and Replacing a Rear Smart Fan Assembly 93
