Removing a Rear Smart Fan Assembly

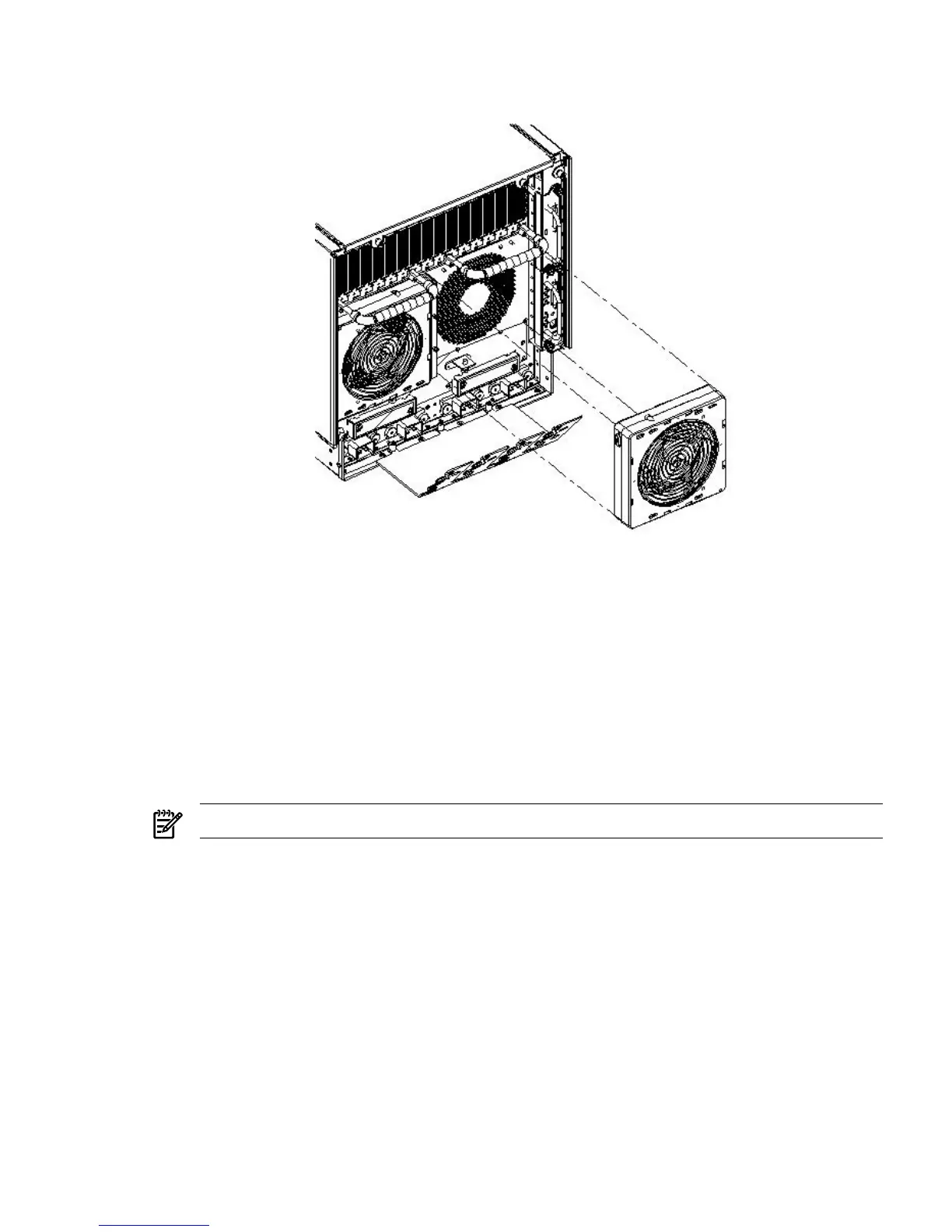

Figure 6-13 Rear Fan Detail
To remove a smart fan assembly, follow these steps:
1. Push the fan release pin away from the fan.
2. Slide the fan away from the connector.
3. Pull the fan away from the chassis.
Replacing a Rear Smart Fan Assembly
To replace a smart fan assembly, follow these steps:
1. Carefully position the fan assembly on the chassis fan guide pins.
2. Slide the fan into the connector.
3. Verify that the fan release pin is in the locked position.
NOTE: A green fan LED indicates the fan is operational.
Removing and Replacing a PCI-X Smart Fan Assembly
The PCI-X smart fan assembly is located at the front of the PCI card cage, toward the middle top
portion of the server. The fan assembly is a hot swappable component.
Removing and Replacing a PCI-X Smart Fan Assembly 95
