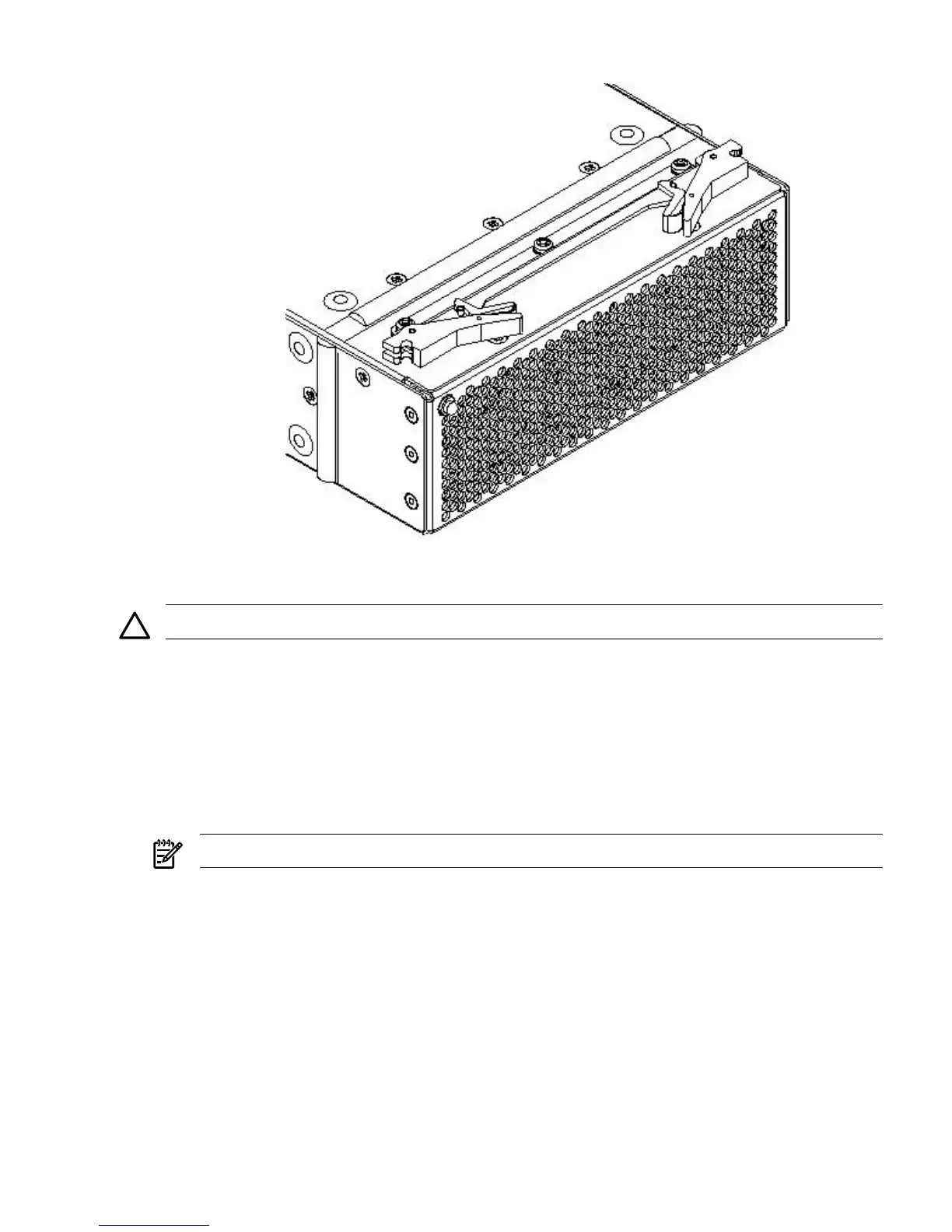

Figure 6-18 Extraction Levers
3. Slide the BPS forward using the extractions levers to remove it from the chassis.
CAUTION: Use caution when handling the BPS. A BPS weighs 18 lb.
Replacing a BPS
To replace a BPS, follow these steps:
1. Verify that the extraction levers are in the open position, then insert the BPS into the empty
slot. The BPS easily slides into the chassis.
2. To properly seat the connection, use a slow, firm pressure.
3. Ensure the BPS has seated by closing the extraction levers.
4. Replace the front bezel.
NOTE: A green BPS LED indicates the BPS is operational.
Removing and Replacing a PCI Power Module
The PCI power module is located in the front of the chassis. You must turn off system power to
replace this CRU. See “Powering Off Hardware Components and Powering On the Server”
(page 84).
Removing and Replacing a PCI Power Module 99
