3. To secure the cover to the chassis, tighten the retaining screw.
Removing and Replacing a Disk Drive
The disk drives are located in the front of the chassis. The nPartition must be shut down to remove
or replace the drive that serves as the boot disk, if the boot disk is not mirrored. See “Powering
Off Hardware Components and Powering On the Server” (page 84) for more information. The
remainder of the internal disk drives are hot-pluggable.
CAUTION: Observe all ESD safety precautions before attempting this procedure. Failure to
follow ESD safety precautions can result in damage to the server.

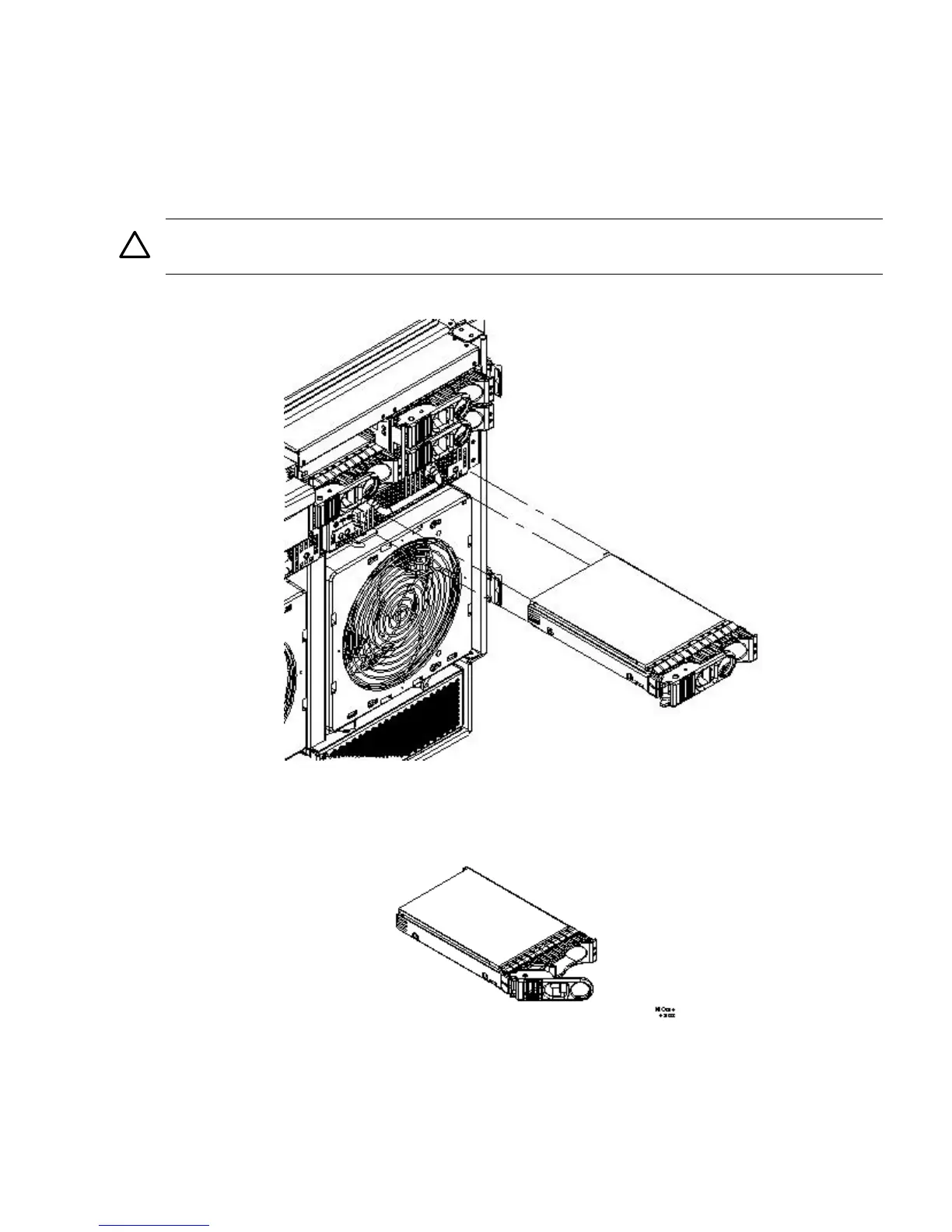

Figure 6-6 Disk Drive Location
Removing a Disk Drive
Figure 6-7 Disk Drive Detail
To remove a disk drive, follow these steps:
1. Disengage the front locking latch on the disk drive by pushing the release tab to the right
and the latch lever to the left.
2. Pull forward on the front locking latch and carefully slide the disk drive from the chassis.
Removing and Replacing a Disk Drive 89
