Table 5-2 Front Panel LEDs
DescriptionStateDriven ByLED
48 V good (LED works even if MP is not installed, or
installed and not active)
On GreenGPM
1
Power
48 V offOff
3.3 V standby good (LED works even if MP is not installed,
or installed and is not active)
On GreenGPMStandby Power
3.3 V standby offOff
At least one MP is installed and activeOn GreenGPMMP Present
No MPs are installed or at least one is installed but not
active
Off
Dial-in (remote) console enabledOn GreenMP through
GPM
Remote
Dial-in (remote) console is disabled, or MP is not installed,
or MP is installed and not active
Off
Chassis log alert unreadFlash YellowMP through
GPM
Attention
No alert, or MP is not installed, or MP installed and is not
active
Off
One or more partitions runningOn GreenPDC/MP
through GPM
Run
No partition running, or MP is not installed, or MP is
installed and not active
Off
One or more partitions have reported a faultFlash RedPDC/MP
through GPM
Fault
No partitions running, or the MP is not installed, or the
MP is installed and not active
Off
1 GPM stands for global power monitor
Bulk Power Supply LEDs
There is a single three-color LED on each BPS.

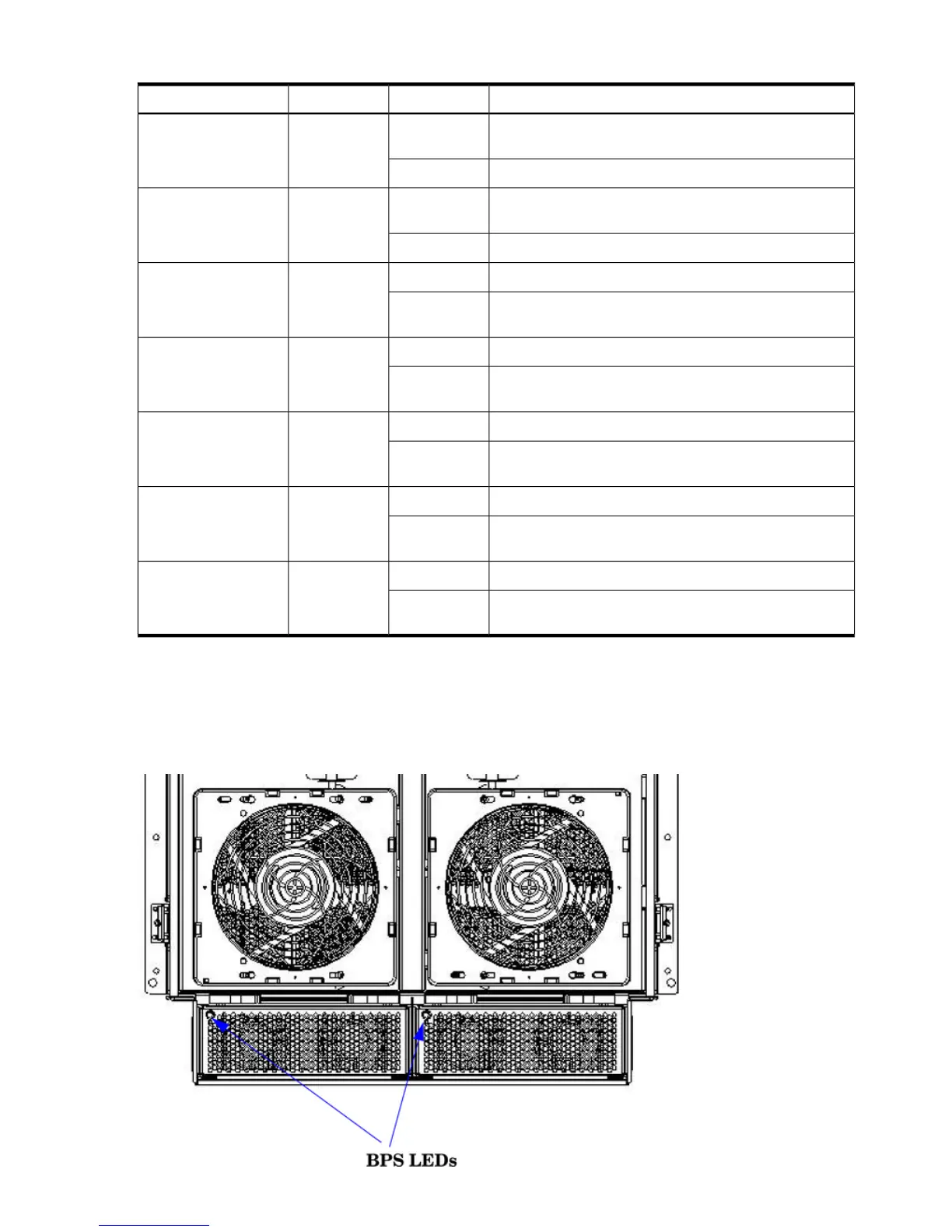

Figure 5-3 BPS LED Locations
