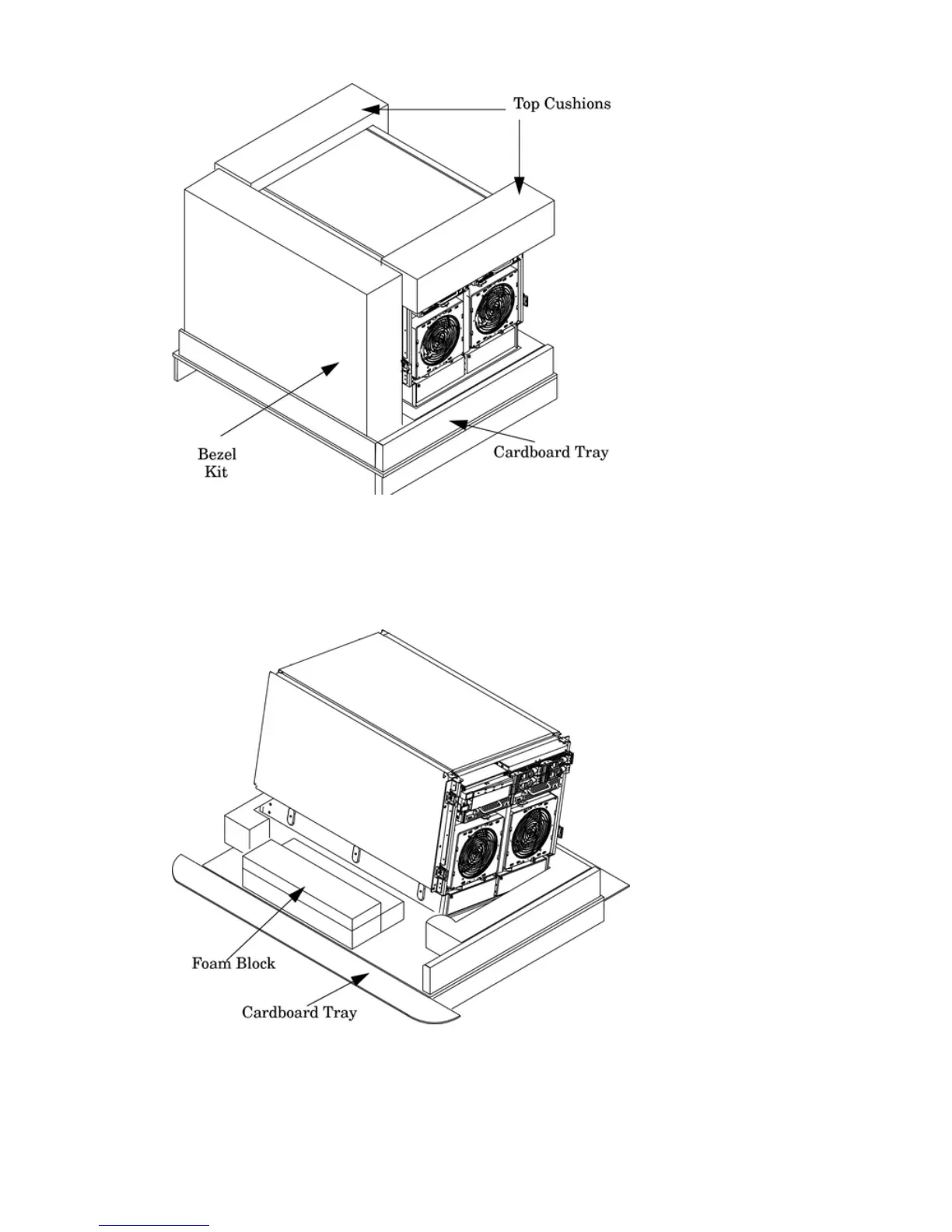

Figure 3-1 Component Locations
4. Unfold the bottom cardboard tray.
5. Carefully tilt the server and place one of the foam blocks (A6093-44002) under the left side
of the server. Do not remove any other cushions until instructed to do so.
Figure 3-2 Left Foam Block Position
6. Carefully tilt the server and place the other foam block provided in the kit under the right
side of the server.
42 Installing Accessories
