CAUTION: Observe all ESD safety precautions before attempting this procedure. Failure to
follow ESD safety precautions can result in damage to the server.

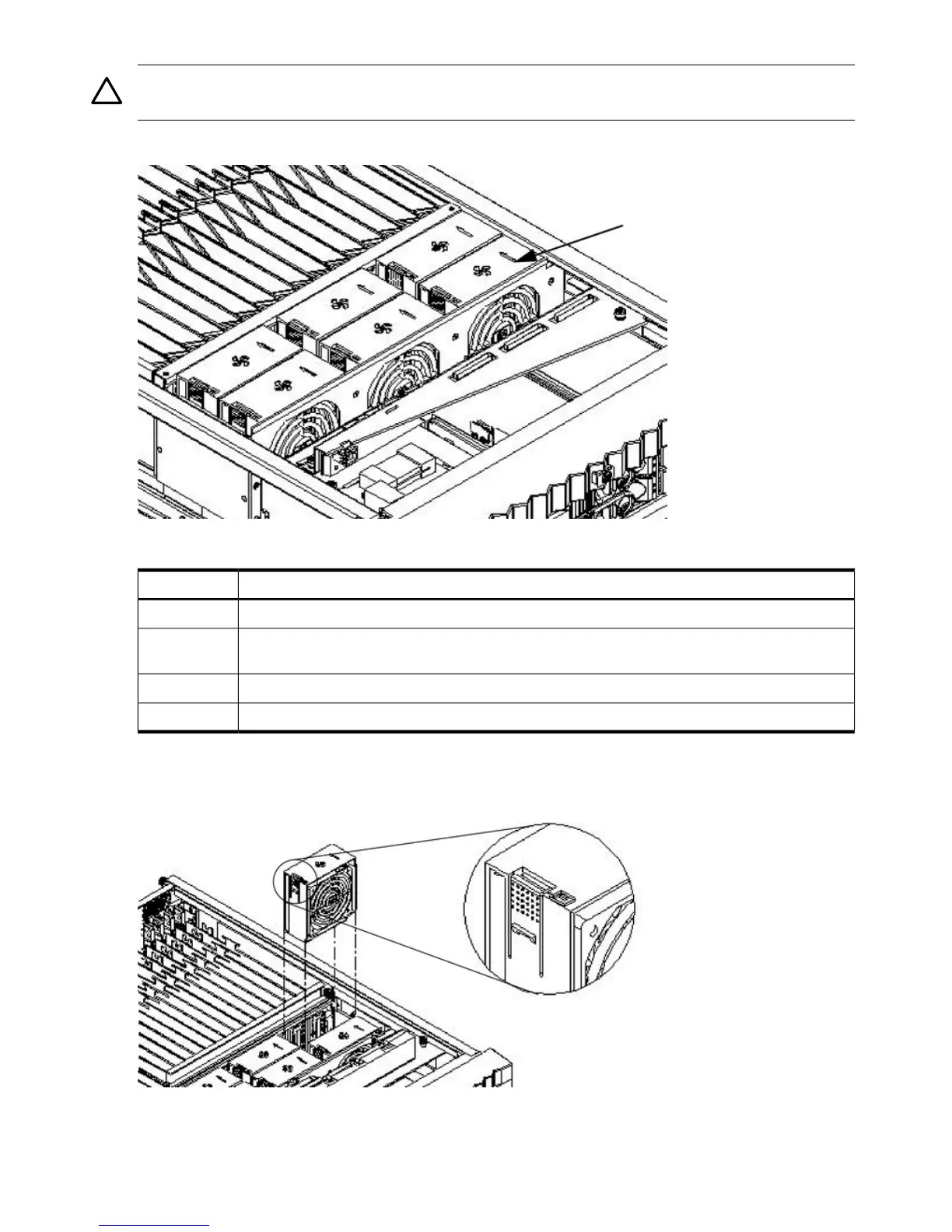

Figure 6-14 PCI-X Smart Fan Assembly Location
Table 6-3 Smart Fan Assembly LED Indications
DescriptionLED State
Fan is at speed and in sync or not at speed less than six secondsOn Green
Fan is not keeping up with speed/sync pulse for greater than six secondsFlashing
Yellow
Fan failed or stalled or has run slow or fast for greater than six secondsFlashing Red
Fan is not installed or no power is applied to fanOff
Removing a PCI-X Smart Fan Assembly
Figure 6-15 PCI-X Smart Fan Assembly Detail
To remove a PCI-X smart fan assembly, follow these steps:
1. Remove the top cover.
96 Removing and Replacing Server Components
